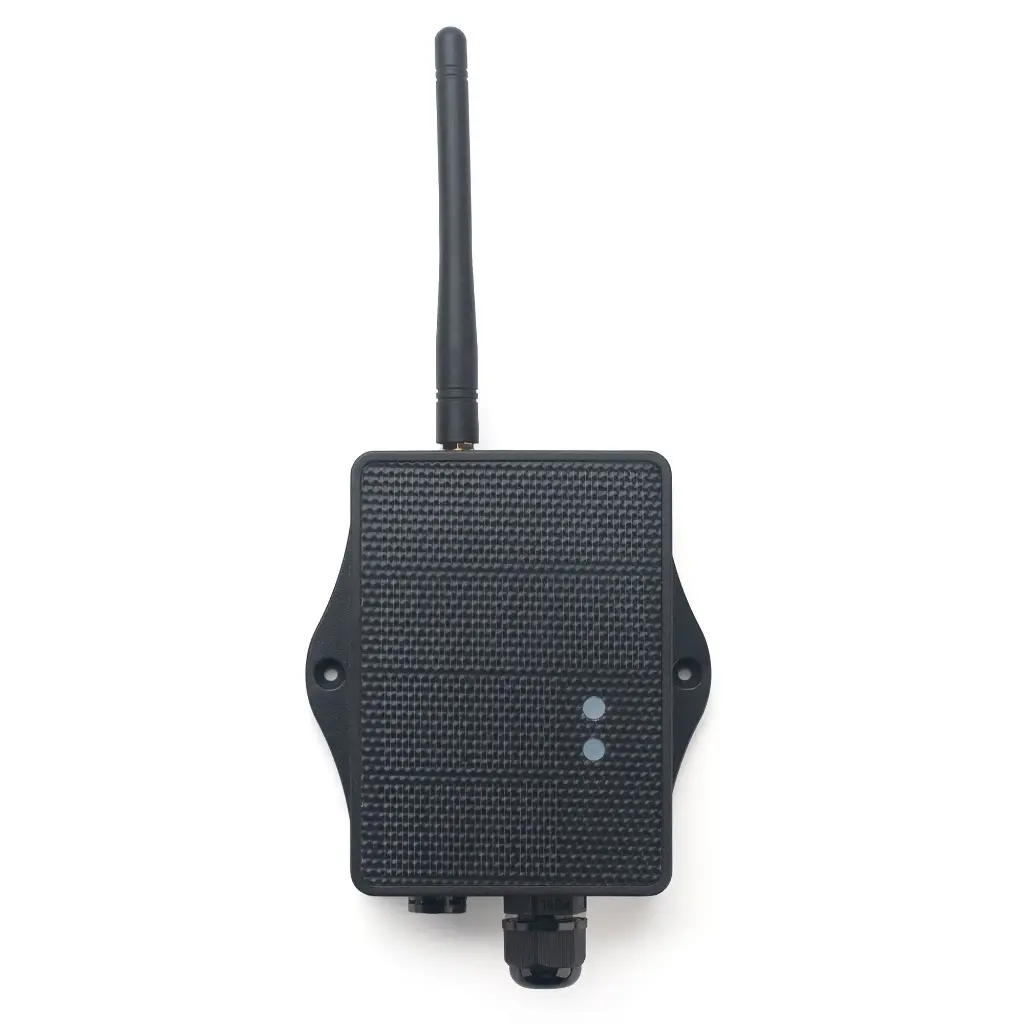

SDI-12-LS SDI12 to LoRaWAN Converter
6 Units sold in last 24 hours
The SDI-12-LS is a LoRaWAN-based SDI-12 to wireless converter designed for smart agriculture and environmental monitoring. It connects to SDI-12 sensors (used in weather stations and soil monitoring) to collect data and transmit it over LoRaWAN v1.0.3 Class A networks for long-range, low-power communication.
Equipped with controllable 5V and 12V outputs to power external sensors, the device supports BLE configuration, wireless OTA firmware updates, and battery level monitoring. Powered by a solar panel with a 3000 mAh Li-ion battery, it ensures multi-year autonomous operation.
Key Specifications:
LoRaWAN v1.0.3 Class A | Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
Interfaces: SDI-12 Protocol (connects to multiple environmental sensors)
Output Power: 5V (300mA), 12V (100mA)
Input Measurement: Voltage (0–30V, ±0.02V) | Current (0–20mA, ±0.02mA)
MCU: 48 MHz ARM | Flash: 256 KB | RAM: 64 KB
Power: Solar + 3000 mAh Li-ion battery (SDI-12-LS) / 8500 mAh Li-SOCl₂ (SDI-12-LB)
Operating Temperature: –40 ~ 85 °C
BLE v5.1 configuration & OTA firmware updates
IP-rated enclosure for outdoor deployment
Device Size: 19.5 × 12.5 × 5.5 cm | Weight: 0.42 kg
Applications: Smart Agriculture • Environmental Monitoring • Irrigation Control
