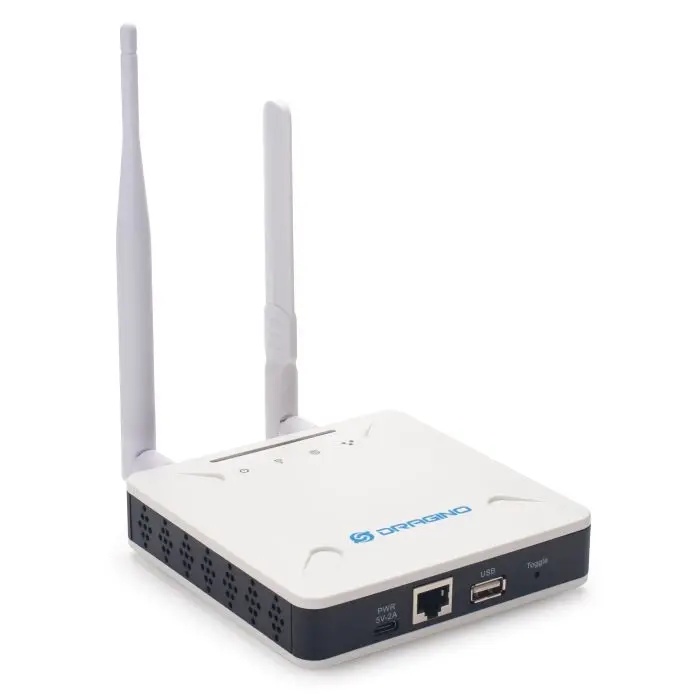

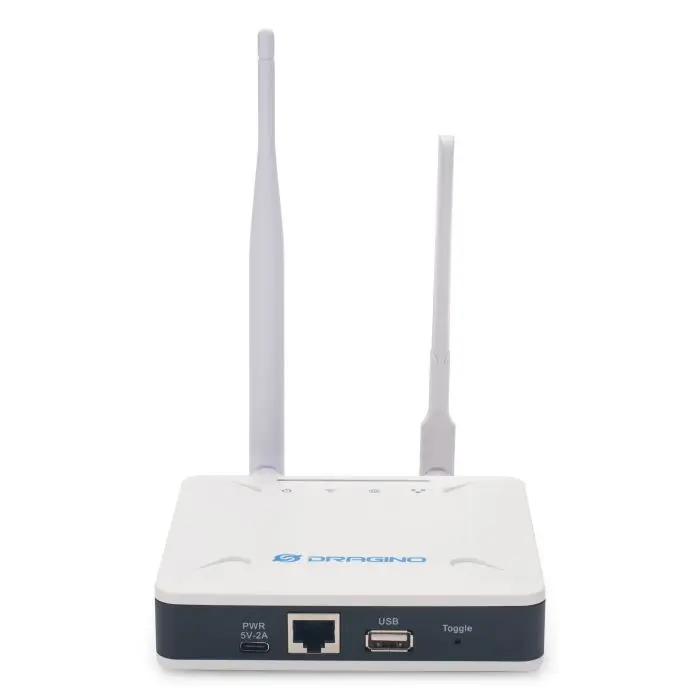

LPS8N-EC25 Indoor LoRaWAN Gateway

The Dragino LPS8N-EC25 is an open-source indoor LoRaWAN® gateway designed to bridge LoRa wireless networks to IP networks via WiFi, Ethernet, or Cellular (3G/4G LTE). It provides long-range, low-power communication and is fully compatible with the LoRaWAN protocol through Semtech UDP Packet Forwarder and LoRaWAN Station modes.

Equipped with the SX1302 LoRaWAN concentrator, the LPS8N-EC25 supports 10 parallel demodulation paths, enabling high-capacity message handling. The gateway comes with pre-configured regional frequency bands, which can be modified for custom private LoRa networks.

Additionally, the LPS8N-EC25 can communicate directly with ABP LoRaWAN end nodes without requiring a LoRaWAN server, making it ideal for private IoT deployments. With an OpenWrt platform, Remote.it remote management, and web-based configuration, the gateway is highly flexible and easy to maintain.

Specifications:

1. LoRa Radio: 1× SX1302 + 2× SX1250 LoRa transceivers

2. Connectivity: Ethernet, WiFi 2.4 GHz (802.11 b/g/n), USB host, 4G EC25 module

3. Power Options: USB Type-C (5V, 2A)

4. OS / Management: OpenWrt system, Web GUI, SSH, Remote.it support

5. Demodulation: 10 programmable parallel LoRa demodulation paths

Applications:

Smart buildings, logistics, meter reading, agriculture, smart cities, industrial IoT, and automation systems

USER MANUAL:

LPS8N-EC25_User_Manual

DATA SHEET:

LPS8N-EC25_Datasheet

FIRMWARE:

LPS8N-EC25_Firmware
