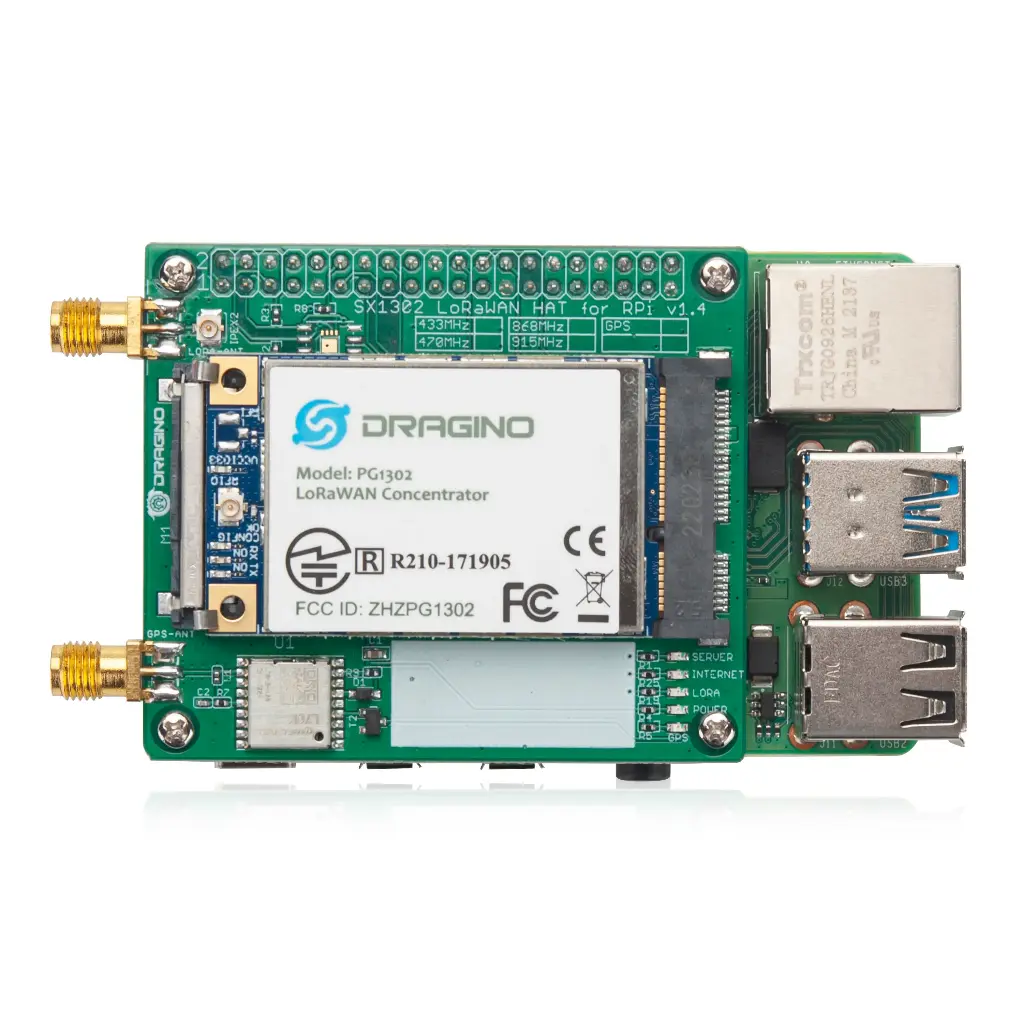

PG1302-RPI Multi-Channel LoRaWAN Concentrator

The PG1302-RPI is a high-performance, multi-channel LoRaWAN® concentrator based on the Semtech SX1302 chipset, designed specifically for Raspberry Pi 3B/3B+/4. It enables simultaneous reception of multiple LoRa packets across different channels and spreading factors, making it ideal for building scalable LoRaWAN gateways capable of supporting up to 5,000 nodes per km² in moderately interfered environments.

With Dragino’s pre-built OS or native driver support, PG1302-RPI allows fast deployment for smart metering and IoT network applications.

Key Specifications

• Chipset: Semtech SX1302

• Platform Support: Raspberry Pi 3B / 3B+ / 4

• Sensitivity: Up to –140 dBm

• Interface: Mini-PCIe, SPI (LoRa)

• RF Connector: 1 × I-PEX

• Power Input: 5V, 1A

• Logic Levels: Supports 3.3V & 5V

• Operating Temperature: –40 °C to +80 °C

• Dimensions: 18 × 8 × 4 cm

• Weight: 150 g

Applications

LoRaWAN gateways, smart metering networks, large-scale IoT deployments, smart cities, industrial IoT, and research or prototyping environments using Raspberry Pi.

USER MANUAL:

PG1302_User_Manual

DATA SHEET:

PG1302_Datasheet
