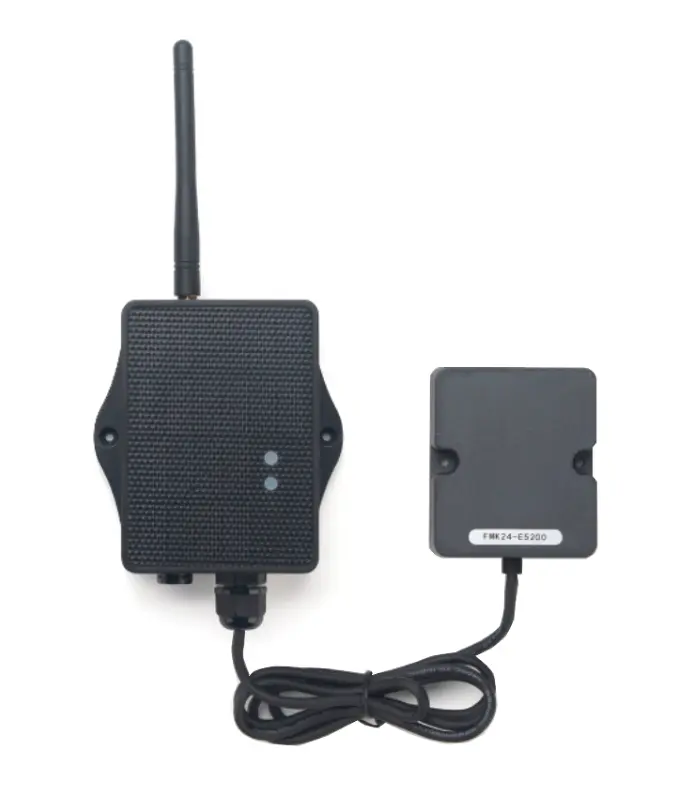

MDS200-LS LoRaWAN Microwave Radar Sensor

The Dragino MDS200-LS is a 24 GHz LoRaWAN microwave radar distance sensor designed for reliable long-range distance measurement in challenging environments. Using microwave radar technology, it delivers accurate readings even in dusty, humid, or condensation-heavy conditions, where ultrasonic or LiDAR sensors may fail. The sensor can detect two distances simultaneously—the nearest object and the next object behind it—making it ideal for advanced monitoring and control applications. It is powered by a solar panel with a Li-ion battery, enabling long-term, maintenance-free outdoor operation.

Key Specifications:

• Sensing Technology: 24 GHz FMCW Microwave Radar

• Measurement Range: 0.5 m – 20 m

• Accuracy: ±0.1 m

• Resolution: 0.01 m

• Detection Angle: 78° (Horizontal), 23° (Vertical)

• Protocol: LoRaWAN v1.0.3 Class A

• Power Supply: Solar panel + 3000 mAh Li-ion battery

• Key Functions: Dual-object detection, alarm-triggered uplink, BLE configuration, wireless OTA firmware update, battery monitoring

Applications:

Liquid level monitoring, parking management systems, object proximity and presence detection, intelligent waste management, robot obstacle avoidance, automated control systems, sewer monitoring, and bottom water-level measurement.

USER MANUAL:

MDS200-LS_Data_Manual

DATA SHEET:

MDS200-LS_Datasheet

FIRMWARE:

MDS200-LS_Firmware
