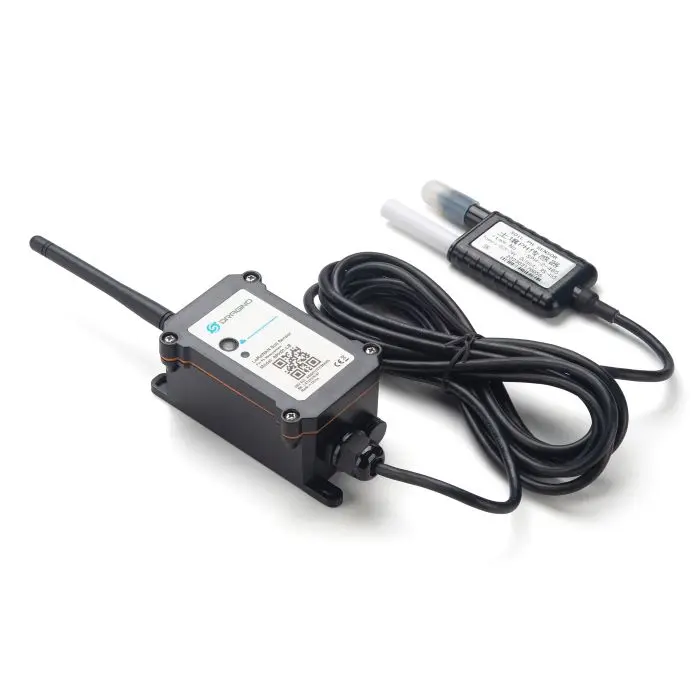

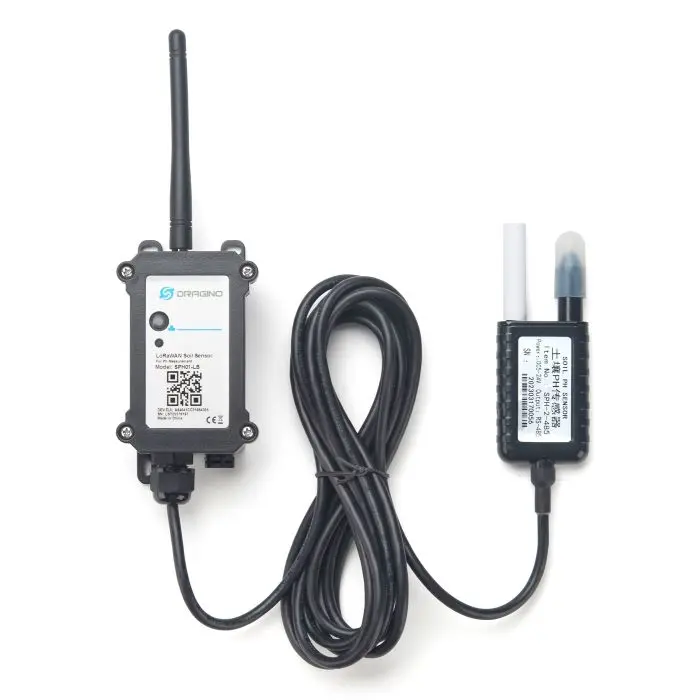

Dragino SPH01-LB LoRaWAN Soil pH Sensor

https://www.aiotkart.com/web/image/product.template/17772/image_1920?unique=8f7502d

Dragino SPH01-LB is a LoRaWAN® soil pH sensor designed for smart agriculture and remote soil-condition monitoring. It measures soil pH from 3 to 10 pH with 0.01 pH resolution and temperature compensation, while also monitoring soil temperature for more reliable field analysis. The sensor uses a solid AgCl reference electrode and pure-metal pH-sensitive electrode with an IP68 waterproof probe suitable for long-term soil installation. The SPH01-LB supports LoRaWAN 1.0.3 Class A communication, user pH calibration, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. With an IP66 enclosure, 8500mAh Li-SOCl2 battery and IN865 frequency support, it is suitable for soil monitoring, precision agriculture and smart farming deployments in India.

₹ 17,200.00 17200.0 INR ₹ 17,200.00

₹ 17,200.00

Not Available For Sale

(₹ 0.00 / UNIT)
3 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Measures soil pH with temperature compensation
  • Measures soil temperature
  • High-precision solid AgCl reference electrode
  • IP68 waterproof soil probe (3.5m cable)
  • IP66 rated enclosure
  • 8500mAh Li/SOCl2 battery (long-life)
  • Ultra-low power consumption
  • User-supported pH calibration
  • Bluetooth v5.1 configuration
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware upgrade
  • Battery level monitoring

Electrical Characteristics

  • Power Supply: Built-in 8500mAh Li/SOCl2 battery
  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature: -40°C to 85°C
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Soil pH Measurement

  • Range: 3 ~ 10 pH
  • Resolution: 0.01 pH
  • Accuracy: ±2% (0~50°C; reduced accuracy below 0°C due to freezing)
  • Temperature Compensation Range: 0 ~ 50°C
  • Protection: IP68
  • Probe Cable Length: 3.5 meters

Soil Temperature Measurement

  • Range: -40°C ~ 85°C
  • Resolution: 0.1°C
  • Accuracy:
    • < ±0.5°C (-10°C ~ 40°C)
    • < ±0.8°C (others)
  • Protection: IP68
  • Probe Cable Length: 3.5 meters

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • Protocol: LoRaWAN® 1.0.3 Class A
  • Supported Bands: IN865

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm / 82mA @ 14dBm

Physical Specifications

  • Enclosure Protection: IP66
  • Probe Protection: IP68
  • Device Size: 195 × 125 × 55 mm
  • Weight: 420 g

The Dragino SPH01-LB is ideal for:

  • Smart Agriculture
  • Precision Farming
  • Soil Health Monitoring
  • Irrigation Optimization
  • Greenhouse Monitoring
  • Crop Research Projects
  • Fertilizer Management Systems

With the built-in 8500mAh Li/SOCl2 battery, SPH01-LB can operate for up to 5 years depending on transmission frequency.

Yes. The IP68-rated probe is designed for long-term underground installation.

Yes. Users can perform pH calibration to maintain measurement accuracy over time.

Documents

User Manual
Download

SPH01-LB_Datasheet

Download

SPH01-LB_Firmware

Download
