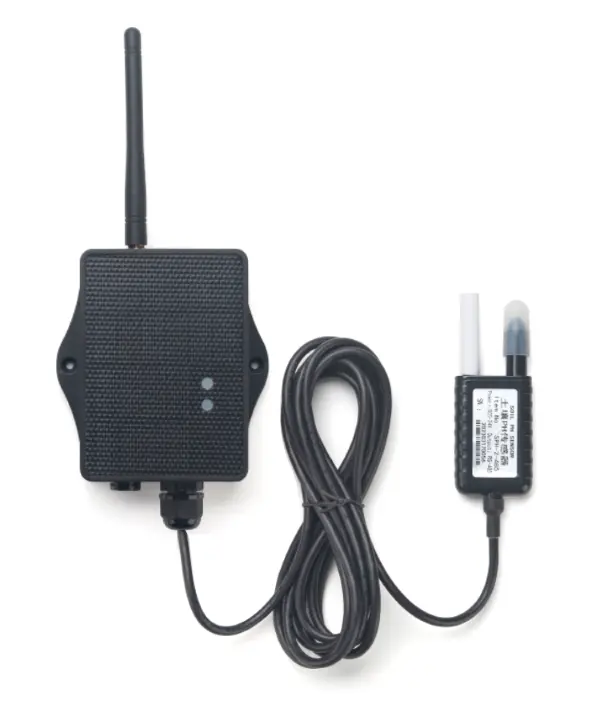

Dragino SPH01-LS Solar LoRaWAN Soil pH Sensor

https://www.aiotkart.com/web/image/product.template/17773/image_1920?unique=842b0b8
Dragino SPH01-LS is a solar-powered LoRaWAN® soil pH sensor designed for smart agriculture, precision farming and remote soil-condition monitoring. It measures soil pH with temperature compensation while also monitoring soil temperature and battery level, helping users track important soil conditions through a LoRaWAN IoT platform. The SPH01-LS supports LoRaWAN 1.0.3 Class A communication, user pH calibration, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by a solar panel with a 3000mAh rechargeable Li-ion battery and available with IN865 support, it is suitable for long-term agricultural and outdoor soil-monitoring deployments in India.

₹ 18,200.00 18200.0 INR ₹ 18,200.00

₹ 18,200.00

Not Available For Sale

(₹ 0.00 / UNIT)
6 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Solar-powered with 3000mAh rechargeable Li-ion battery
  • Measures soil pH with temperature compensation
  • Measures soil temperature
  • Solid AgCl reference electrode for stable readings
  • IP68 waterproof soil probe (3.5m cable)
  • IP66 waterproof enclosure
  • Ultra-low power consumption
  • User-supported pH calibration
  • Bluetooth v5.1 configuration support
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware update
  • Battery level monitoring

Electrical Characteristics

  • Power Supply: Solar panel + 3000mAh Li-ion rechargeable battery
  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature: -40°C to 85°C

Soil pH Measurement

  • Range: 3 ~ 10 pH
  • Resolution: 0.01 pH
  • Accuracy: ±2% (0~50°C; reduced accuracy below 0°C due to freezing)
  • Temperature Compensation Range: 0 ~ 50°C
  • Protection: IP68
  • Probe Cable Length: 3.5 meters

Soil Temperature Measurement

  • Range: -40°C ~ 85°C
  • Resolution: 0.1°C
  • Accuracy:
    • < ±0.5°C (-10°C ~ 40°C)
    • < ±0.8°C (others)
  • Protection: IP68
  • Probe Cable Length: 3.5 meters

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • Protocol: LoRaWAN® 1.0.3 Class A
  • Supported Bands: IN865

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm / 82mA @ 14dBm

Physical Specifications

  • Enclosure Protection: IP66
  • Probe Protection: IP68
  • Device Size: 195 × 125 × 55 mm
  • Weight: 420 g

The Dragino SPH01-LS is ideal for:

  • Smart Agriculture
  • Precision Farming
  • Irrigation Management
  • Soil Fertility Monitoring
  • Greenhouse Automation
  • Crop Yield Optimization
  • Agricultural Research Projects

SPH01-LS is solar-powered with a 3000mAh rechargeable Li-ion battery, while SPH01-LB uses a non-rechargeable 8500mAh Li/SOCl2 battery.

Yes. With long-range LoRaWAN® communication and solar charging, SPH01-LS is ideal for remote agricultural deployments.

Yes. The IP68-rated probe is designed for permanent underground installation.

Documents

User Manual
Download

SPH01-LS_Datasheet

Download

SPH01-LS_Firmware

Download
