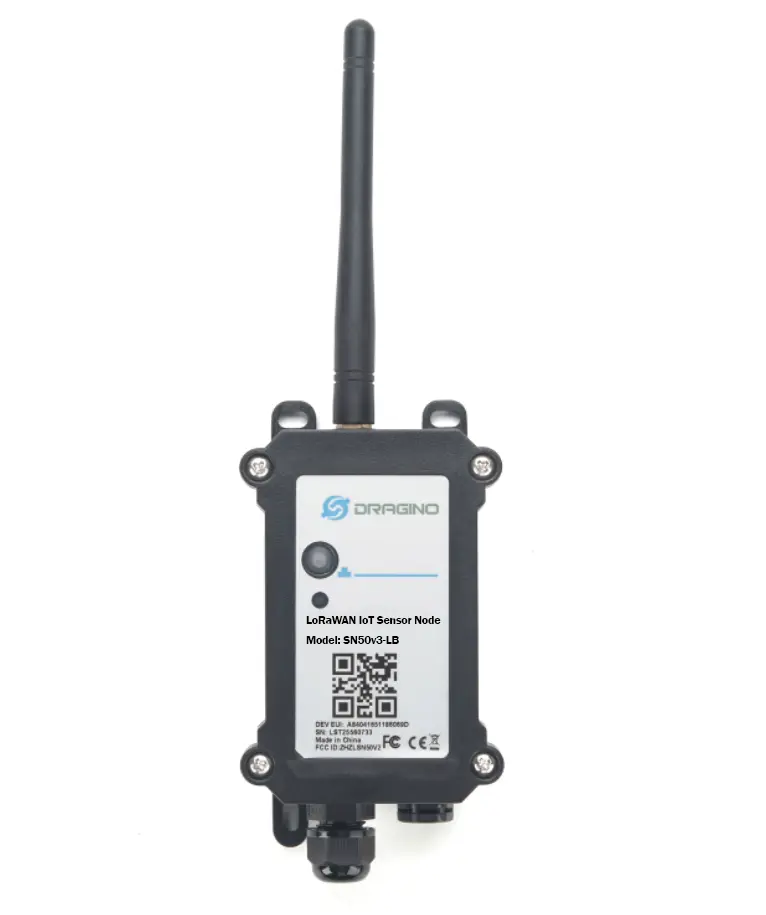

Dragino SN50v3-LB LoRaWAN Sensor Node

https://www.aiotkart.com/web/image/product.template/17770/image_1920?unique=fa70ef2

Dragino SN50v3-LB is a waterproof LoRaWAN® sensor node designed for flexible industrial IoT sensing, monitoring and control applications. Built around the SX1262 LoRa core, it provides configurable I/O interfaces including digital inputs and outputs, One-Wire, UART, I2C and controllable 5V output for connecting external sensors and field devices. The SN50v3-LB supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. With an IP65 enclosure, external LoRa antenna, ultra-low-power design, 8500mAh Li-SOCl2 battery and IN865 frequency support, it is suitable for industrial monitoring, automated meter reading, building automation, irrigation and long-range wireless sensor deployments in India.

₹ 6,100.00 6100.0 INR ₹ 6,100.00

₹ 6,100.00

Not Available For Sale

(₹ 0.00 / UNIT)
7 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • SX1262 LoRa core for ultra-long range communication
  • 8500mAh Li/SOCl2 battery (SN50v3-LB variant)
  • Solar panel + 3000mAh Li-ion battery (SN50v3-LS variant)
  • Built-in Bluetooth v5.1 for remote configuration
  • OTA firmware upgrade via private LoRa protocol
  • 48MHz ARM MCU with 256KB Flash & 64KB RAM
  • Multiple I/O interfaces for flexible sensor integration
  • IP65 waterproof enclosure for outdoor deployment
  • External LoRa antenna for extended coverage
  • Ultra-low power consumption (5uA sleep mode)
  • Supports IN865  band

General Characteristics

  • Supply Voltage: 2.5V ~ 3.6V (Built-in battery)
  • Operating Temperature: -40°C to +85°C
  • Protection Rating: IP65

Microcontroller

  • 48MHz ARM MCU
  • 256KB Flash
  • 64KB RAM

LoRa Specifications

  • Frequency Band: 862 ~ 1020 MHz (Supports IN865)
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Battery (SN50v3-LB)

  • 8500mAh Li/SOCl2
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5uA @ 3.3V
  • Transmit Mode: 125mA @ 20dBm

I/O Interfaces

  • 3 x Digital IN/OUT or Interrupt pins
  • 3 x One-wire interfaces
  • 1 x UART
  • 1 x I2C
  • +5V controllable output

Dimensions & Weight

  • Device Size: 9.7 × 6.5 × 4.7 cm
  • Device Weight: 150g

The Dragino SN50v3-LB LoRaWAN® Sensor Node is suitable for:

  • Industrial automation and remote monitoring
  • Commercial infrastructure management
  • Water systems and irrigation automation
  • Cold chain temperature and asset monitoring
  • Manufacturing process monitoring
  • Smart utilities and metering systems
  • Smart city infrastructure
  • Campuses and institutional IoT deployments
  • Wireless alarm and security systems

You can buy the genuine Dragino SN50v3-LB LoRaWAN® Sensor Node directly from AIoTkart®, the Authorized Dragino Distributor in India, with PAN-India shipping and bulk project support.

Yes, the SN50v3-LB supports the IN865 frequency band and LoRaWAN® 1.0.3 Class A, making it fully suitable for Indian LoRaWAN® network deployments including private and public LPWAN networks.

The SN50v3-LB uses an 8500mAh Li/SOCl2 battery for long-term standalone operation, while the SN50v3-LS includes a solar panel with a 3000mAh Li-ion rechargeable battery for renewable energy-based deployments.

Documents

User Manual
Download

SN50v3-LB_FIrmware

Download
