Dragino SN50v3-LS Solar LoRaWAN Sensor Node

Price:

₹ 6,900.00
Dragino SN50v3-LS Solar LoRaWAN Sensor Node
  2. Shop
  3. Dragino SN50v3-LS Solar LoRaWAN Sensor Node
Dragino SDI-12-LB SDI-12 to LoRaWAN Converter
Dragino SDI-12-LB SDI-12 to LoRaWAN Converter
₹ 6,645.00
₹ 6,645.00
Dragino SN50v3-LB LoRaWAN Sensor Node
Dragino SN50v3-LB LoRaWAN Sensor Node
₹ 6,100.00
₹ 6,100.00

Dragino SN50v3-LS Solar LoRaWAN Sensor Node

https://www.aiotkart.com/web/image/product.template/17771/image_1920?unique=15c3355

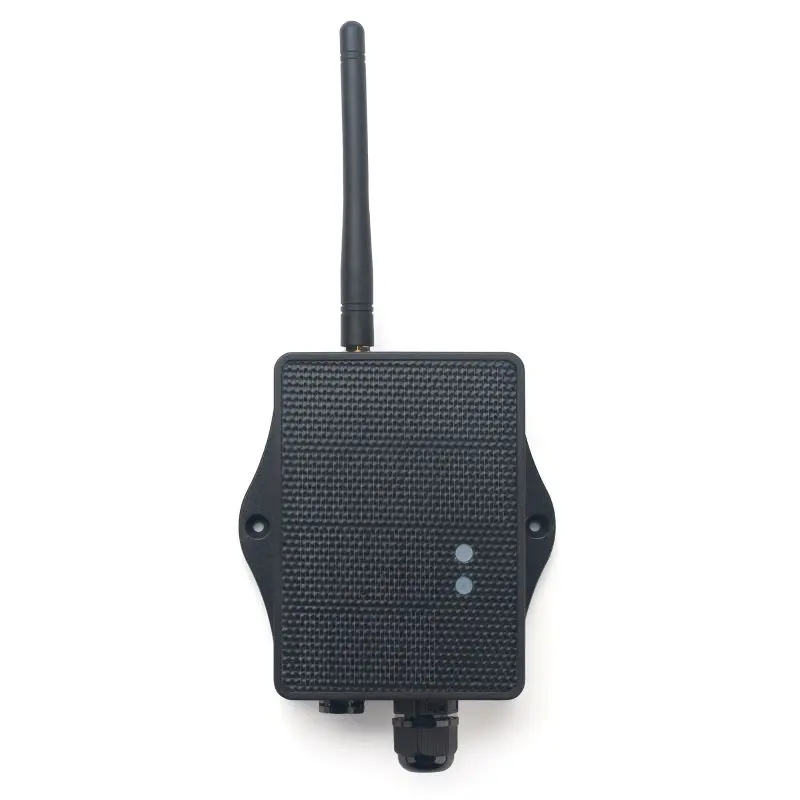

Dragino SN50v3-LS is a solar-powered LoRaWAN® sensor node designed for flexible outdoor IoT sensing, monitoring and control applications. Built around the SX1262 LoRa core, it provides multiple configurable I/O interfaces including digital inputs/outputs, One-Wire, UART, I2C and controllable 5V output for connecting external sensors and field devices. The SN50v3-LS supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. With an IP65 enclosure, external LoRa antenna, solar panel and 3000mAh rechargeable Li-ion battery, it is suitable for industrial monitoring, smart metering, irrigation, building automation and long-range sensor deployments in India, with IN865 frequency support available.

₹ 6,900.00 6900.0 INR ₹ 6,900.00

₹ 6,900.00

Not Available For Sale

(₹ 0.00 / UNIT)
6 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • SX1262 LoRa core for ultra-long-range communication
  • Open-source hardware & software platform
  • Ultra-low power consumption (5µA sleep mode)
  • 8500mAh Li/SOCl2 battery (SN50v3-LB)
  • Solar + 3000mAh Li-ion battery option (SN50v3-LS)
  • Bluetooth v5.1 support for remote configuration
  • Wireless OTA firmware upgrade
  • IP65 waterproof enclosure
  • External LoRa antenna
  • Band support IN865 (India)

Microcontroller

  • 48MHz ARM MCU
  • 256KB Flash
  • 64KB RAM

Power & Electrical

  • Supply Voltage: 2.5V ~ 3.6V (Built-in battery)
  • Operating Temperature: -40°C to +85°C

I/O Interfaces

  • Battery output (2.6V ~ 3.6V depending on battery)
  • +5V controllable output
  • 3 x Interrupt or Digital IN/OUT pins
  • 3 x One-wire interfaces
  • 1 x UART interface
  • 1 x I2C interface

LoRa RF Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • Regional Bands: IN865
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • Excellent blocking immunity

Battery (LB Version)

  • Type: Li/SOCl2 (non-rechargeable)
  • Capacity: 8500mAh
  • Self-discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa TX: 125mA @ 20dBm, 82mA @ 14dBm

Mechanical

  • Device Size: 9.7 x 6.5 x 4.7 cm
  • Device Weight: 150g
  • Package Size: 14 x 8 x 5 cm
  • Package Weight: 180g

The SN50v3-LS LoRaWAN® Sensor Node is ideal for:

  • Wireless alarm and security systems
  • Home and building automation
  • Automated meter reading (AMR)
  • Industrial monitoring and control
  • Long-range irrigation systems
  • Smart city infrastructure
  • Environmental monitoring

The SN50v3-LB version uses an 8500mAh Li/SOCl2 non-rechargeable battery designed for multi-year operation. The SN50v3-LS version includes a solar panel with a 3000mAh Li-ion rechargeable battery, making it ideal for long-term outdoor deployments where continuous power availability is required.

Yes. The device supports Bluetooth v5.1 for local configuration via mobile phone and also allows remote configuration through LoRaWAN® downlink. It additionally supports OTA (Over-The-Air) firmware upgrades for easy maintenance.

Yes. The SN50v3-LS features an IP65 waterproof enclosure and operates in temperatures ranging from -40°C to +85°C, making it suitable for outdoor industrial IoT applications such as irrigation systems, smart metering, and environmental monitoring.

Documents

User Manual
Download

SN50v3-LS_Firmware

Download
