D22-LB Two probes LoRaWAN® Waterproof /Outdoor Temperature Sensor

https://www.aiotkart.com/web/image/product.template/17645/image_1920?unique=b91d998

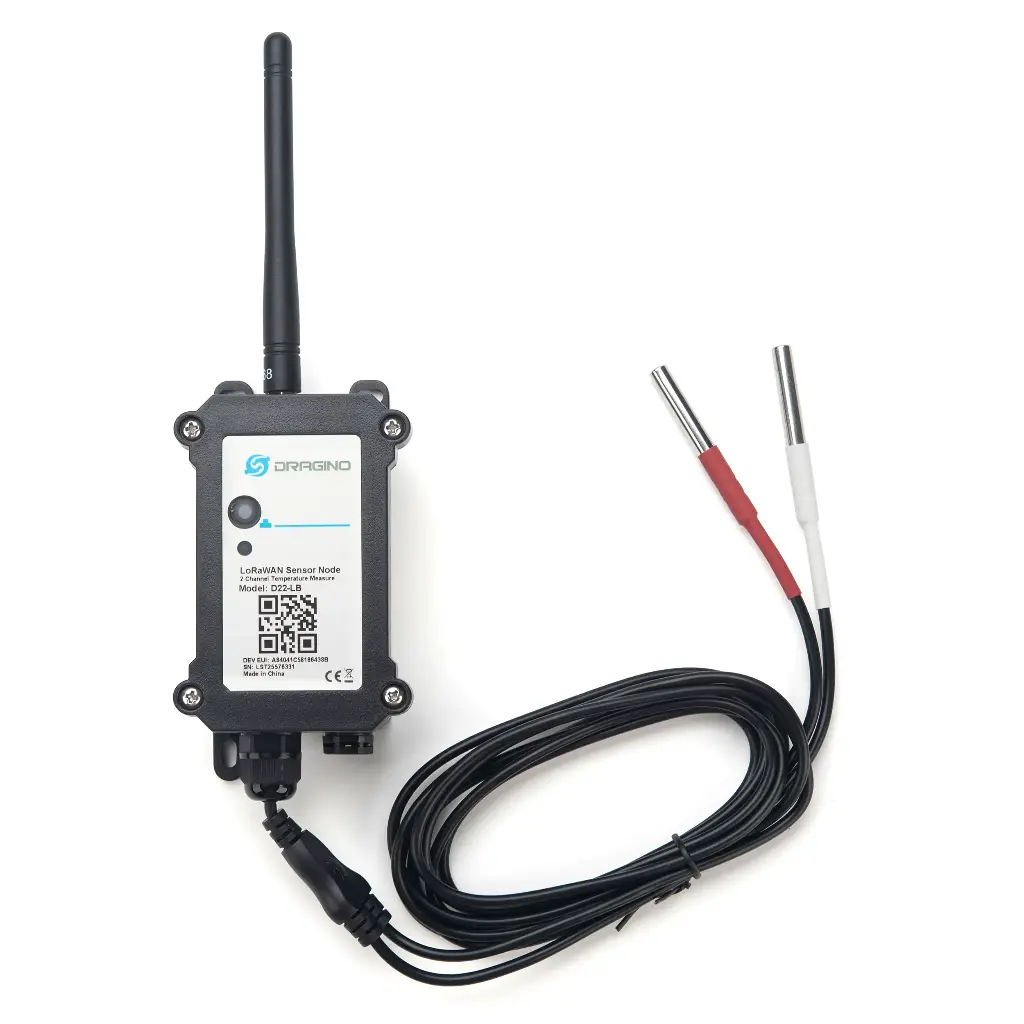

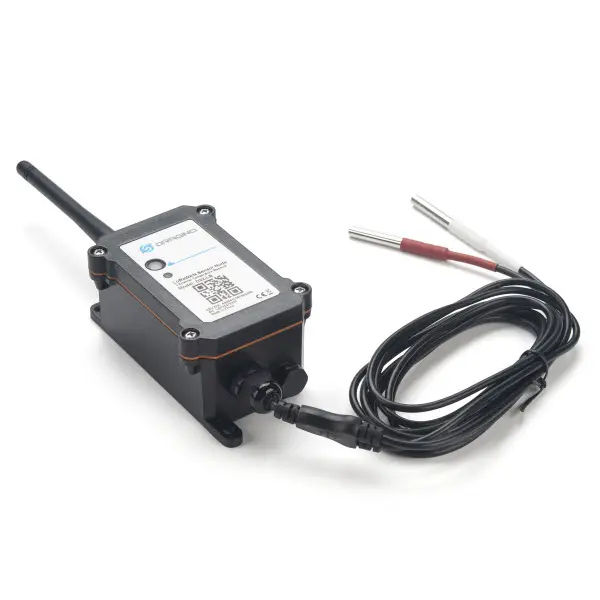

The Dragino D22-LB Two Probes LoRaWAN® Waterproof Outdoor Temperature Sensor is a dual-channel industrial temperature monitoring device designed for long-range IoT deployments across India. Built on LoRaWAN® LPWAN technology, the D22-LB converts real-time temperature readings from two DS18B20 probes into secure wireless data and transmits it to an IoT platform via a LoRaWAN® gateway. With a wide measurement range of -55°C to +125°C and high accuracy, this sensor is ideal for industrial automation, cold chain systems, utilities, and infrastructure monitoring. The IP66 waterproof enclosure ensures reliable outdoor performance, while the 8500mAh Li-SOCI2 battery enables up to 5 years of operation. AIoTkart®, as an Authorized Dragino Distributor in India, supplies genuine D22-LB sensors with PAN-India shipping and technical support for industrial and institutional IoT projects.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
10 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Dual DS18B20 temperature probes
  • Wide measurement range (-55°C to +125°C)
  • High accuracy ±0.5°C (max ±2.0°C)
  • IP66 waterproof outdoor enclosure
  • Ultra-low power LPWAN communication
  • Temperature alarm feature
  • Datalog storage during network outage
  • Bluetooth v5.1 configuration support
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware upgrade
  • 8500mAh Li/SOCI2 battery (D22-LB)
  • Solar + 3000mAh Li-ion option (D22-LS)

Common Electrical Characteristics

  • Supply Voltage: Built-in battery (2.5V ~ 3.6V)
  • Operating Temperature: -40°C to 85°C

Temperature Sensors

  • Sensor Model: 2 × Dallas DS18B20
  • Measurement Range: -55°C to +125°C
  • Accuracy: ±0.5°C (max ±2.0°C)

LoRa Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
  • Frequency Range (HF): 862 ~ 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm

Battery (D22-LB Variant)

  • Type: Li/SOCI2 non-rechargeable
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm / 82mA @ 14dBm

Mechanical

  • Enclosure Rating: IP66 Waterproof
  • Device Size: 120 × 55 × 200 mm
  • Device Weight: 372 g

Package Includes

  • 1 × D22-LB LoRaWAN® Waterproof Outdoor Temperature Sensor

The Dragino D22-LB Two Probes LoRaWAN® Temperature Sensor is suitable for:

  • Industrial automation and dual-point temperature monitoring
  • Cold chain and refrigeration systems
  • Manufacturing plants and process industries
  • Water systems and utility infrastructure
  • Outdoor environmental monitoring
  • Power distribution rooms
  • Warehouses and storage facilities
  • Campuses and institutional infrastructure
  • Commercial infrastructure and distributed IoT deployments

Dual probes allow simultaneous monitoring of two separate points, making it ideal for equipment inlet/outlet monitoring or multi-zone temperature tracking across Indian industrial sites.

You can purchase the genuine Dragino D22-LB Two Probes LoRaWAN® Temperature Sensor from AIoTkart®, an Authorized Dragino Distributor in India offering nationwide shipping and project support.

Yes, the D22-LB supports LoRaWAN® 1.0.3 Class A protocol and IN865 band compatibility, making it suitable for integration with standard LoRaWAN® gateways deployed across India for industrial IoT applications.

The dual DS18B20 probes allow simultaneous monitoring of two temperature points, which is ideal for applications like equipment inlet/outlet measurement, cold storage multi-zone tracking, and industrial process monitoring.
