D20S-LB LoRaWAN® Temperature Sensor

https://www.aiotkart.com/web/image/product.template/17643/image_1920?unique=79969ab

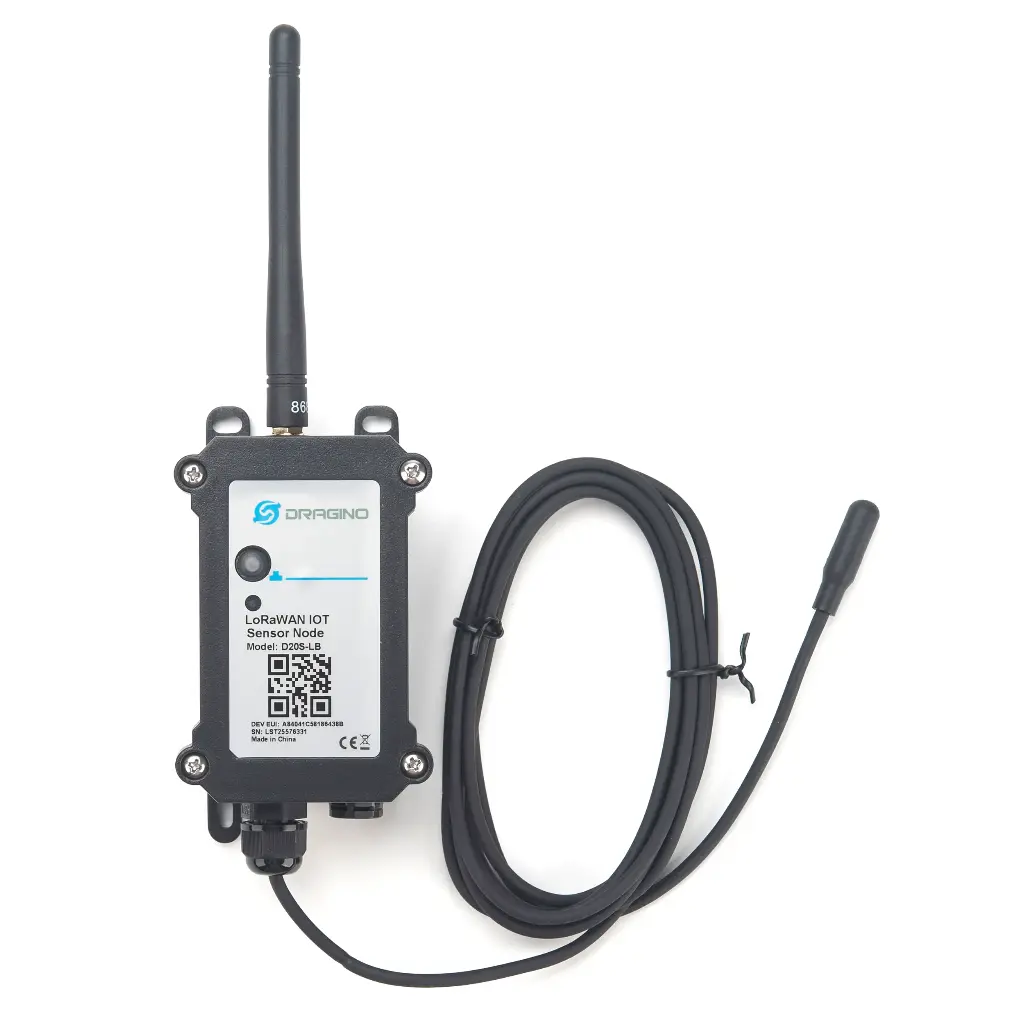

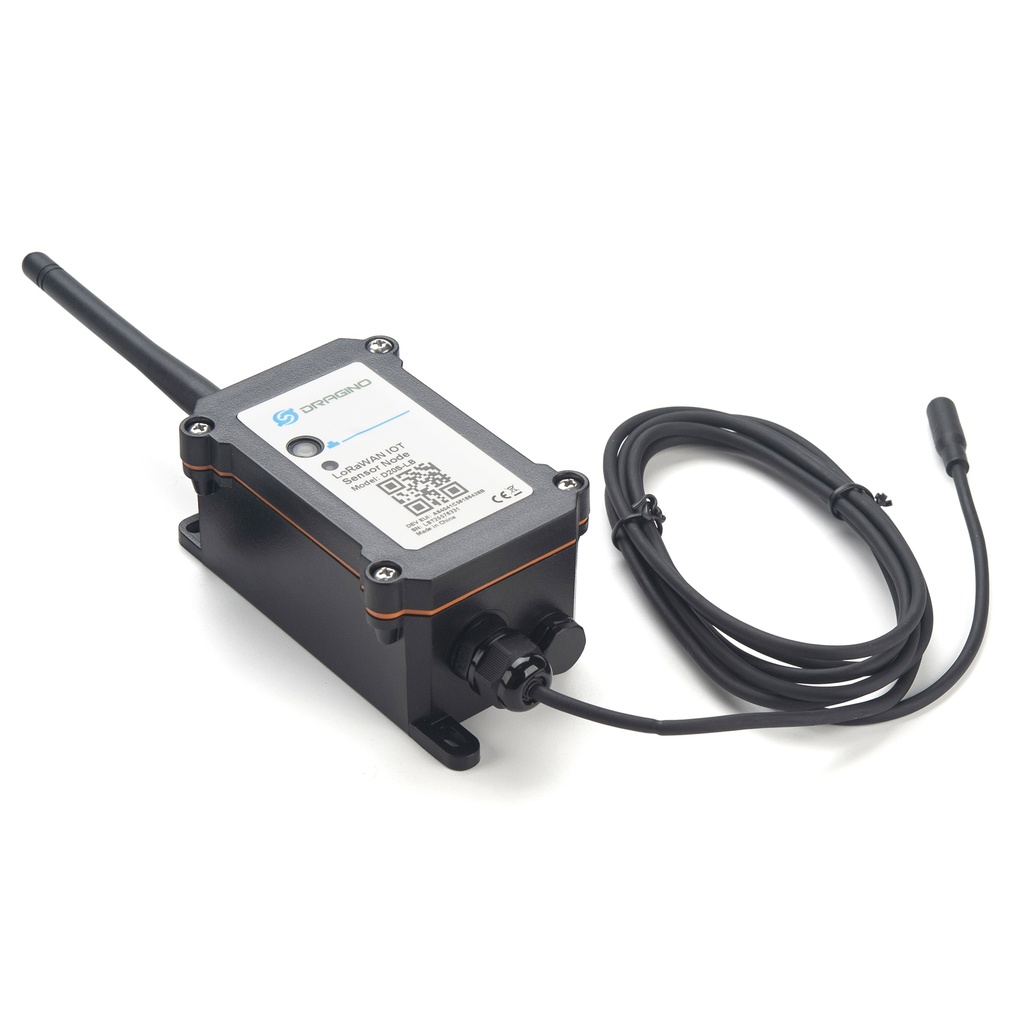

The Dragino D20S-LB LoRaWAN® Temperature Sensor is a rugged, long-range outdoor temperature monitoring device designed for Industrial IoT deployments across India. Built on LoRaWAN® LPWAN technology, the D20S-LB converts precise temperature readings into secure wireless data and transmits them to an IoT platform via a LoRaWAN® gateway. Equipped with a DS18B20 temperature probe (2-meter cable), it supports a wide measurement range from -55°C to +125°C with high accuracy. Featuring ultra-low power consumption and powered by an 8500mAh Li-SOCI2 battery, the D20S-LB is engineered for long-term industrial use up to 5 years. It includes IP66 waterproof protection, temperature alarm, datalog storage, BLE configuration, and OTA firmware updates. AIoTkart®, as an Authorized Dragino Distributor in India, supplies genuine D20S-LB sensors with PAN-India delivery and industrial deployment support.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
5 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Wide temperature range (-55°C to +125°C)
  • DS18B20 temperature probe with 2m cable
  • IP66 waterproof outdoor enclosure
  • Ultra-low power LPWAN communication
  • Temperature alarm support
  • Datalog feature for offline data storage
  • Bluetooth v5.1 configuration
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware upgrade
  • 8500mAh Li/SOCI2 battery for long-term operation

Common Electrical Characteristics

  • Supply Voltage: Built-in battery (2.5V ~ 3.6V)
  • Operating Temperature: -40°C to 85°C

Temperature Sensor

  • Sensor Model: Dallas DS18B20
  • Measurement Range: -55°C to +125°C
  • Accuracy: ±0.5°C (max ±2.0°C)
  • Probe Cable Length: 2 meters

LoRa Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
  • Frequency Range (HF): 862 ~ 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm

Battery

  • Type: Li/SOCI2 non-rechargeable
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm / 82mA @ 14dBm

Mechanical

  • Enclosure Rating: IP66 Waterproof
  • Device Size: 120 × 55 × 200 mm
  • Device Weight: 372 g

Package Includes

  • 1 × D20S-LB LoRaWAN® Waterproof Outdoor Temperature Sensor

The Dragino D20S-LB LoRaWAN® Temperature Sensor is suitable for:

  • Industrial automation and process monitoring
  • Manufacturing plants and production areas
  • Cold chain and refrigeration systems
  • Water systems and pump stations
  • Utilities and remote infrastructure monitoring
  • Outdoor environmental monitoring
  • Commercial warehouses and storage units
  • Campuses and institutional facilities
  • Infrastructure projects requiring long-range temperature sensing

Its long-range LoRaWAN® capability ensures reliable communication across large industrial sites and distributed infrastructure projects in India.

You can purchase the genuine Dragino D20S-LB LoRaWAN® Temperature Sensor from AIoTkart®, an Authorized Dragino Distributor in India offering nationwide delivery and industrial project support.

Yes, the D20S-LB supports LoRaWAN® 1.0.3 Class A protocol and IN865 band compatibility, allowing seamless integration with standard LoRaWAN® gateways deployed across India for industrial IoT networks.

The D20S-LB features an IP66 waterproof enclosure, wide temperature measurement range (-55°C to +125°C), long battery life, and ultra-long-range LoRaWAN® communication, making it ideal for harsh outdoor and industrial environments.
