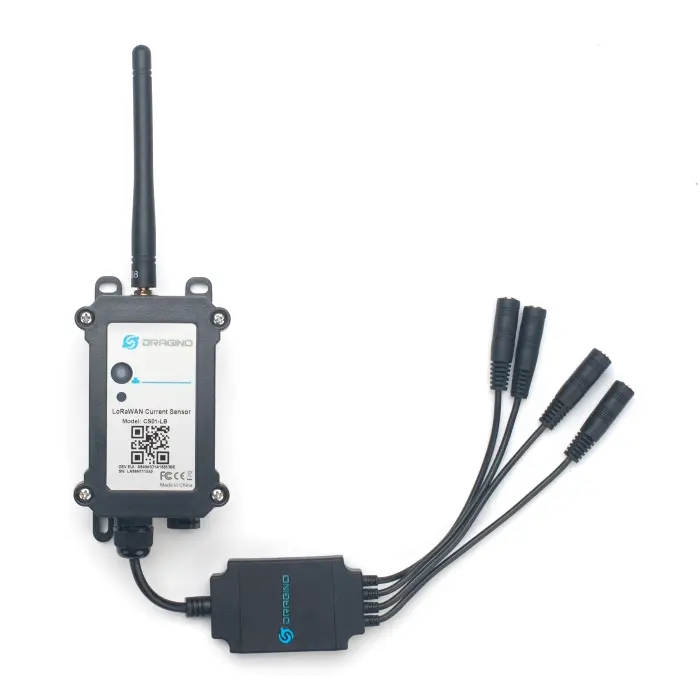

CS01-LB LoRaWAN Current Sensor Converter (Without Current Sensor)

The CS01-LB is a LoRaWAN-based 4-channel current sensor converter designed for monitoring machine operation status and power consumption trends. It supports up to four detachable current sensors (100A, 300A, 600A scales) and transmits data over LoRaWAN v1.0.3 Class A networks for long-range, low-power IoT applications.

The device features BLE configuration, wireless OTA updates, and an 8500 mAh Li/SOCl₂ battery for several years of maintenance-free operation.

Key Specifications:

• LoRaWAN v1.0.3 Class A | Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865

• Supports up to 4 current sensors (100A/50mA, 300A/50mA, 600A/50mA)

• Monitors machine status & power consumption trends

• Supports current alarm and periodic uplink

• BLE configuration & OTA firmware update

• Operating Temperature: –40 ~ 85 °C

• Power: 8500 mAh Li/SOCl₂ battery (ultra-low power)

Applications: Industrial Equipment Monitoring • Power Usage Analysis • Preventive Maintenance

USER MANUAL:

CS01-LB_User_Manual

DATA SHEET:

CS01-LB_Datasheet
