TC11-LB K-Type Thermocouple Converter (Exclude Thermocouple Sensor)

https://www.aiotkart.com/web/image/product.template/17784/image_1920?unique=ac65fc1

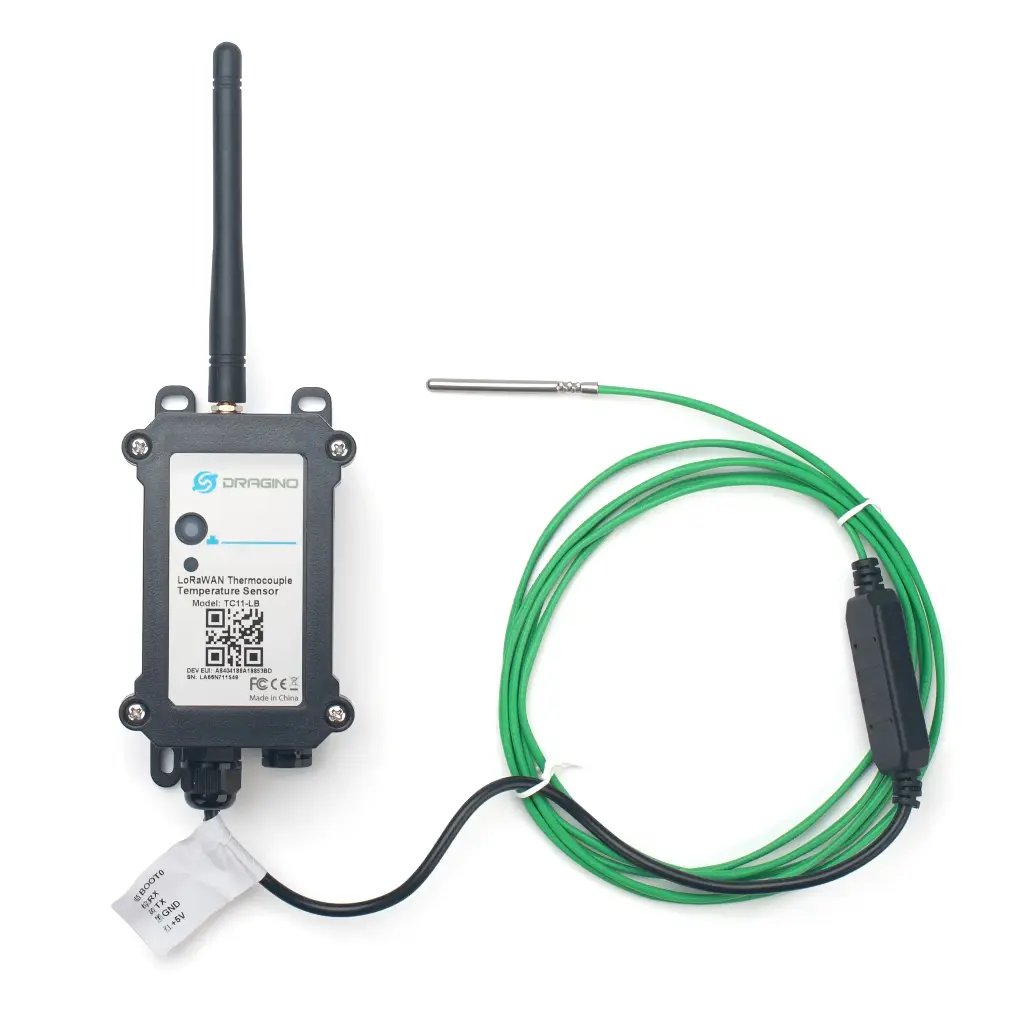

The Dragino TC11-LB K-Type Thermocouple Converter is an industrial-grade LoRaWAN® temperature monitoring device designed for high-reliability IoT deployments. It converts K-Type thermocouple temperature readings into LoRaWAN® wireless data, enabling long-range industrial temperature monitoring across factories, utilities, and infrastructure projects.The TC11-LB supports a K-Type thermocouple measurement range of -50°C to 200°C (Thermocouple sensor excluded). It uploads temperature data securely to IoT servers via the LoRaWAN® network, making it ideal for industrial heating systems, HVAC, heat exchangers, and process monitoring.

Built with ultra-low power design and powered by an 8500mAh Li-SOCl₂ battery, the TC11-LB is engineered for multi-year field operation without frequent maintenance. It supports LoRaWAN® 1.0.3 Class A, Bluetooth v5.1 configuration, wireless OTA firmware updates, alarm notifications, and datalog backup to prevent data loss during network outages.Each device is pre-configured with unique LoRaWAN® keys for seamless integration with standard LoRaWAN® gateways. AIoTkart® supplies genuine Dragino TC11-LB converters across India for industrial IoT deployments.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
9 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Supports K-Type Thermocouple (-50°C to 200°C) – TC11 model
  • Thermocouple sensor excluded (converter only)
  • Ultra-low power industrial design
  • 8500mAh Li-SOCl₂ battery for long-term use
  • Temperature alarm alerts
  • Datalog feature (no data loss during network outage)
  • Bluetooth v5.1 configuration support
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware upgrade
  • Supports IN865  band

Common DC Characteristics

  • Supply Voltage: Built-in Battery (2.5V ~ 3.6V)
  • Operating Temperature: -40°C to 85°C

Thermocouple Input (TC11-LB)

  • Type: K-Type Thermocouple
  • Measurement Range: -50°C to 200°C
  • Sensor: Not Included

LoRa Specifications

  • Frequency Range (HF Band): 862 ~ 1020 MHz
  • Supported Bands: IN865, EU868, US915, AU915, AS923, KR920, EU433, CN470
  • Max +22 dBm RF Output
  • RX Sensitivity: up to -139 dBm
  • High interference immunity

Battery Specifications

  • Type: Li/SOCl₂ (Non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode:
    • 125mA @ 20dBm
    • 82mA @ 14dBm

Mechanical

  • Industrial enclosure
  • Device Size: As per manufacturer specification
  • Device Weight: As per manufacturer specification

Package Includes

  • 1 × TC11-LB LoRaWAN K-Type Thermocouple Converter (Thermocouple sensor not included)

The Dragino TC11-LB Thermocouple Converter is suitable for:

  • Industrial heating equipment monitoring
  • Heat exchangers
  • HVAC systems
  • Boiler temperature monitoring
  • Industrial process control
  • Furnace and oven monitoring
  • Manufacturing plants
  • Infrastructure temperature supervision

You can purchase the Dragino TC11-LB from AIoTkart® with PAN-India shipping and bulk procurement support for industrial IoT projects.

No, the TC11-LB converter does not include a thermocouple sensor. A compatible K-Type thermocouple must be purchased separately.

The TC11-LB supports K-Type thermocouple measurement from -50°C to 200°C, suitable for industrial heating and HVAC applications.

Documents

TC11-LB_User_Manual

Download

TC11-LB_Datasheet

Download

TC11-LB_Firmware

Download
