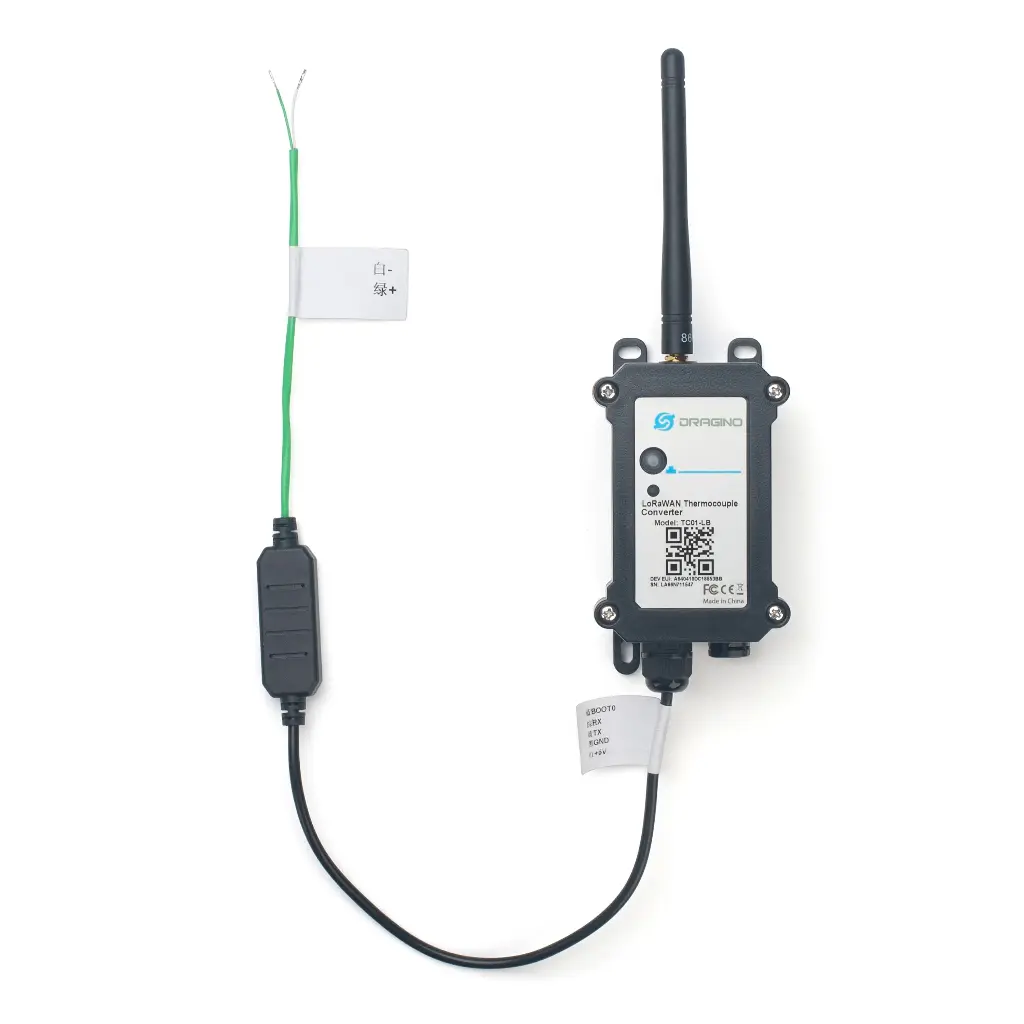

TC01-LB Thermocouple Converter (Exclude Thermocouple Sensor)

https://www.aiotkart.com/web/image/product.template/17783/image_1920?unique=988b460

The Dragino TC01-LB Thermocouple Converter is an industrial-grade LoRaWAN® temperature monitoring device designed for high-temperature measurement applications across India. As an Authorized Dragino Distributor in India, AIoTkart® supplies the genuine TC01-LB for industrial automation, HVAC systems, manufacturing plants, and institutional infrastructure projects. This LoRaWAN® thermocouple converter (thermocouple sensor excluded) supports connection to third-party K, J, N, R, S, T, E, or B type thermocouples via its 2-wire interface. Built on LoRaWAN® 1.0.3 Class A protocol, the TC01-LB enables long-range, low-power wireless transmission to standard LoRaWAN® gateways. With an 8500mAh Li/SOCl2 battery, BLE configuration, OTA firmware support, temperature alarm, and datalog functionality, it is engineered for reliable long-term industrial IoT deployments in India.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
10 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Supports K, J, N, R, S, T, E, B type thermocouples (TC01-LB)
  • 2-wire interface for third-party thermocouple connection
  • Long-range LoRa communication
  • Temperature alarm function
  • Datalog feature for offline data storage
  • Bluetooth v5.1 configuration support
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware update
  • Ultra-low power consumption
  • 8500mAh Li/SOCl2 industrial battery
  • Periodic uplink and configurable downlink

Common Electrical Characteristics

  • Supply Voltage: Built-in battery, 2.5V ~ 3.6V
  • Operating Temperature: -40°C to 85°C

Thermocouple Support (TC01-LB)

  • 2-wire input for external thermocouple
  • Compatible with K, J, N, R, S, T, E, B types
  • Thermocouple sensor not included

LoRa Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Range: 862 ~ 1020 MHz
  • Supported Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
  • Max +22 dBm RF output
  • RX Sensitivity: up to -139 dBm
  • Excellent blocking immunity

Battery Specifications

  • Type: Li/SOCl2 non-rechargeable battery
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5uA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm / 82mA @ 14dBm

The Dragino TC01-LB LoRaWAN® Thermocouple Converter is ideal for:

  • Industrial automation and process temperature monitoring
  • Commercial infrastructure HVAC systems
  • Water systems and heat exchange monitoring
  • Cold chain temperature validation systems
  • Manufacturing plants and industrial heating equipment
  • Utilities and remote asset temperature tracking
  • Infrastructure and smart facility monitoring
  • Campuses, laboratories, and institutional research environments

You can purchase the genuine Dragino TC01-LB LoRaWAN® Thermocouple Converter from AIoTkart®, the Authorized Dragino Distributor in India, with nationwide delivery and project support.

Yes, the TC01-LB supports LoRaWAN® 1.0.3 Class A protocol and is compatible with standard LoRaWAN® gateways operating in India, including IN865 band deployments.

No, the TC01-LB model excludes the thermocouple sensor. It provides a 2-wire interface for connecting compatible third-party thermocouples based on your industrial temperature measurement requirements.

Documents

TC01-LB_User_Manual

Download

TC01-LB_Datasheet

Download

TC01-LB_Firmware

Download
