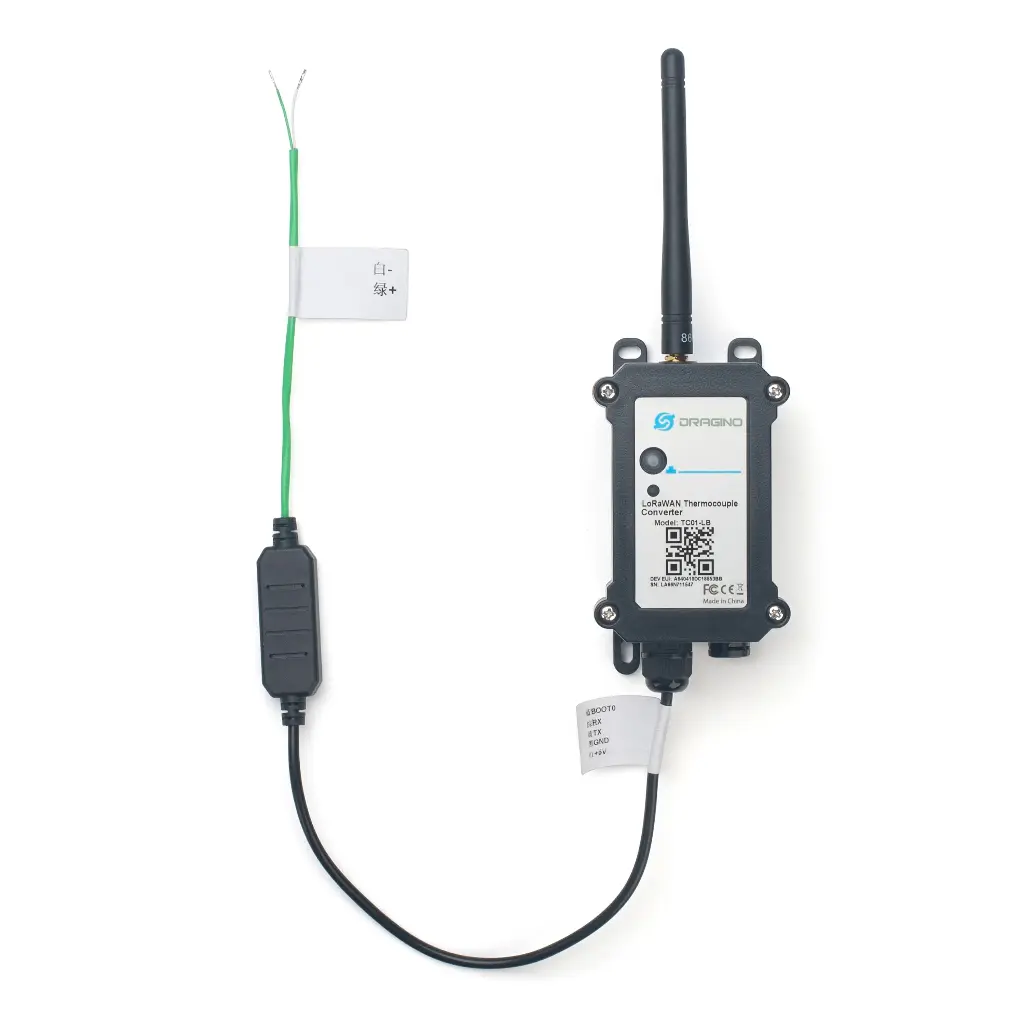

[TC01-LB] Thermocouple Converter (Exclude Thermocouple Sensor)

The Dragino TC01-LB is a LoRaWAN Thermocouple Converter for Internet of Things solution. It is used to measure the industrial environment temperature , and then upload to IoT server via LoRaWAN network.

 TC01-LB is with 2 open wire so user can connect a 3rd party K, J, N, R,S T, E, or B type thermocouple.

TC01-LB supports temperature alarm feature, user can set temperature alarm for instant notice. TC01-LB supports Datalog feature，It will record the data when there is no network coverage and users can retrieve the sensor value later to ensure no miss for every sensor reading.

TC01-LB supports BLE configure and wireless OTA update which make user easy to use.

TC01-LB is powered by 8500mAh Li-SOCI2 battery , it is designed for long-term use up to several years.

Each TC01-LB is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

USER MANUAL :

TC01-LB_User_Manual

DATA SHEET :

TC01-LB_Datasheet
