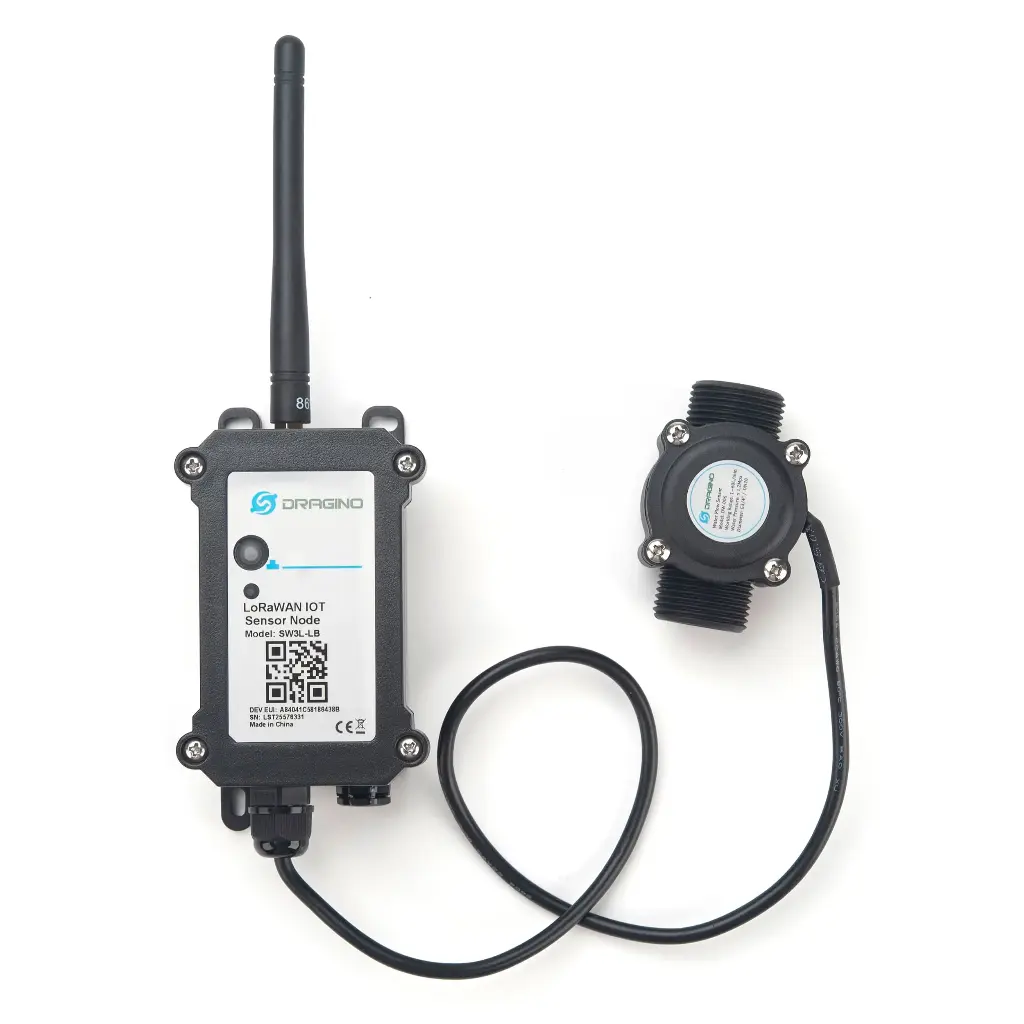

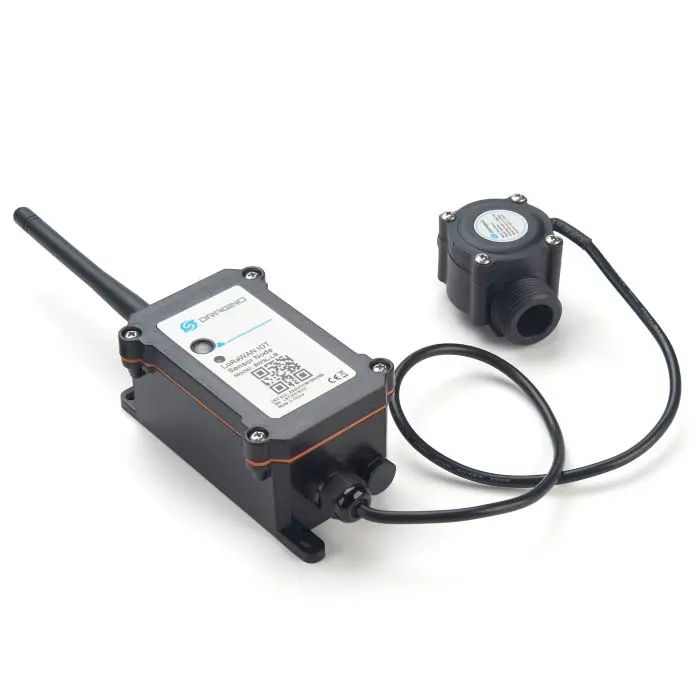

SW3L-LB-004 LoRaWAN Flow Sensor

The SW3L-LB is a LoRaWAN-based flow sensor designed to accurately monitor water flow volume and detect abnormal flow conditions in smart water management systems. It periodically transmits flow data to an IoT server and can send instant alarms to prevent water wastage, such as in cases of leaks or broken fixtures.

Built for indoor and outdoor applications, the SW3L-LB features a weatherproof enclosure and an industrial-grade 8500mAh Li-SOCl₂ battery that provides up to 5 years of operation. It supports BLE configuration, wireless OTA updates, and Datalog functionality for data backup when no LoRaWAN network is available.

Key Specifications:

• LoRaWAN v1.0.3 Class A | Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865 / RU864

• Measures and uploads water flow volume every 20 minutes

• Detects water flow status and sends alarms for leak or waste detection

• Supports Datalog, BLE configuration & wireless OTA firmware updates

• Power: 8500mAh Li-SOCl₂ Battery (SW3L-LB)

• Optional Solar + 3000mAh Li-ion Battery (SW3L-LS)

• Operating Temperature: -40°C ~ 85°C

• Frequency Range: 862 ~ 1020 MHz

• Package Weight: 290 g (0.29 kg)

• Package Size: 14.5 × 10 × 5 cm

Flow Sensor Type:

• DW-004: G1/2” (DN15) – 450 pulses = 1 L

Applications:

Smart Water Monitoring • Flow Control • Leakage Detection • Wastewater Management

USER MANUAL:

SW3L-LB_User_Manual

DATA SHEET:

SW31-LB_Datasheet

FIRMWARE:

SW31-LB_Firmware
