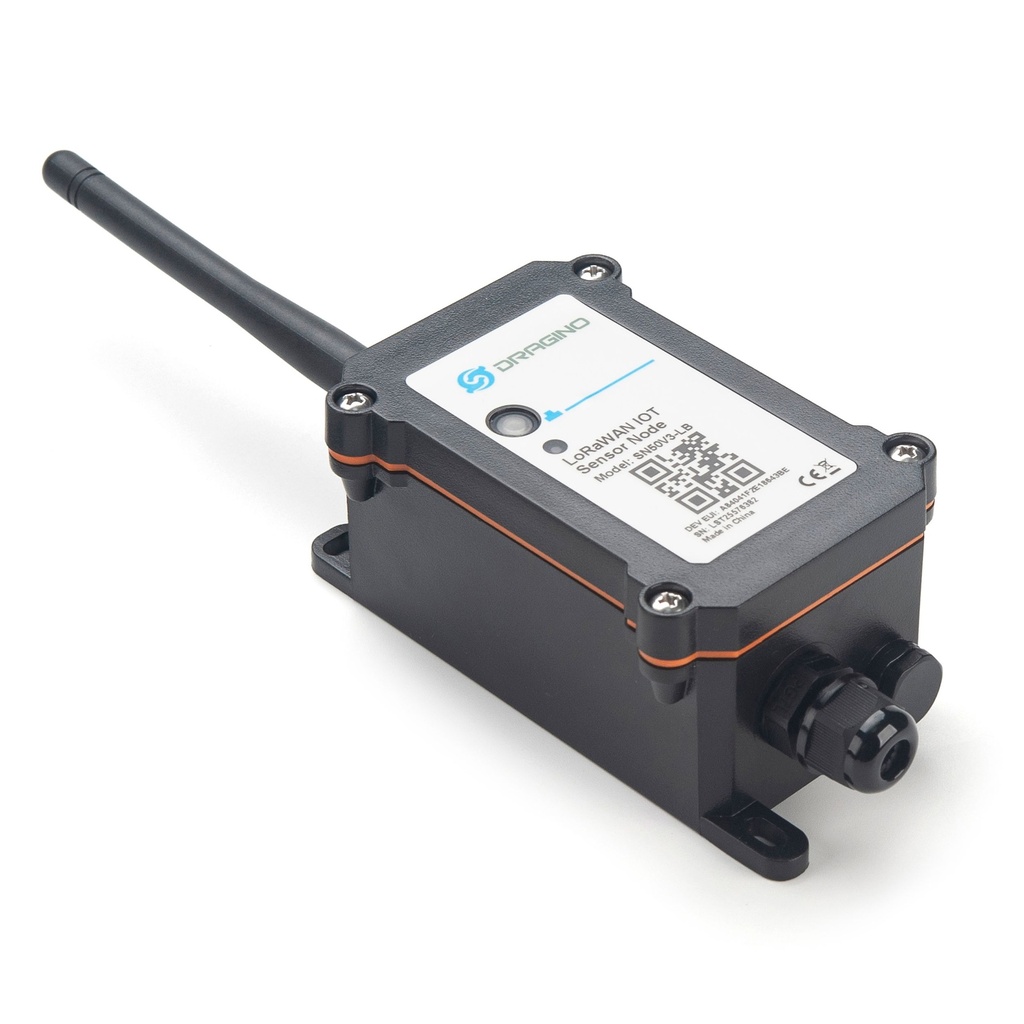

SN50v3-LB LoRaWAN® Sensor Node

https://www.aiotkart.com/web/image/product.template/17770/image_1920?unique=e923ed7

The Dragino SN50v3-LB LoRaWAN® Sensor Node is an industrial-grade long-range LoRa sensor node designed for professional IoT deployments across India. Built for outdoor environments, the SN50v3-LB features an 8500mAh Li/SOCl2 battery for ultra-long operational life, while the SN50v3-LS variant supports solar power with Li-ion backup. Powered by the SX1262 LoRa core and supporting LoRaWAN® 1.0.3 Class A, this device enables reliable low-power, long-distance communication for industrial automation, smart metering, irrigation systems, and infrastructure monitoring. As an Authorized Dragino Distributor in India, AIoTkart® supplies genuine SN50v3-LB LoRaWAN® Sensor Nodes with PAN-India delivery, ensuring reliable deployment for industrial, commercial, and institutional IoT projects.

₹ 6,100.00 6100.0 INR ₹ 6,100.00

₹ 6,100.00

Not Available For Sale

(₹ 0.00 / UNIT)
7 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • SX1262 LoRa core for ultra-long range communication
  • 8500mAh Li/SOCl2 battery (SN50v3-LB variant)
  • Solar panel + 3000mAh Li-ion battery (SN50v3-LS variant)
  • Built-in Bluetooth v5.1 for remote configuration
  • OTA firmware upgrade via private LoRa protocol
  • 48MHz ARM MCU with 256KB Flash & 64KB RAM
  • Multiple I/O interfaces for flexible sensor integration
  • IP65 waterproof enclosure for outdoor deployment
  • External LoRa antenna for extended coverage
  • Ultra-low power consumption (5uA sleep mode)
  • Supports IN865  band

General Characteristics

  • Supply Voltage: 2.5V ~ 3.6V (Built-in battery)
  • Operating Temperature: -40°C to +85°C
  • Protection Rating: IP65

Microcontroller

  • 48MHz ARM MCU
  • 256KB Flash
  • 64KB RAM

LoRa Specifications

  • Frequency Band: 862 ~ 1020 MHz (Supports IN865)
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Battery (SN50v3-LB)

  • 8500mAh Li/SOCl2
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5uA @ 3.3V
  • Transmit Mode: 125mA @ 20dBm

I/O Interfaces

  • 3 x Digital IN/OUT or Interrupt pins
  • 3 x One-wire interfaces
  • 1 x UART
  • 1 x I2C
  • +5V controllable output

Dimensions & Weight

  • Device Size: 9.7 × 6.5 × 4.7 cm
  • Device Weight: 150g

The Dragino SN50v3-LB LoRaWAN® Sensor Node is suitable for:

  • Industrial automation and remote monitoring
  • Commercial infrastructure management
  • Water systems and irrigation automation
  • Cold chain temperature and asset monitoring
  • Manufacturing process monitoring
  • Smart utilities and metering systems
  • Smart city infrastructure
  • Campuses and institutional IoT deployments
  • Wireless alarm and security systems

You can buy the genuine Dragino SN50v3-LB LoRaWAN® Sensor Node directly from AIoTkart®, the Authorized Dragino Distributor in India, with PAN-India shipping and bulk project support.

Yes, the SN50v3-LB supports the IN865 frequency band and LoRaWAN® 1.0.3 Class A, making it fully suitable for Indian LoRaWAN® network deployments including private and public LPWAN networks.

The SN50v3-LB uses an 8500mAh Li/SOCl2 battery for long-term standalone operation, while the SN50v3-LS includes a solar panel with a 3000mAh Li-ion rechargeable battery for renewable energy-based deployments.

Documents

User Manual
Download

SN50v3-LB_FIrmware

Download
