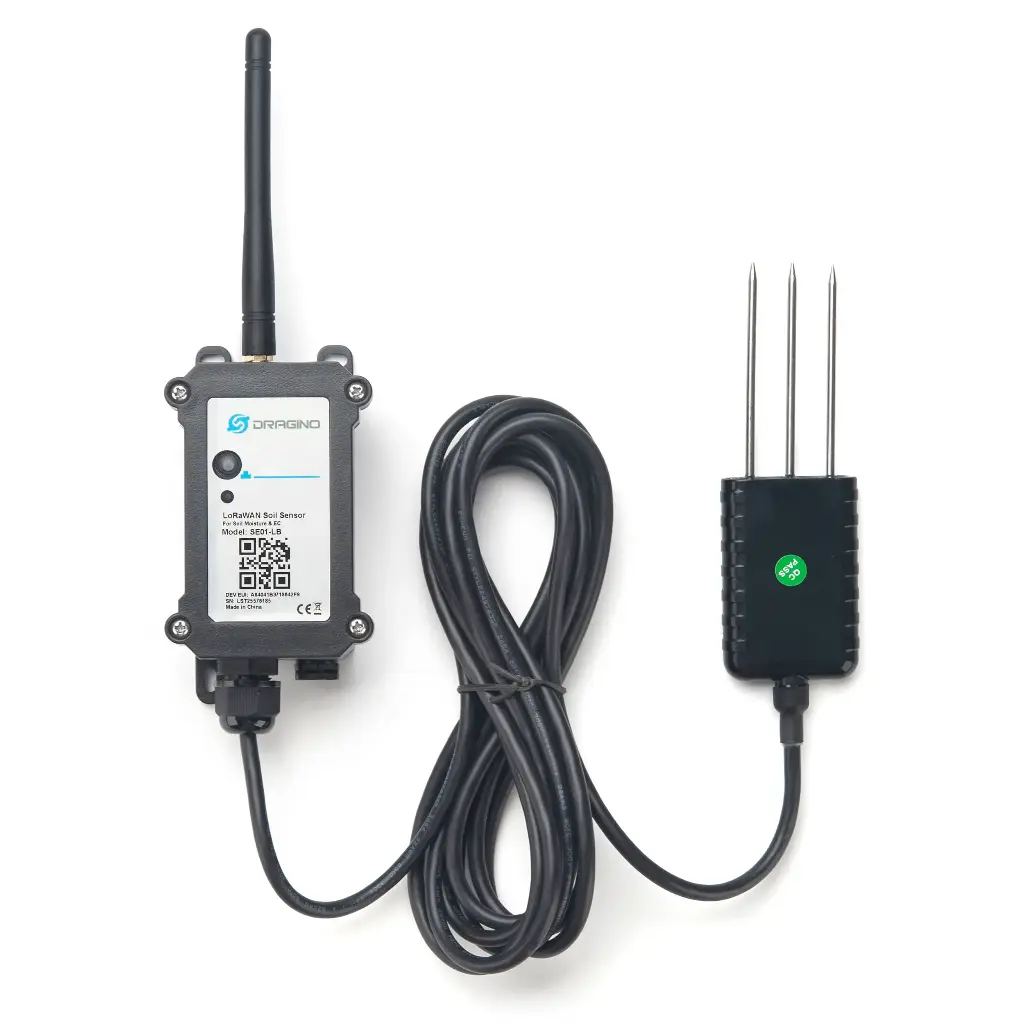

SE01-LB LoRaWAN Soil Moisture, Temperature & EC Sensor

The SE01-LB is a LoRaWAN-based soil moisture and EC sensor designed for smart agriculture and soil monitoring applications. It measures soil moisture, temperature, and electrical conductivity (EC) using the FDR (Frequency Domain Reflectometry) method with built-in temperature and EC compensation for accurate readings.

Calibrated for mineral soil, the SE01-LB ensures reliable performance even in saline-alkali and loamy soils. It supports BLE configuration, wireless OTA firmware updates, and operates for up to 5 years with its 8500 mAh Li/SOCl₂ battery in a rugged IP66-rated waterproof enclosure.

Key Specifications:

• LoRaWAN v1.0.3 Class A | Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865

• Measurements:

  • Soil Moisture: 0–100% V/V | Accuracy: ±3% (0–53%), ±5% (>53%) | Resolution: 0.01%

  • Soil Temperature: –40 ~ 85 °C | Accuracy: ±0.3 °C (–10 ~ 50 °C) | Resolution: 0.01 °C

  • Soil Conductivity: 0–20,000 µS/cm (0–20.0 EC) | Accuracy: ±2% FS | Resolution: 1 µS/cm

• BLE v5.1 configuration & wireless OTA updates

• Power: 8500 mAh Li/SOCl₂ battery (non-rechargeable, up to 5 years)

• IP66 waterproof enclosure | Designed for outdoor use

• Device Size: 19.5 × 12.5 × 5.5 cm | Weight: 0.42 kg

Applications: Smart Agriculture • Soil Monitoring • Irrigation Control • Precision Farming • Environmental Monitoring

USER MANUAL:

SE01-LB_User_Manual

DATA SHEET:

SE01-LB_Datasheet

FIRMWARE:

SE01-LB_Firmware
