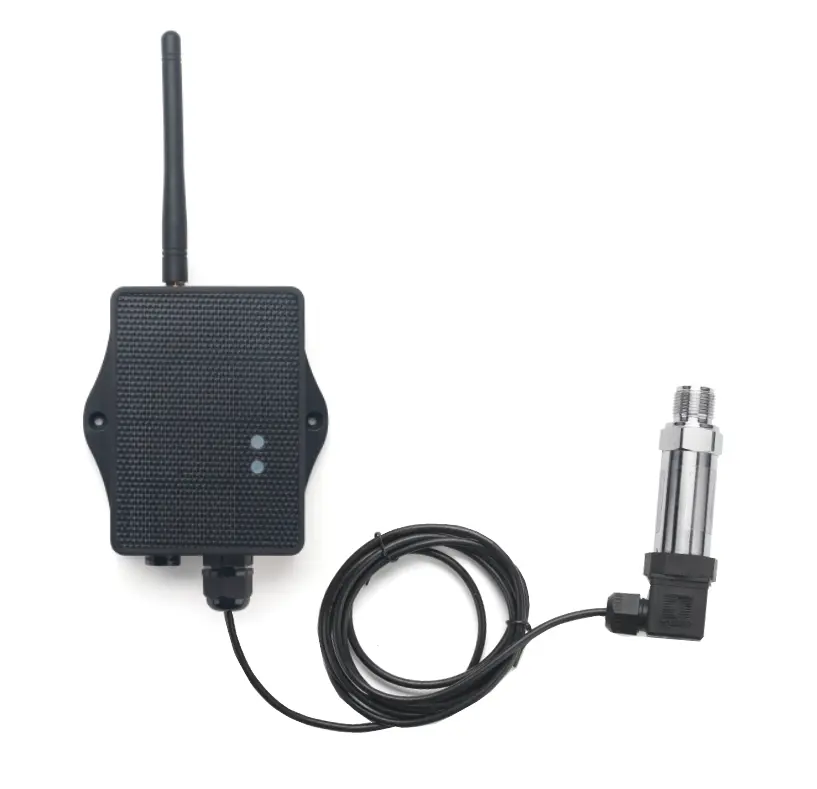

PS-LS-T14-C LoRaWAN® Air / Liquid Pressure Sensor

https://www.aiotkart.com/web/image/product.template/17751/image_1920?unique=4fac9b9

The Dragino PS-LS-T14-C LoRaWAN® Air / Liquid Pressure Sensor is a solar-powered industrial IoT pressure monitoring device designed for accurate air, gas, water pressure, and liquid level measurement. Part of the Dragino PS-LB/LS series, the PS-LS-T14-C supports thread installation type mounting, making it ideal for pipeline systems, compressed air lines, water distribution networks, and industrial process monitoring.

Using LoRaWAN® long-range wireless technology, the PS-LS-T14-C transmits real-time pressure data to a LoRaWAN® IoT server over ultra-long distances with minimal power consumption. The PS-LS variant is powered by a solar panel with a 3000mAh Li-ion battery, ensuring extended maintenance-free operation. It also supports Bluetooth configuration and remote OTA firmware updates for easy deployment and management.

AIoTkart® is an Authorized Dragino Distributor in India, supplying genuine Dragino LoRaWAN® pressure sensors for industrial automation, smart water management, utilities, infrastructure, manufacturing, and institutional IoT deployments.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
4 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Designed for air, gas, and liquid pressure measurement
  • Thread installation type (T14 variant)
  • Solar panel + 3000mAh Li-ion battery (PS-LS version)
  • Ultra-low power consumption
  • Long-range LoRa wireless communication
  • Bluetooth v5.1 local configuration
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware updates
  • Battery level monitoring
  • Pre-loaded unique LoRaWAN® keys for quick activation
  • Multiple pressure ranges available

Micro Controller

  • MCU: 48MHz ARM
  • Flash: 256KB
  • RAM: 64KB

Common DC Characteristics

  • Supply Voltage: Built-in battery, 2.5V ~ 3.6V
  • Operating Temperature: -40°C to 85°C

LoRa Specifications

  • Frequency Range (HF): 862 ~ 1020 MHz
  • Supported Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • Excellent blocking immunity

Current Input Measuring

  • Range: 0 ~ 20mA
  • Accuracy: 0.02mA
  • Resolution: 0.001mA

Voltage Input Measuring

  • Range: 0 ~ 30V
  • Accuracy: 0.02V
  • Resolution: 0.001V

Battery (PS-LS Version)

  • Solar panel + 3000mAh Li-ion rechargeable battery
  • Designed for long-term outdoor deployment
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5uA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

The Dragino PS-LS-T14-C is ideal for industrial and infrastructure IoT deployments across India, including:

  • Industrial compressed air pressure monitoring
  • Water distribution pipeline monitoring
  • Process automation systems
  • Smart water management projects
  • Manufacturing fluid pressure control
  • Utility and municipal infrastructure monitoring
  • HVAC and gas pressure systems
  • Institutional and campus IoT deployments

You can purchase the genuine PS-LS-T14-C from AIoTkart®, the Authorized Dragino Distributor in India, with nationwide shipping and project support.

Yes. The thread installation type makes it ideal for compressed air lines, gas systems, and industrial pipeline pressure monitoring.

Yes. The PS-LS version includes a solar panel with a 3000mAh Li-ion rechargeable battery, designed for long-term outdoor IoT deployments.

Documents

PS-LS-T_User_Manual

Download

PS-LS-T_Datasheet

Download

PS-LS-T_Firmware

Download
