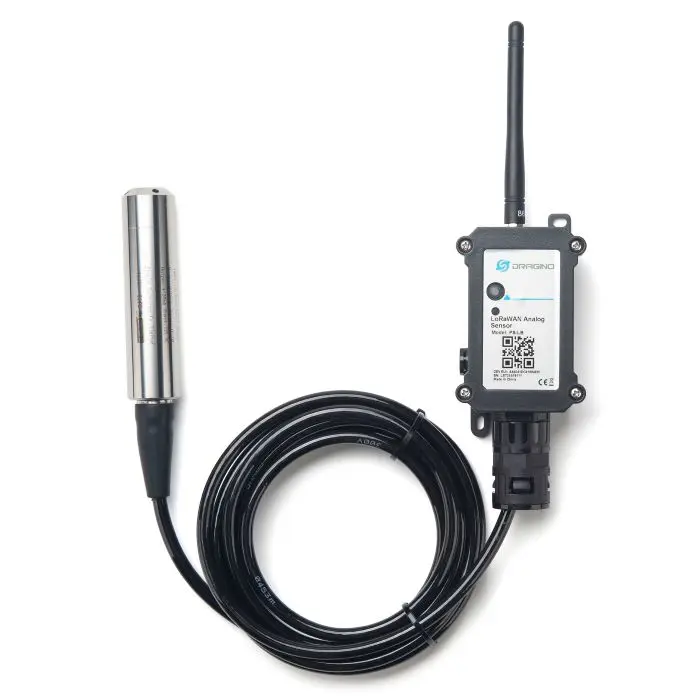

PS-LB-I5 LoRaWAN® Water / Liquid Pressure Sensor

https://www.aiotkart.com/web/image/product.template/17738/image_1920?unique=077962c

The Dragino PS-LB-I5 LoRaWAN® Water / Liquid Pressure Sensor is a professional-grade LPWAN pressure monitoring device designed for accurate water pressure and liquid level measurement across India. As part of the Dragino PS-LB/LS series, the PS-LB-I5 supports immersion-type installation, making it ideal for tanks, borewells, pipelines, and industrial liquid monitoring systems. Using LoRaWAN® wireless technology, it transmits real-time pressure data to IoT servers over long distances while maintaining ultra-low power consumption. AIoTkart®, an Authorized Dragino Distributor in India, supplies genuine PS-LB-I5 sensors for industrial automation, water management, utilities, cold chain, infrastructure, and institutional IoT deployments requiring reliable long-range LoRaWAN® connectivity.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
3 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Designed for water and liquid pressure measurement
  • Immersion type installation (PS-LB-I5 variant)
  • Multiple pressure ranges available
  • Ultra-low power consumption
  • Long-range LoRa wireless communication
  • Bluetooth v5.1 for local configuration
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware updates
  • Battery level monitoring
  • 8500mAh Li/SOCl2 battery (PS-LB version)
  • Solar panel + 3000mAh Li-ion option (PS-LS version)
  • Pre-loaded unique LoRaWAN® keys for quick activation

Micro Controller

  • MCU: 48MHz ARM
  • Flash: 256KB
  • RAM: 64KB

Common DC Characteristics

  • Supply Voltage: Built-in battery, 2.5V ~ 3.6V
  • Operating Temperature: -40°C to 85°C

LoRa Specifications

  • Frequency Range (HF): 862 ~ 1020 MHz
  • Supported Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • Excellent blocking immunity

Current Input Measuring

  • Range: 0 ~ 20mA
  • Accuracy: 0.02mA
  • Resolution: 0.001mA

Voltage Input Measuring

  • Range: 0 ~ 30V
  • Accuracy: 0.02V
  • Resolution: 0.001V

Battery

  • Type: Li/SOCl2 non-rechargeable battery
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5uA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

The Dragino PS-LB-I5 is suitable for water and liquid monitoring projects across India, including:

  • Industrial automation and liquid process monitoring
  • Commercial infrastructure water tank level monitoring
  • Water systems such as borewells, reservoirs, and pipelines
  • Cold chain coolant and liquid monitoring
  • Manufacturing fluid pressure control
  • Utilities distribution and pipeline monitoring
  • Infrastructure projects involving smart water management
  • Campuses & institutions deploying IoT-based water monitoring systems

You can purchase the genuine Dragino PS-LB-I5 from AIoTkart®, the Authorized Dragino Distributor in India, with PAN-India delivery and project-level support.

Yes. The PS-LB-I5 supports LoRaWAN® 1.0.3 Class A and IN865 band, making it suitable for long-range LPWAN-based water pressure and liquid level monitoring across industrial and commercial sites in India.

Yes. The immersion-type PS-LB-I5 is ideal for borewell depth measurement, overhead tanks, reservoirs, and other liquid level monitoring applications.

Documents

PS-LB-I5_User_Manual

Download

PS-LB-I5_Datasheet

Download

PS-LB-I5_Firmware

Download
