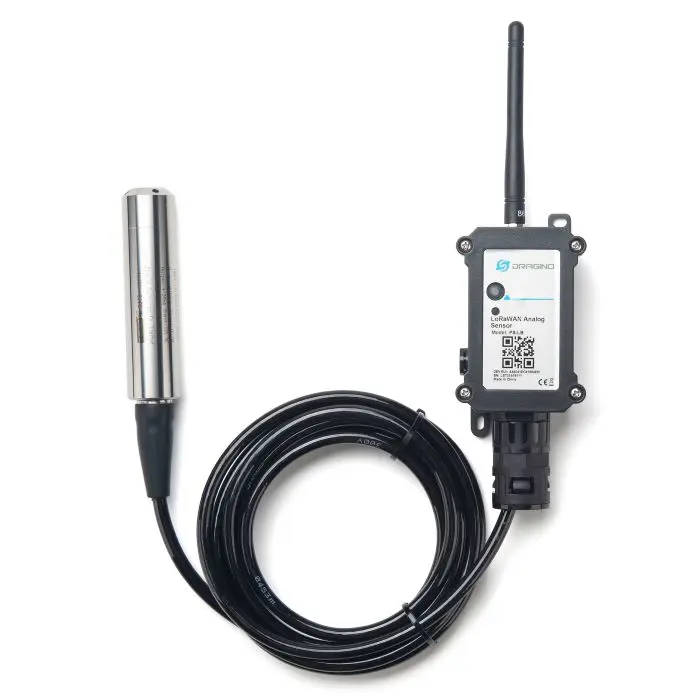

PS-LB-I3 LoRaWAN Water / Liquid Pressure Sensor

The Dragino PS-LB-I3 is a LoRaWAN-enabled water and liquid pressure sensor designed for accurate hydrostatic pressure and liquid level monitoring. Using an immersion-type pressure probe, it measures liquid pressure reliably and transmits data over long distances via LoRaWAN. Its ultra-low power design and high-capacity battery make it ideal for long-term, remote deployments.

Key Specifications

• Protocol: LoRaWAN v1.0.3 Class A

• Measurement Type: Water / liquid pressure (immersion type)

• Pressure Range: 0–3 bar (PS-LB-I3)

• Installation: Immersion probe

• Frequency Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865

• Power Supply: 8500mAh Li-SOCl₂ battery

• Battery Life: Up to 5 years (typical)

• Operating Temperature: –40 °C to +85 °C

• Configuration: Bluetooth v5.1, LoRaWAN downlink

• Firmware: Wireless OTA update

• Uplink: Periodic data transmission

• Power Consumption: Ultra-low power

Applications

Water tank and reservoir level monitoring, borewell and groundwater measurement, irrigation systems, industrial liquid tanks, pipeline pressure monitoring, flood and water resource management.

USER MANUAL:

PS-LB-I_User_Manual

DATA SHEET:

PS-LB-I_Datasheet

FIRMWARE:

PS-LB-I_Firmware
