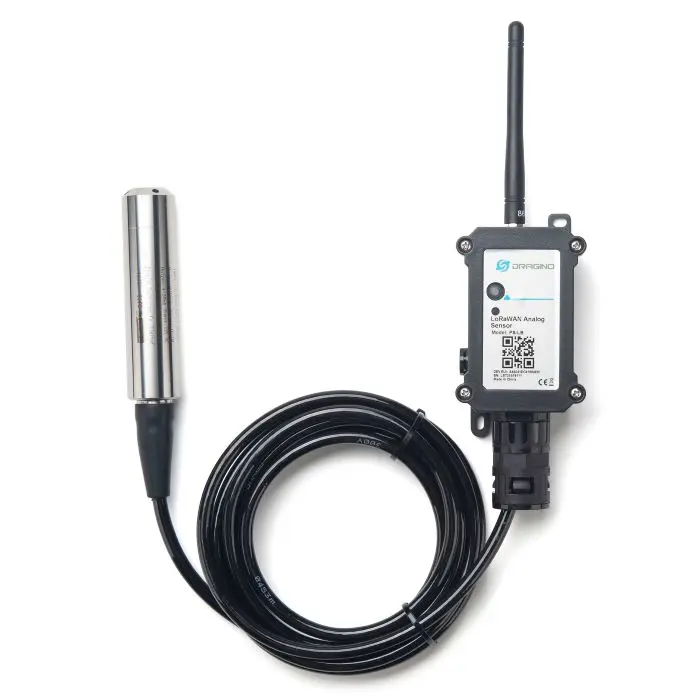

PS-LB-I250 LoRaWAN Water / Liquid Pressure Sensor

The Dragino PS-LB-I250 is a LoRaWAN-enabled water and liquid pressure sensor designed for reliable hydrostatic pressure and liquid level monitoring in industrial, agricultural, and utility applications. Using an immersion-type pressure probe, it measures liquid pressure accurately and transmits data over long distances via LoRaWAN. With ultra-low power consumption and a high-capacity battery, it supports long-term, maintenance-free deployments in remote environments.

Key Specifications

• Protocol: LoRaWAN v1.0.3 Class A

• Measurement Type: Water / liquid pressure (immersion type)

• Pressure Range: Up to 250 kPa (I250 model)

• Installation Type: Immersion probe

• Frequency Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865

• Power Supply: 8500mAh Li-SOCl₂ battery (PS-LB-I250)

• Battery Life: Up to 5 years (typical usage)

• Operating Temperature: –40 °C to +85 °C

• Configuration: Bluetooth v5.1, LoRaWAN downlink

• Firmware: Wireless OTA update

• Uplink: Periodic data transmission

• Power Consumption: Ultra-low power design

Applications

Water tank and reservoir level monitoring, borewell and groundwater pressure measurement, irrigation and agriculture water systems, industrial liquid storage tanks, pipeline liquid pressure monitoring, flood and water resource management systems.

USER MANUAL:

PS-LB_User_Manual

DATA SHEET:

PS-LB_Datasheet

FIRMWARE:

PS-LB_Firmware
