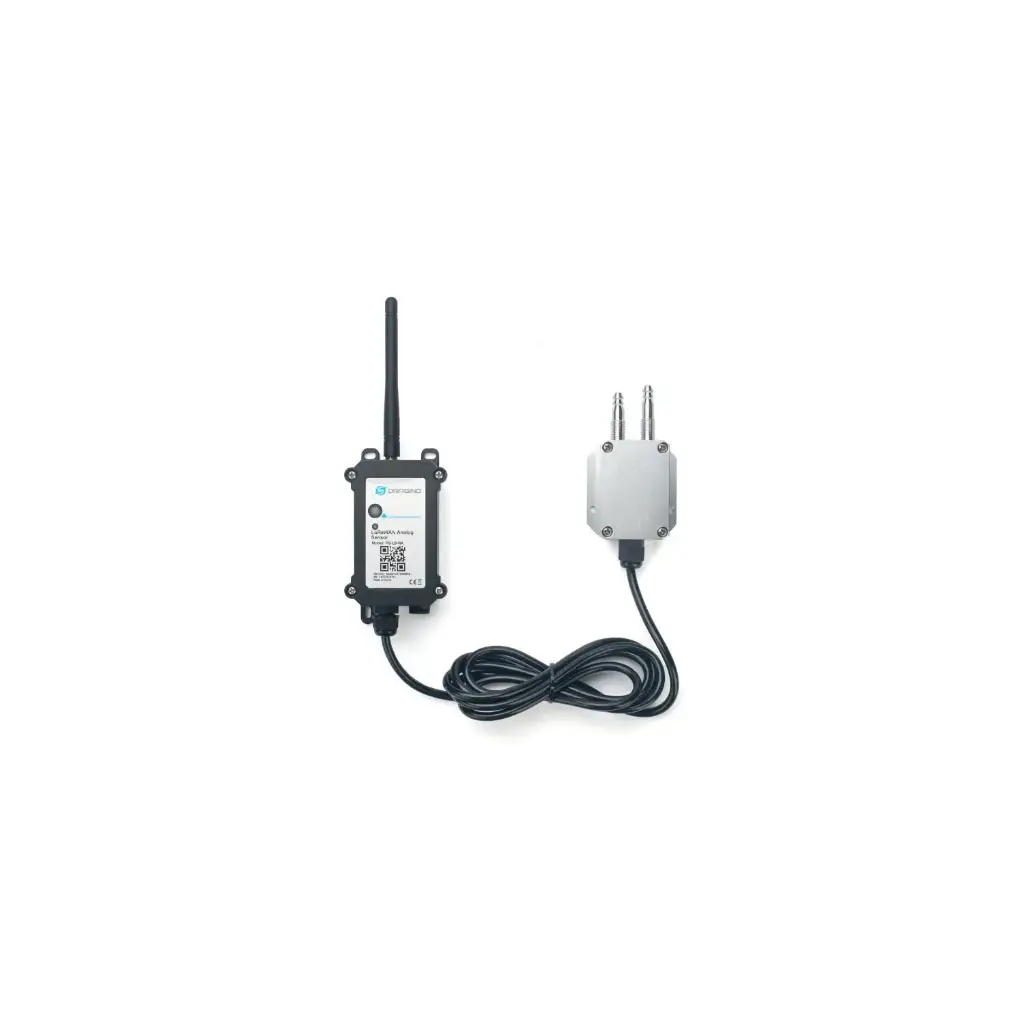

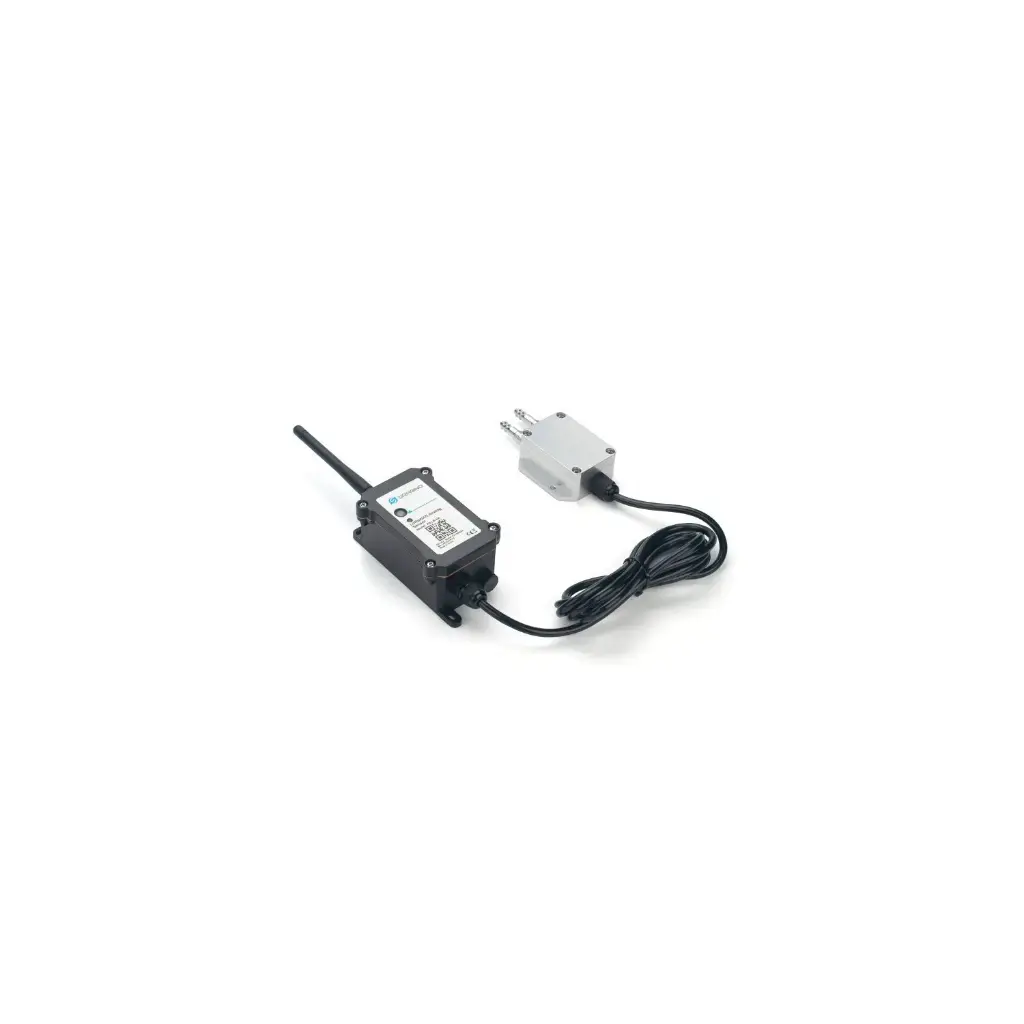

PS-LB-D04 LoRaWAN Differential Pressure Sensor

The Dragino PS-LB-D04 is a LoRaWAN-based differential pressure sensor designed to measure the pressure difference between two air pressure points. Instead of monitoring absolute pressure, it helps identify pressure drops caused by blockages, valve issues, or filter clogging.

With long-range LoRaWAN connectivity, ultra-low power consumption, and industrial-grade design, PS-LB-D04 is well suited for both industrial and building automation environments.

Key Specifications

• Protocol: LoRaWAN v1.0.3 Class A

• Measurement Type: Differential pressure (two air pressure inputs)

• Pressure Range: –100 Pa to 100 kPa (model dependent)

• Frequency Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865

• Power Supply:

  • 8500mAh Li-SOCl₂ battery (PS-LB-D04)

• Battery Monitoring: Supported

• Configuration: Bluetooth v5.1, LoRaWAN downlink

• Firmware: Wireless OTA update

• Uplink Modes: Periodic uplink or alarm-based uplink

• Power Consumption: Ultra-low power for long-term operation

Applications

Indoor air control, HVAC systems, filter clogging detection, industrial airflow monitoring, offshore and subsea gas processing, and remote heating systems.

USER MANUAL:

PS-LB-D_User_Manual

DATA SHEET:

PS-LB-D_Datasheet

FIRMWARE:

PS-LB-D_Firmware
