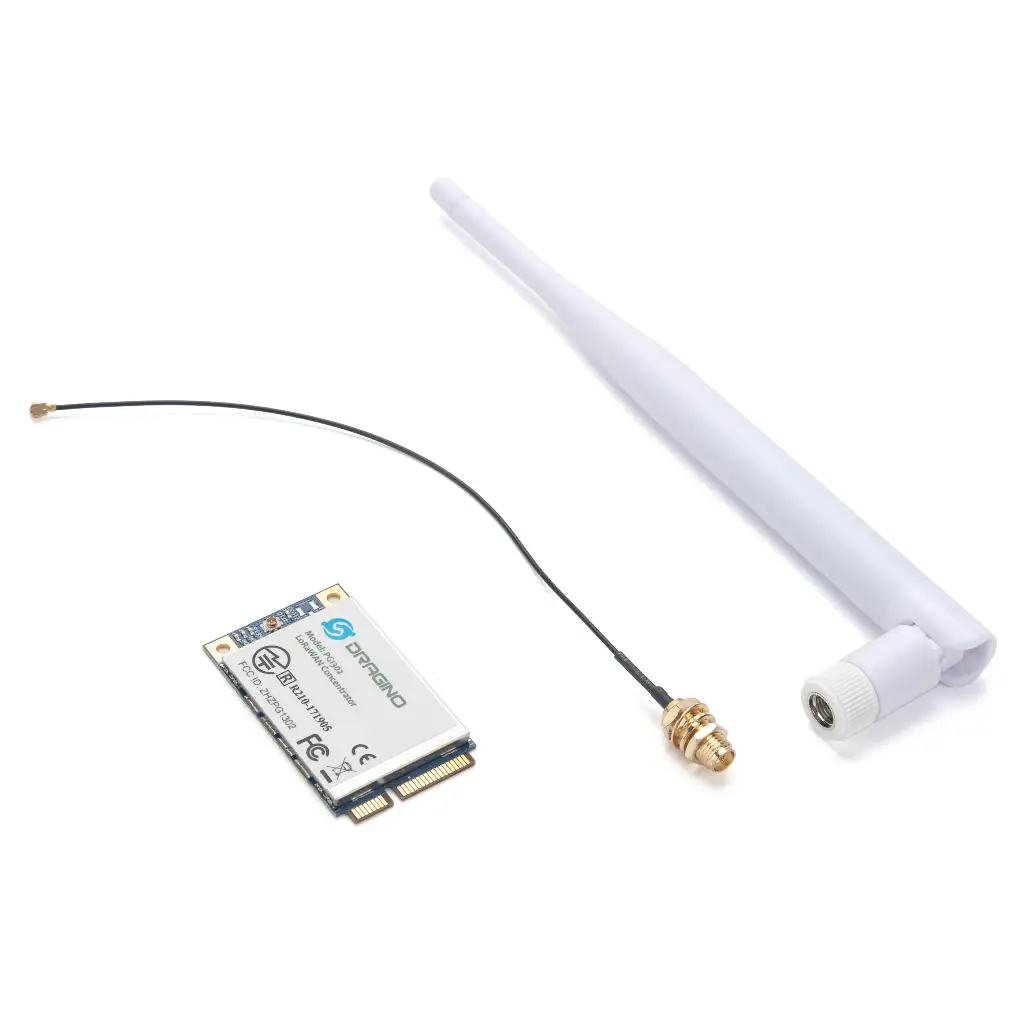

PG1302 Multi-Channel LoRaWAN Concentrator

The Dragino PG1302 is a high-performance multi-channel LoRa transmitter/receiver based on the Semtech SX1302 solution, designed to simultaneously receive multiple LoRa packets across different channels and spreading factors. Optimized for Raspberry Pi–based gateways, it enables robust, large-scale IoT and smart metering networks supporting up to 5,000 nodes per km² in moderately interfered environments. PG1302 supports easy deployment via Dragino’s pre-built OS or raw LoRaWAN drivers.

Key Specifications

• LoRa Chipset: Semtech SX1302

• Sensitivity: Up to –140 dBm

• Platform Support: Raspberry Pi 3B / 3B+ / 4

• Interface: Mini-PCIe, SPI

• RF Connector: 1 × I-PEX

• Power Input: 5 V, 1 A (supports 3.3 V & 5 V logic)

• Operating Temperature: –40 °C to +80 °C

• Device Size: 18 × 8 × 4 cm

• Weight: 150 g

Applications

LoRaWAN gateways, smart metering networks, large-scale IoT deployments, smart cities, industrial IoT, and research or testbed LoRa concentrators.

USER MANUAL:

PG1302_User_Manual

DATA SHEET:

PG1302_Datasheet
