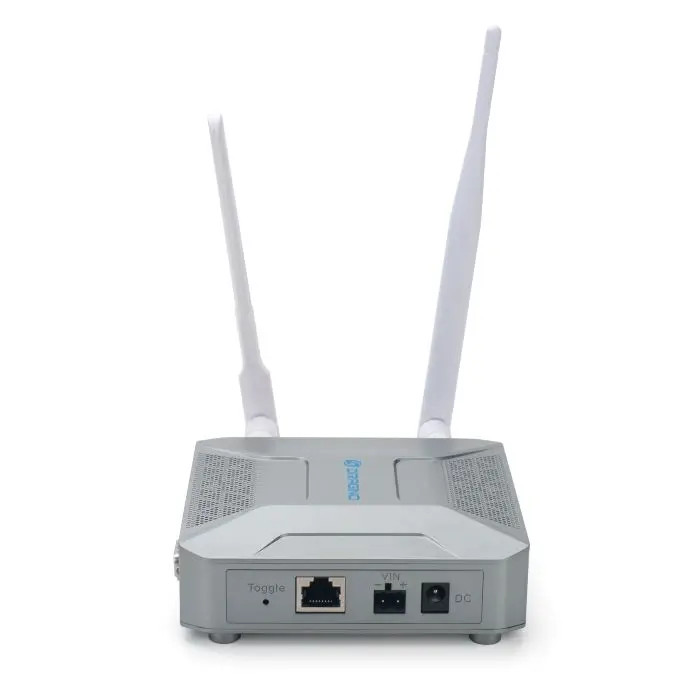

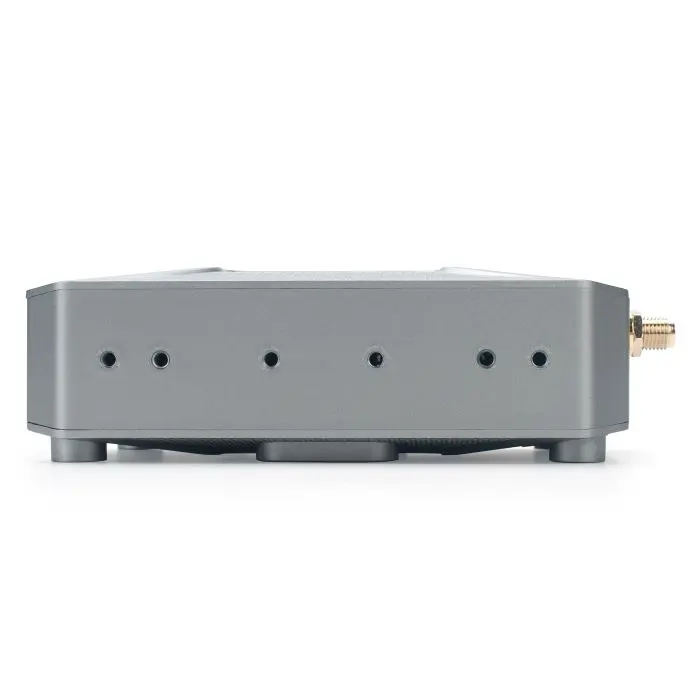

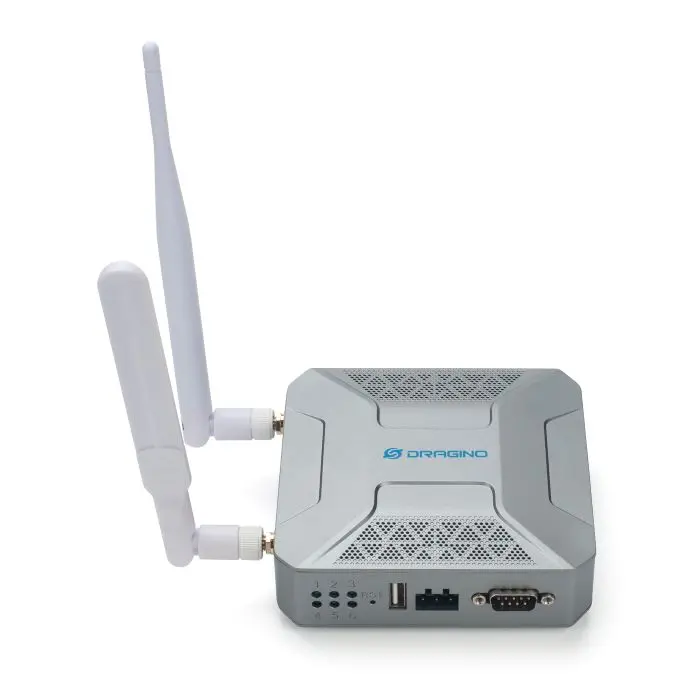

MS48-LR-EC25 LoRaWAN to RS485 Bridge

The Dragino MS48-LR-EC25 is an open-source industrial LoRaWAN to Modbus gateway with integrated 4G LTE (EC25 module), designed to bridge LoRaWAN wireless devices with IP and PLC/SCADA systems via Modbus. It supports Ethernet, WiFi, and cellular connectivity, making it ideal for remote and distributed deployments where wired networks are unavailable. With a built-in ChirpStack LoRaWAN server and Node-RED application server, the MS48-LR-EC25 enables fast, standalone IoT system deployment without external cloud dependency.

Key Specifications

• Gateway Type: LoRaWAN to Modbus (Slave mode)

• LoRaWAN: Multi-channel gateway, 10 parallel demodulation paths

• LoRa Sensitivity: Up to –140 dBm (SX1250 front-end)

• Connectivity: Ethernet, WiFi 802.11 b/g/n, 4G LTE (EC25 module)

• Built-in Services: ChirpStack LoRaWAN Server, Node-RED Application Server

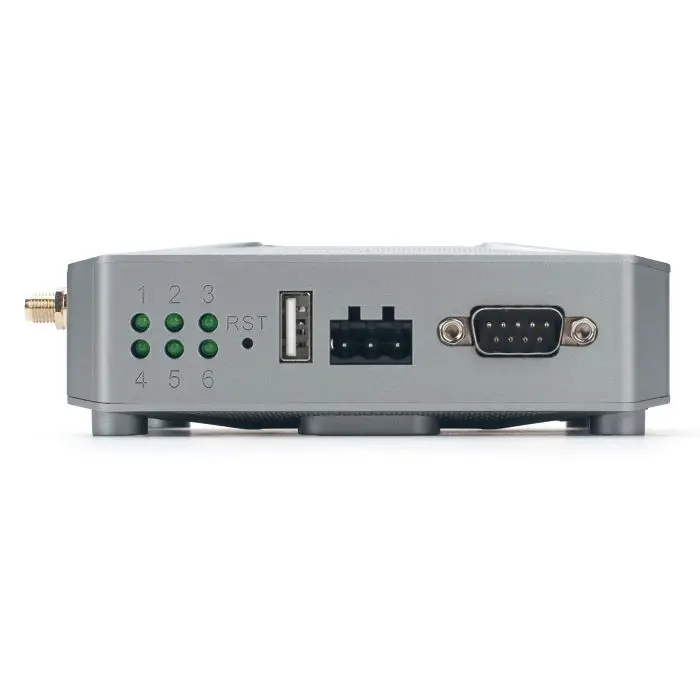

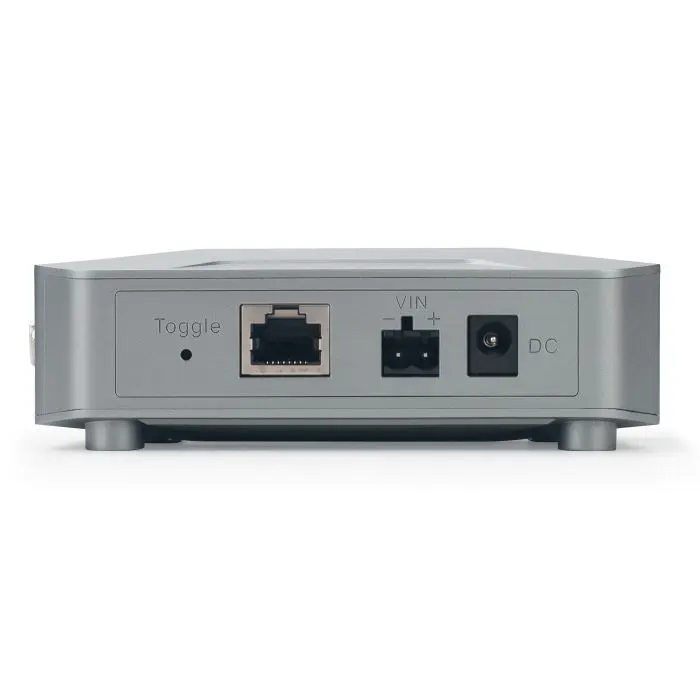

• Interfaces: RS485, RS232, RJ45 Ethernet, USB 2.0, Mini-PCIe

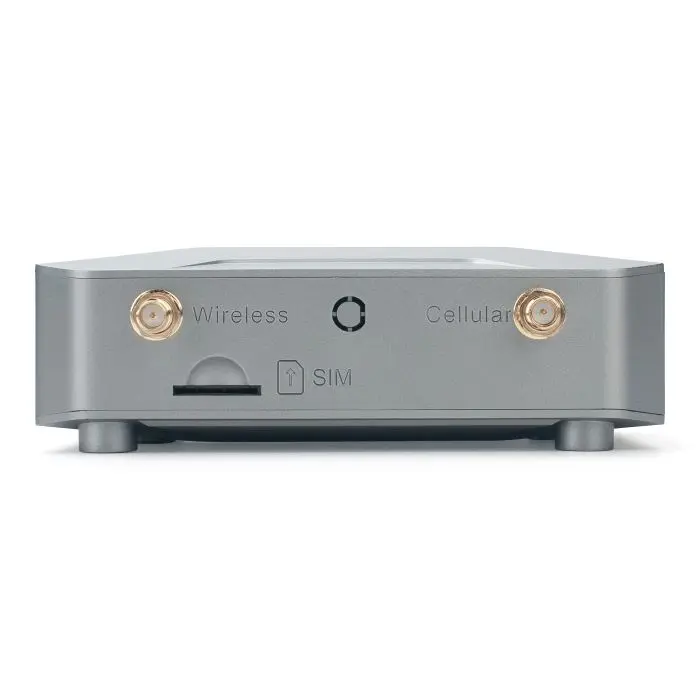

• Cellular: Quectel EC25 LTE, SIM slot, 2× 4G antennas

• System: Open-source Debian OS, Web GUI & SSH management

• CPU: Quad-core Cortex-A7 @ 1.2 GHz

• Memory: 512 MB RAM, 4 GB eMMC

• Power Input: 12 V DC, 2 A

• Operating Temperature: –20 °C to +70 °C

Applications

Industrial automation and SCADA integration, remote IoT deployments, smart agriculture, smart metering, logistics and supply chain monitoring, smart factories, and smart city infrastructure where cellular backhaul is required.

USER MANUAL :

MS48_User_Manual

DATASHEET :

MS48-LR_Datasheet
