MDS200-LB LoRaWAN® Microwave Radar Sensor

https://www.aiotkart.com/web/image/product.template/17720/image_1920?unique=7479237

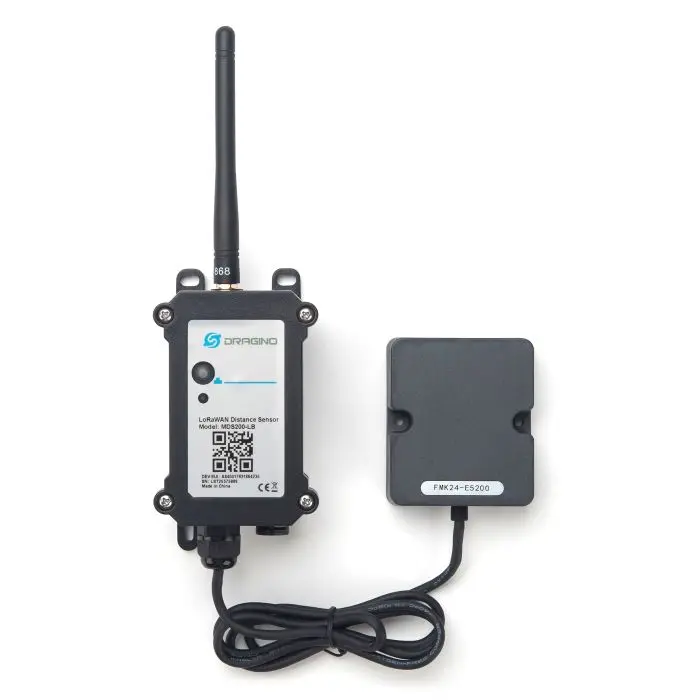

The Dragino MDS200-LB LoRaWAN® Microwave Radar Sensor is a long-range industrial distance measurement device designed for reliable performance in harsh outdoor and industrial environments. As an Authorized Dragino Distributor in India, AIoTkart® supplies the MDS200-LB for smart infrastructure, water level monitoring, sewer systems, parking management, and industrial automation projects.

Using 24GHz FMCW microwave radar technology, the MDS200-LB delivers accurate and stable measurements even in condensation, humid, and dusty environments. Unlike ultrasonic or LiDAR sensors, microwave radar technology ensures consistent performance even when water droplets or thick dust accumulate on the sensor surface.

A key advantage of the MDS200-LB is its dual-distance detection capability. It can measure the closest object and the next object behind it, making it ideal for layered detection scenarios such as tank level monitoring and parking management systems.

The configurable alarm feature allows the sensor to automatically switch to shorter uplink intervals when measured distance exceeds predefined thresholds, enabling near real-time alerts in critical applications.

Powered by an 8500mAh Li-SOCl₂ battery, the MDS200-LB is designed for up to 5 years of maintenance-free operation in low-power LoRaWAN® deployments.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
6 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • 24GHz FMCW Microwave Radar technology
  • Measurement range: 0.5m to 20m
  • Accuracy: ±0.1m
  • Resolution: 0.01m
  • Dual-distance detection (nearest and second object)
  • Configurable alarm uplink mode
  • Measurement angle: 78° horizontal × 23° vertical
  • Reliable in condensation and dusty environments
  • Ultra-low power consumption
  • 8500mAh Li-SOCl₂ battery (MDS200-LB variant)
  • BLE v5.1 for local configuration
  • Remote configuration via LoRaWAN®
  • Wireless OTA firmware update support
  • AT command configuration
  • Periodic uplink transmission
  • Battery level monitoring
  • Pre-loaded LoRaWAN® keys for quick deployment
  • Supports IN865 band

General Specifications

  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature: -40°C to +85°C
  • Designed for long-term outdoor deployment

Radar Probe Specifications

  • Measuring Method: FMCW
  • Frequency: 24.000 ~ 24.500 GHz
  • Measurement Output Power: 6 dBm
  • Measurement Range: 0.5 ~ 20 m
  • Accuracy: ±0.1 m
  • Resolution: 0.01 m
  • Measurement Angle: 78° (H) × 23° (V)

LoRaWAN® Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Bands: IN865, EU868, US915, AS923, AU915, EU433, CN470, KR920
  • Frequency Range: 862 ~ 1020 MHz
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Power Specifications (MDS200-LB)

  • Battery Type: Li/SOCl₂ (non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)
  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit: 125mA @ 20dBm, 82mA @ 14dBm

The Dragino MDS200-LB LoRaWAN® Microwave Radar Sensor is suitable for:

  • Water tank and liquid level monitoring
  • Bottom water level monitoring
  • Sewer monitoring systems
  • Horizontal distance measurement
  • Parking management systems
  • Smart waste bin monitoring
  • Object proximity and presence detection
  • Robotics and obstacle avoidance
  • Industrial automation
  • Smart city infrastructure projects

The MDS200-LB measures distances from 0.5 meters to 20 meters with ±0.1m accuracy.

Microwave radar performs reliably in humid, dusty, and condensation-heavy environments where ultrasonic or LiDAR sensors may provide inaccurate readings.

The 8500mAh Li-SOCl₂ battery is designed to support up to 5 years of operation depending on transmission interval and configuration.

Documents

MDS200-LB_User_Manual

Download

MDS200-LB_Datasheet

Download

MDS200-LB_Firmware

Download
