LTC2-LB LoRaWAN® Temperature Sensor

https://www.aiotkart.com/web/image/product.template/17714/image_1920?unique=6c1ace6

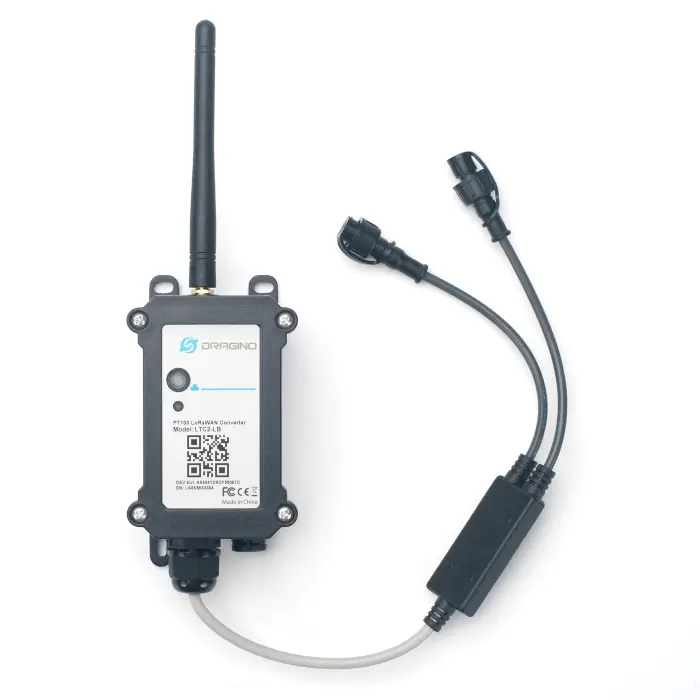

The Dragino LTC2-LB LoRaWAN® Temperature Sensor is an industrial-grade PT100 temperature transmitter designed for high-accuracy temperature monitoring across India. As an Authorized Dragino Distributor in India, AIoTkart® supplies the genuine LTC2-LB for industrial automation, food safety, laboratories, cold chain logistics, and infrastructure projects. This LoRaWAN® temperature transmitter supports up to two PT100 temperature monitoring channels and uplinks precise temperature data to an IoT server via LoRaWAN® protocol. Built on LoRaWAN® 1.0.3 Class A, the LTC2-LB ensures ultra-low power consumption, long-range communication, and reliable operation in harsh industrial environments. Powered by an 8500mAh Li/SOCl2 battery, with BLE configuration and OTA firmware support, it is ideal for long-term industrial IoT deployments across India.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
2 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Supports up to 2 PT100 temperature channels (LTC2-LB)
  • Compatible with 3-wire PT100 probes
  • High-accuracy Class A PT100 support
  • Long-range LoRa communication
  • Temperature alarm function
  • Datalog feature for offline data storage
  • Bluetooth v5.1 configuration support
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware update
  • 8500mAh Li/SOCl2 industrial battery
  • Ultra-low power consumption

Electrical Characteristics

  • Supply Voltage: Built-in battery, 2.5V ~ 3.6V
  • Operating Temperature: -40°C to 85°C

PT100 Temperature Sensor Compatibility

DR-SI – Standard IP68

  • Installation: Insert
  • Probe Dimension: φ5 × 30mm
  • Measurement Range: -60°C to 200°C
  • Cable Length: 2m
  • Class A PT100

DR-LT – Low Temperature

  • Measurement Range: -196°C to 150°C
  • Class A PT100

DR-HT – High Temperature

  • Measurement Range: -70°C to 450°C
  • Class A PT100

DR-UHT – Ultra High Temperature

  • Measurement Range: -40°C to 600°C
  • Class A PT100

DR-FSA – Food Safety Type

  • Measurement Range: -40°C to 260°C
  • Class A PT100

DR-FT – Flat Type

  • Measurement Range: -60°C to 200°C
  • Class A PT100

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • Supported Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
  • Max +22 dBm RF output
  • RX Sensitivity: up to -139 dBm
  • Excellent blocking immunity

Battery Specifications

  • Type: Li/SOCl2 non-rechargeable battery
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5uA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm / 82mA @ 14dBm

The Dragino LTC2-LB LoRaWAN® Temperature Sensor is suitable for:

  • Industrial automation and process control
  • Commercial infrastructure temperature monitoring
  • Water systems and utility infrastructure
  • Cold chain logistics and refrigerated storage
  • Food safety compliance monitoring
  • Manufacturing plants and industrial equipment
  • Laboratories and research facilities
  • Campuses and institutional buildings

You can purchase the genuine Dragino LTC2-LB LoRaWAN® Temperature Sensor from AIoTkart®, the Authorized Dragino Distributor in India, with nationwide delivery and bulk project support.

Yes, the LTC2-LB supports LoRaWAN® 1.0.3 Class A protocol and is compatible with standard LoRaWAN® gateways in India, including deployments operating on the IN865 band.

Yes, the LTC2-LB supports up to two PT100 temperature monitoring channels, making it suitable for industrial processes requiring multi-point temperature measurement.

Documents

LTC2-LB_User_Manual

Download

LTC2-LB_Datasheet

Download

LTC2-LB_Firmware

Download
