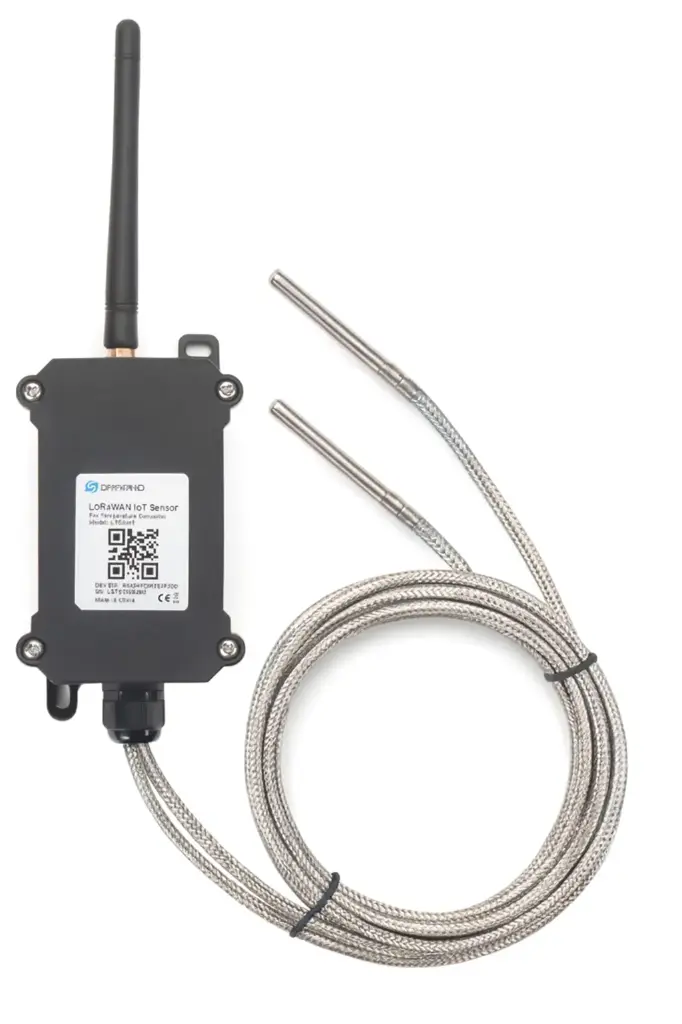

LTC2-HT2 LoRaWAN Temperature Sensor

The Dragino LTC2-HT2 is an industrial LoRaWAN® temperature transmitter designed for high-accuracy, dual-channel temperature monitoring using PT100 probes. It converts PT100 resistance values into precise temperature readings and transmits the data to an IoT server over the LoRaWAN v1.0.3 Class A protocol.

Powered by a high-capacity 8500mAh Li-SOCl₂ battery, the LTC2-HT2 supports 2–10 years of operation, depending on network conditions and reporting intervals. With factory calibration, BLE/LoRa or UART configuration, battery monitoring, and console-based firmware upgrades, it is well suited for demanding industrial and cold-chain environments.

Key Specifications:

• LoRaWAN® v1.0.3 Class A compliant

• Supports up to 2 PT100 temperature channels

• 3-wire PT100 probe support (pre-loaded or third-party)

• Dual internal 16-bit ADCs with factory calibration

• Configuration via LoRaWAN or UART

• Firmware upgrade via console

• 8500mAh Li-SOCl₂ battery for long-term use

• Battery level monitoring and data upload

• Wall-mountable industrial design

• Pre-loaded unique LoRaWAN keys for auto-registration

Applications:

Cold chain monitoring, food safety, logistics and warehousing, industrial process monitoring, pharmaceutical storage, and environmental temperature tracking.

USER MANUAL :

LTC2_User_Manual

DATA SHEET :

LTC2_Datasheet

FIRMWARE :

LTC2_Firmware
