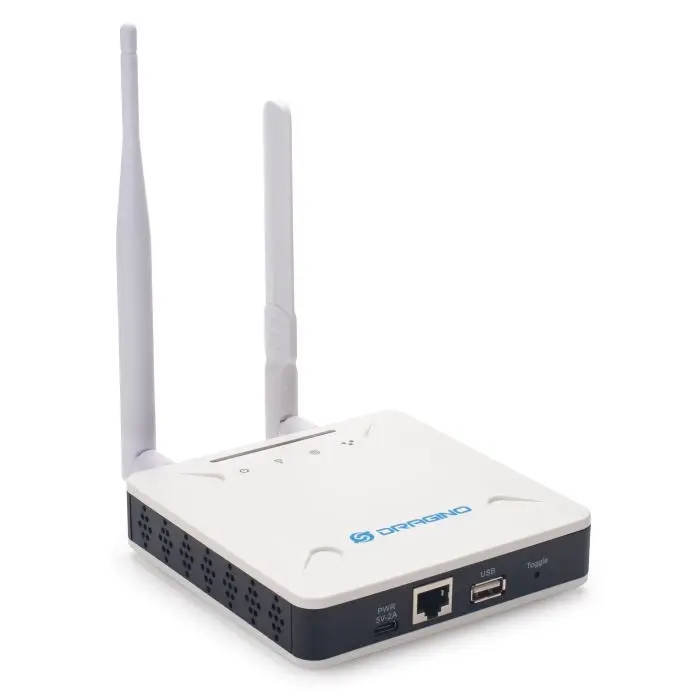

LPS8-V2-EC25 Indoor LoRaWAN Gateway
11 Units sold in last 24 hours
The Dragino LPS8v2-EC25 is an open-source LoRaWAN® gateway that bridges LoRa wireless networks to IP networks via WiFi, Ethernet, or Cellular (4G LTE) connectivity. It provides long-range, low-power communication and is fully compatible with LoRaWAN protocol, supporting Semtech UDP Packet Forwarder, LoRaWAN Basic Station, and ChirpStack MQTT Bridge — ensuring seamless integration with most major LoRaWAN platforms.
The LPS8v2-EC25 also includes a built-in LoRaWAN Server, ChirpStack local network server, and Node-RED application server, enabling IoT solutions to be deployed without third-party cloud dependencies. With auto-provisioning, remote management, and customizable regional settings, this gateway simplifies large-scale IoT network deployment and maintenance.
Specifications:
Operating System: Open-source Debian system
Processor: Quad-core Cortex-A7, 1.2 GHz, 512MB RAM, 4GB eMMC
Connectivity: Ethernet, WiFi 802.11 b/g/n, Cellular 4G (EC25 Module)
RF Performance: Max output power 27 dBm; sensitivity –140 dBm
Supported Modes: Semtech UDP Forwarder, LoRaWAN Basic Station, ChirpStack MQTT Bridge
Applications:
Smart buildings, logistics, smart metering, precision agriculture, industrial automation, and smart city infrastructure.
USER MANUAL:
DATA SHEET:
