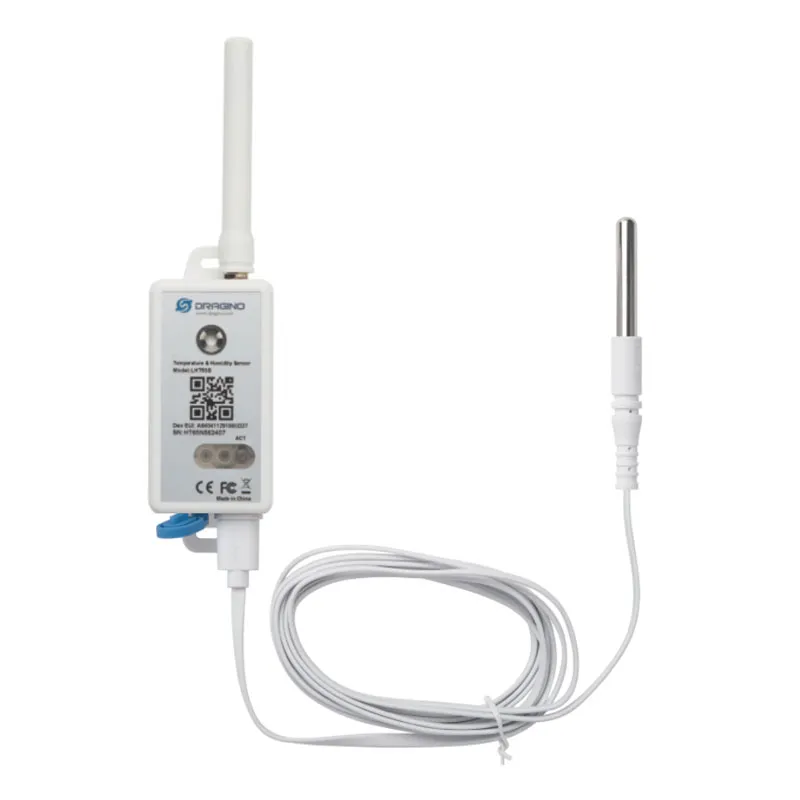

[LHT65S-E3] LoRaWAN Temperature, Humidity sensor

The Dragino LHT65S-E3 Temperature & Humidity sensor is a Long Range LoRaWAN Sensor. It includes a built-in Temperature & Humidity sensor and has an external sensor connector to connect to an external Temperature Sensor.

The LHT65S-E3 allows users to send data and reach extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, building automation, and so on.

LHT65S-E3 has a built-in 2400mAh non-chargeable battery which can be used for up to 10 years*.

LHT65S-E3 is full compatible with LoRaWAN v1.0.3 Class A protocol, it can work with a standard LoRaWAN gateway.

LHT65S-E3 supports Datalog Feature. It will record the data when there is no network coverage and users can retrieve the sensor value later to ensure no miss for every sensor reading.

*The actual battery life depends on how often to send data, please see the battery analyzer chapter.

USER MANUAL :

LHT65S-E3_User manual

DATASHEET :

LHT65S-E3_Datasheet

FIRMWARE :

LHT65S-E3_Firmware
