LHT65S-DS LoRaWAN Door Sensor
6 Units sold in last 24 hours

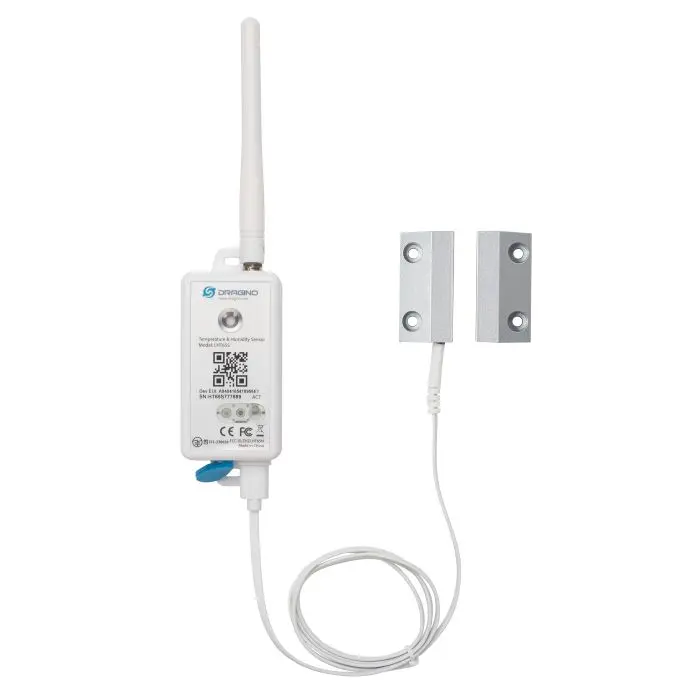

The Dragino LHT65S-DS is a long-range LoRaWAN® door sensor designed to monitor door open/close status along with temperature and humidity data for environmental insights. It features a built-in temperature & humidity sensor and an external metal magnetic door sensor for accurate door state detection.
Using LoRaWAN v1.0.3 Class A protocol, the LHT65S-DS transmits data over long distances with minimal power consumption. It also supports remote configuration, firmware upgrades, and a tri-color LED indicator for operational status. Powered by a 2400mAh Li-SOCl₂ non-rechargeable battery, the device offers up to 10 years of operation, making it ideal for industrial, commercial, and building automation applications.
Specifications:
Protocol: LoRaWAN v1.0.3 Class A compliant
Built-in Sensors: Temperature (–40°C to +80°C, ±0.3°C), Humidity (0–96% RH, ±3% RH)
External Probe: Metal door sensor, 1m cable length, ~3cm detect distance
Battery: 2400mAh Li-SOCl₂ non-rechargeable, up to 10 years of life
Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
Applications:
Irrigation systems, smart metering, smart cities, building automation, and security monitoring
USER MANUAL:
DATA SHEET:
FIRMWARE:
