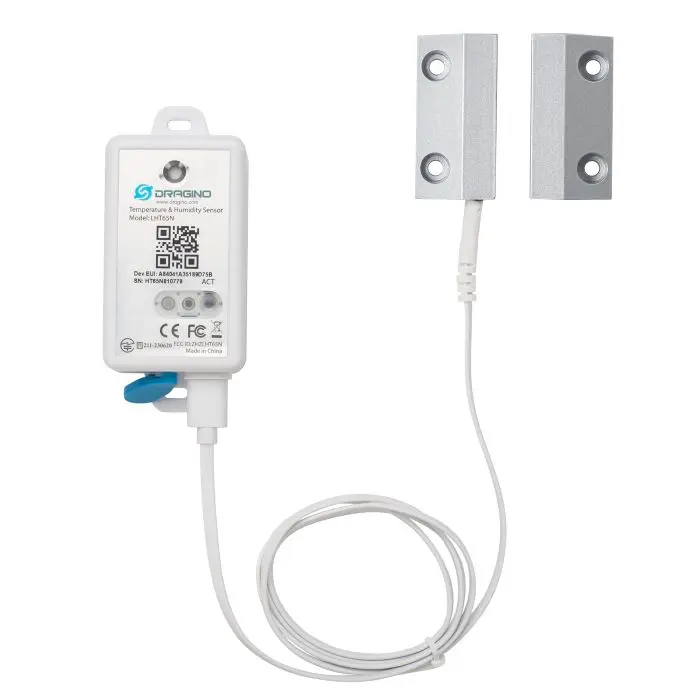

LHT65N-DS LoRaWAN Door Sensor

The Dragino LHT65N-DS is a long-range LoRaWAN® Door Sensor designed for smart building and industrial IoT applications. It includes a built-in temperature & humidity sensor along with a metal door sensor to monitor open/close status accurately.

Using LoRaWAN v1.0.3 Class A protocol, the device ensures ultra-long range communication with low power consumption. It also supports remote configuration via LoRaWAN downlink and firmware upgrade via program port. Powered by a 2400mAh non-rechargeable battery, it offers up to 10 years of operation.

Specifications:

1. Protocol: LoRaWAN v1.0.3 Class A compliant

2. Built-in Sensors: Temperature (–40°C to +80°C, ±0.3°C), Humidity (0–96%RH, ±3%RH)

3. Door Sensor: Aluminum alloy, 1m cable length, 3cm detect distance

4. Battery: 2400mAh Li-SOCl₂ non-rechargeable, up to 10 years life

5. Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915

Applications:

Smart buildings, door monitoring, irrigation systems, smart metering, and automation

USER MANUAL:

LHT65N-DS_User_Manual

DATA SHEET:

LHT65N-DS_Datasheet

FIRMWARE:

LHT65N-DS_Firmware
