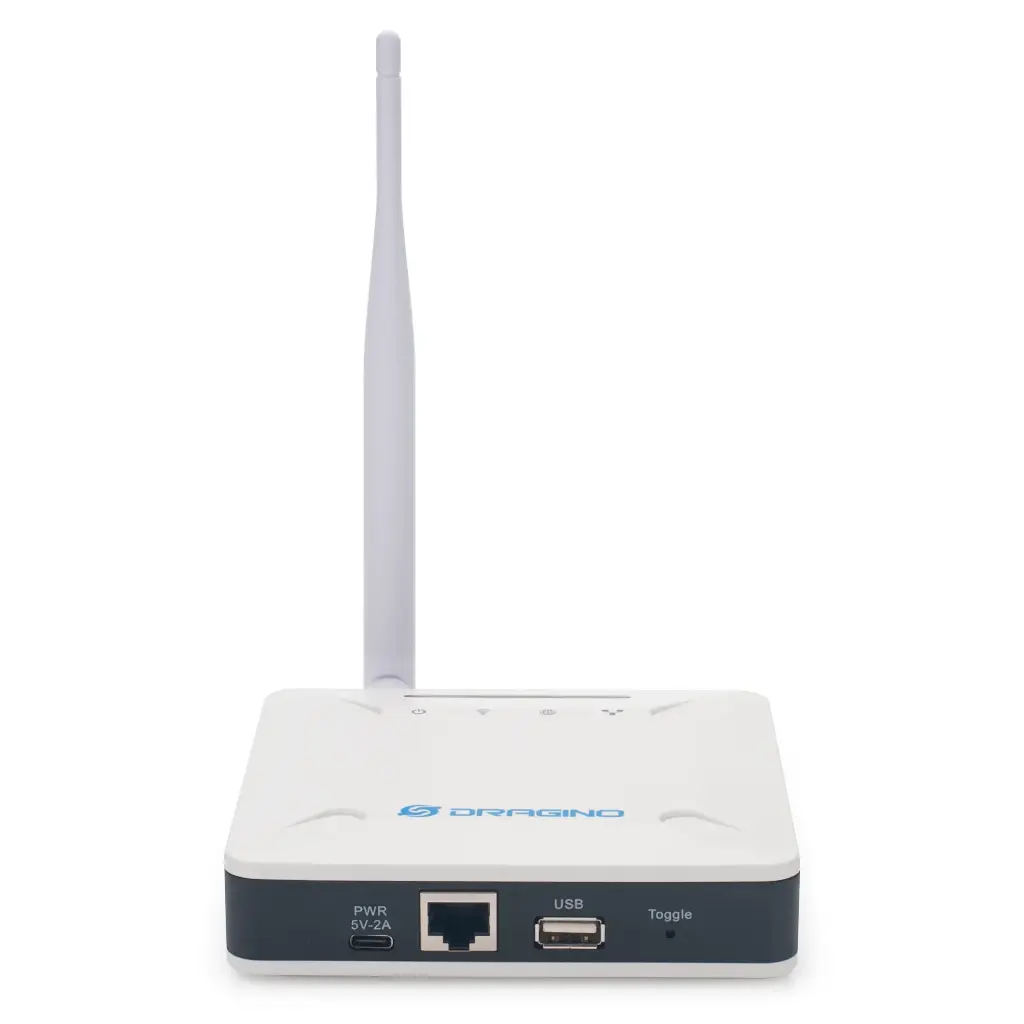

LG01-V2 Indoor LoRa Gateway

The LG01v2 is an open-source single-channel LoRa gateway designed to bridge LoRa wireless networks with IP networks via Wi-Fi or Ethernet. Optimized for peer-to-peer (P2P) LoRa communication rather than LoRaWAN, it provides a cost-effective solution for private LoRa deployments and IoT experimentation.

Built on an open-source Debian Linux system, the LG01v2 features a 1.2 GHz Quad-Core Cortex-A7 CPU, 512 MB RAM, and 4 GB eMMC storage, offering flexibility for customization and local application development. It includes Node-RED, supports remote management, and is ideal for prototyping and small-scale IoT systems.

Key Specifications:

• Open Source Debian System with Web GUI & SSH Access

• CPU: Quad-Core Cortex-A7 1.2 GHz | RAM: 512 MB | Storage: 4 GB eMMC

• Connectivity: Ethernet (10/100 Mbps) & Wi-Fi 802.11 b/g/n

• Supports Peer-to-Peer LoRa Communication

• Built-in Node-RED Local Application Server

• Remote Monitoring & Auto-Provisioning

• Power Input: 5 V DC / 2 A

• Operating Temperature: –20 ~ 65 °C

• Device Size: 12 × 12 × 3 cm | Weight: 0.187 kg

• Package Size: 14.5 × 13.5 × 6 cm | Weight: 0.3 kg

Applications: Private LoRa Networks • IoT Development • Remote Data Logging

USER MANUAL:

LG01-V2_User_Manual

DATA SHEET:

LG01-V2_Datasheet
