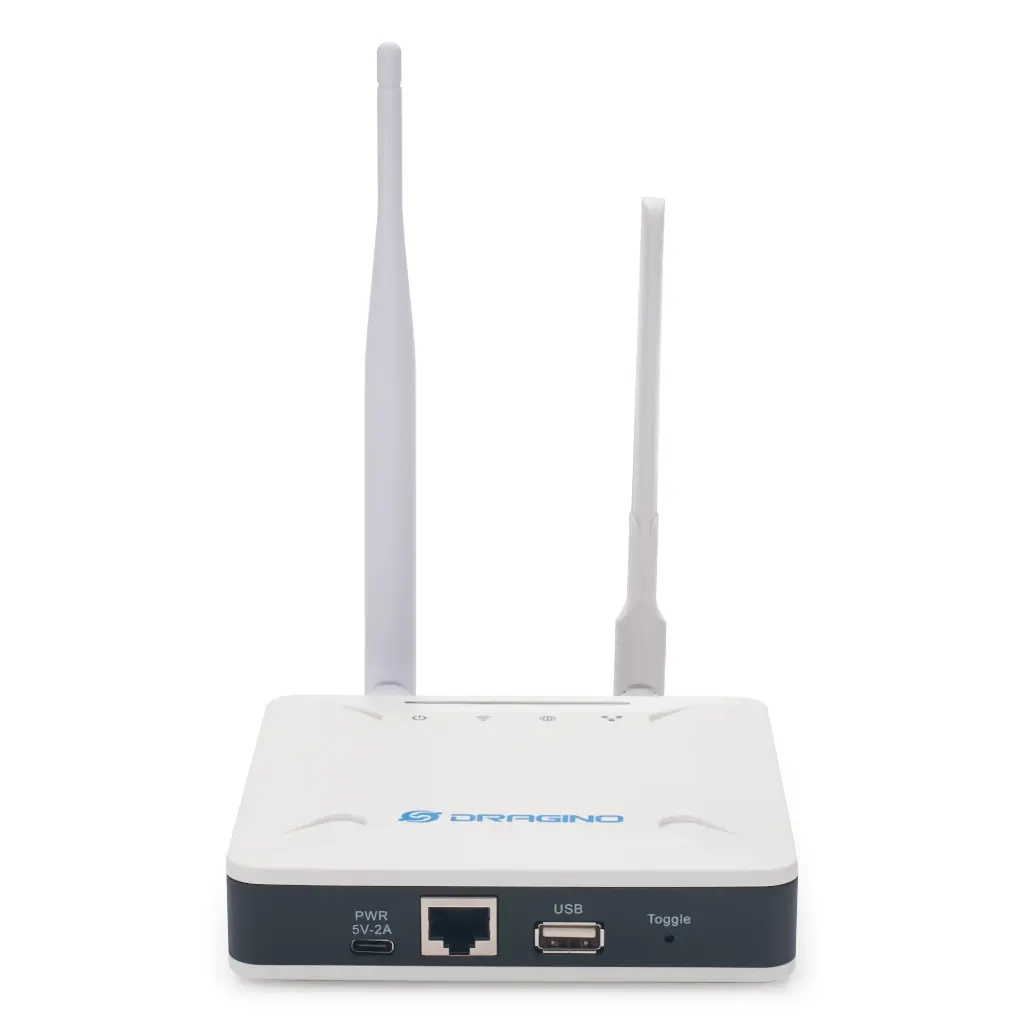

LG01-V2-EC25 Indoor LoRa Gateway

The Dragino LG01v2-EC25 is an open-source single-channel LoRa gateway designed to bridge LoRa wireless networks to IP networks via WiFi, Ethernet, or Cellular (4G EC25 module). It is ideal for peer-to-peer (P2P) LoRa applications, enabling long-range communication with minimal deployment cost.

Powered by an open-source Debian Linux system, it allows users to develop and customize their own software. With a 1.2 GHz Quad-Core CPU, 4GB eMMC storage, and 512MB RAM, the LG01v2-EC25 is capable of running edge applications such as Node-RED for local automation. It also supports remote management and auto-provisioning for large-scale deployments.

Key Specifications:

1. Processor: Quad-Core Cortex-A7 @ 1.2GHz

2. Memory: 512MB RAM, 4GB eMMC storage

3. Connectivity: Ethernet, WiFi 802.11 b/g/n, optional 4G (EC25 module)

4. Operating Temperature: –20°C to +65°C

5. Power Input: 5V DC, 2A

Applications:

Private LoRa networks, IoT gateways, smart buildings, automation systems, and industrial monitoring

USER MANUAL:

LG01V2_User_Manual

DATA SHEET:

LG01v2_Datasheet
