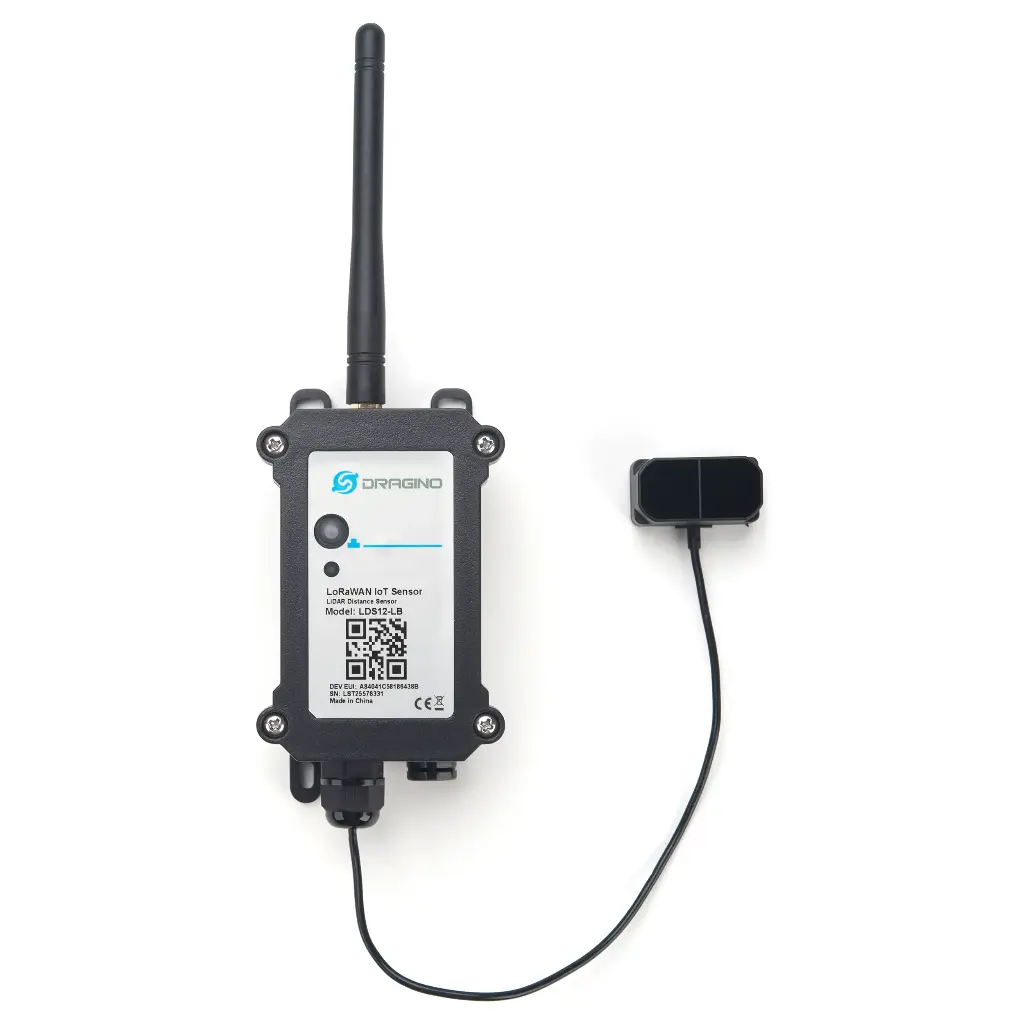

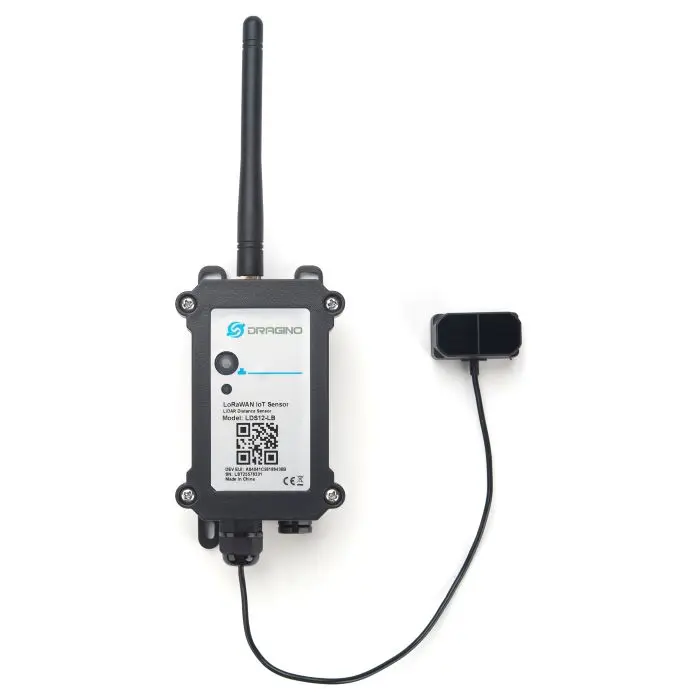

LDS12-LB LoRaWAN LiDAR ToF Distance Detection Sensor

The LDS12-LB is a LoRaWAN LiDAR Time-of-Flight (ToF) distance sensor that measures distances from 0.1 m to 12 m with high accuracy. Using laser induction technology, it detects object proximity and presence, transmitting data via LoRaWAN v1.0.3 Class A for long-range, low-power IoT applications.

The sensor features BLE v5.1 configuration, wireless OTA firmware updates, and an 8500 mAh Li/SOCl₂ battery that enables up to 5 years of operation. Its compact, IP65-rated enclosure makes it ideal for indoor and outdoor distance monitoring.

Key Specifications:

• LoRaWAN v1.0.3 Class A | Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865

• Measurement Range: 0.1 m – 12 m

• Accuracy: ±5 cm (0.1–5 m) | ±1% (5–12 m)

• Field of View (FOV): 3.6°

• Light Source: 850 nm LED | Ambient Light Immunity: 70 klux

• Enclosure: IP65 (ABS+PC) | Probe Cable Length: 25 cm

• Power: 8500 mAh Li/SOCl₂ battery (non-rechargeable)

• Operating Temperature: –40 ~ 85 °C | Probe: –20 ~ 60 °C

• Size: 15 × 12 × 5.5 cm | Weight: 0.22 kg

Applications: Distance & Level Measurement • Industrial Automation • Obstacle Detection

USER MANUAL:

LDS12-LB_Usder_Manual

DATA SHEET:

LDS12-LB_Datasheet

FIRMWARE:

LDS12-LB_Firmware
