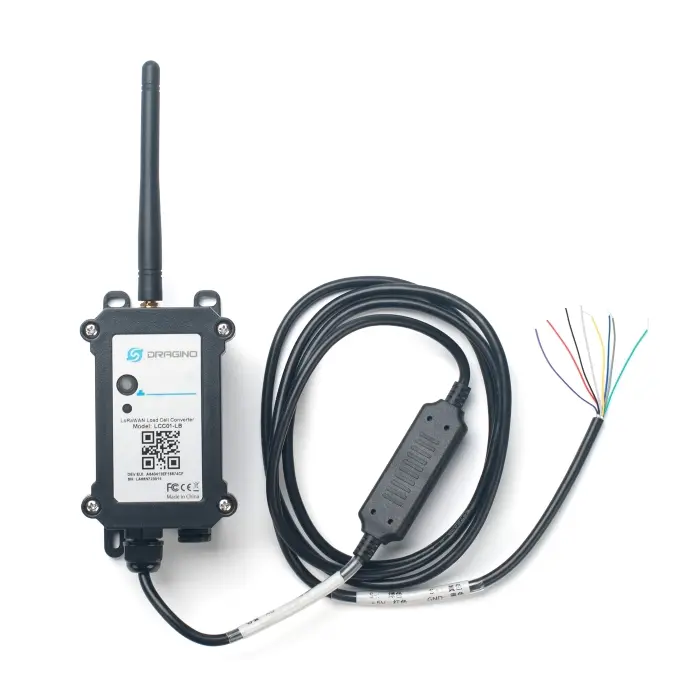

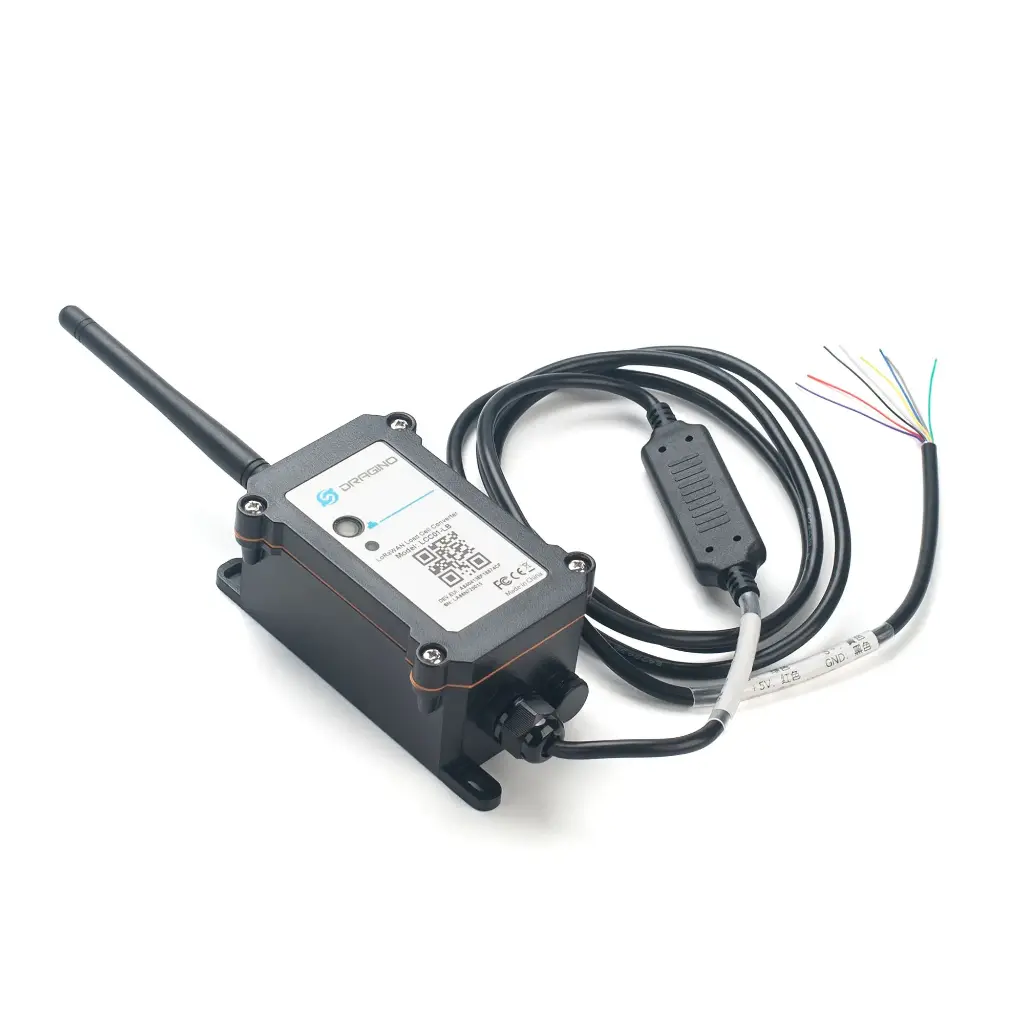

LCC01-LB LoRaWAN Load Cell Converter

The Dragino LCC01-LB LoRaWAN Load Cell Converter is a long-range, low-power IoT device designed for accurate weight measurement and remote monitoring. It connects to standard 4-wire load cells and converts weight data—ranging from grams to tons—into LoRaWAN wireless transmissions for cloud-based analysis. Powered by an 8500mAh industrial battery and supporting BLE configuration with OTA updates, LCC01-LB is ideal for smart weighing applications requiring long-term, maintenance-free operation.

Key Features

• LoRaWAN® v1.0.3 Class A connectivity

• Supports standard 4-wire load cells

• Wide weighing range: 100 g to 10 tons

• Ultra-low power design for up to 5 years battery life

• BLE configuration and wireless OTA firmware update

• Periodic uplink and downlink configuration support

• High interference immunity and long-range communication

Specifications

• Power Supply: Built-in Li-SOCl₂ battery, 2.5–3.6 V

• Battery Capacity: 8500 mAh

• Operating Temperature: –40 °C to +85 °C

• Frequency Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865

• TX Power: Up to +22 dBm

• RX Sensitivity: –139 dBm

• Power Consumption:

  • Sleep: 5 µA @ 3.3 V

  • TX: 125 mA @ 20 dBm

Applications:

Ideal for smart weighing systems such as truck scales, industrial and railway scales, bench scales, and retail weighing solutions.

USER MANUAL:

LCC01-LB_User_Manual

DATA SHEET:

LCC01-LB_Datasheet

FIRMWARE:

LCC01-LB_Firmware
