DLOS8N-EC25 Outdoor LoRaWAN Gateway
5 Units sold in last 24 hours
The Dragino DLOS8N-EC25 is an open-source outdoor LoRaWAN gateway designed to bridge LoRa wireless networks with IP networks via Ethernet, WiFi, or 3G/4G cellular connectivity. Built with an SX1302 LoRaWAN concentrator, it delivers ultra-long-range communication at low data rates, ensuring reliable data transfer for various IoT applications.
Supporting both Semtech UDP packet forwarder and LoRaWAN Station modes, it is fully LoRaWAN compatible and ready for public or private network setups. The gateway can also directly communicate with ABP LoRaWAN end nodes—ideal for integration with existing IoT platforms without needing a dedicated LoRaWAN server.
DLOS8N-EC25 runs on an open-source Linux system, managed via Web GUI or SSH, and includes features like MQTTS, GPS, PoE, auto-provisioning, and remote monitoring for scalable IoT deployments. With cellular failover support and an IP65-rated enclosure, it is built for reliability in outdoor industrial environments.
Key Features:
Open-source embedded Linux system
Managed via Web GUI or SSH (LAN, WiFi, or Cellular)
Supports Semtech UDP packet forwarder & LoRaWAN Station
3G/4G Cellular Connectivity (EC25 Module) with failover
Built-in GPS module for location and timing synchronization
MQTTS and ABP direct communication support

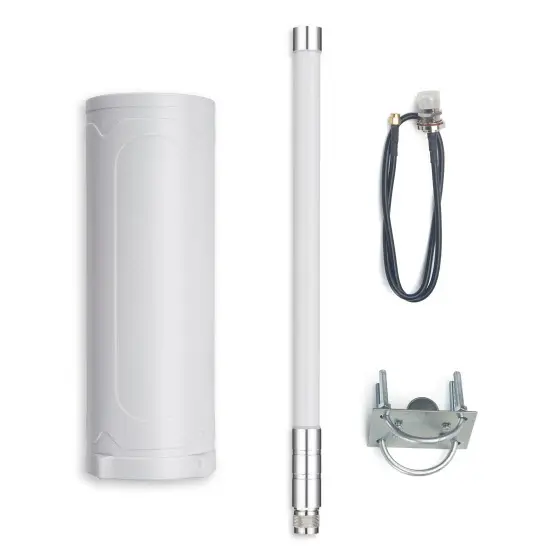

External fiberglass antenna with lightning protection
Auto-provisioning & remote monitoring for mass deployment
802.3af PoE and low power consumption (12V, 300–500mA)
Operating temperature: -20°C to +85°C
IP65 outdoor waterproof enclosure
Applications:
Smart Agriculture, Smart Cities, Smart Metering, Smart Factories, Logistics, and Smart Buildings
