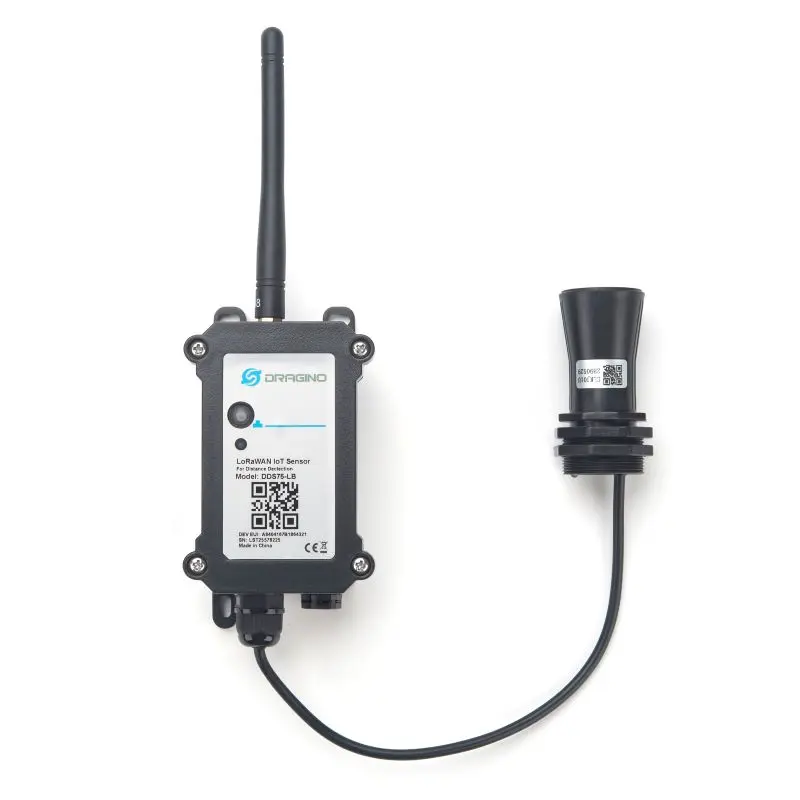

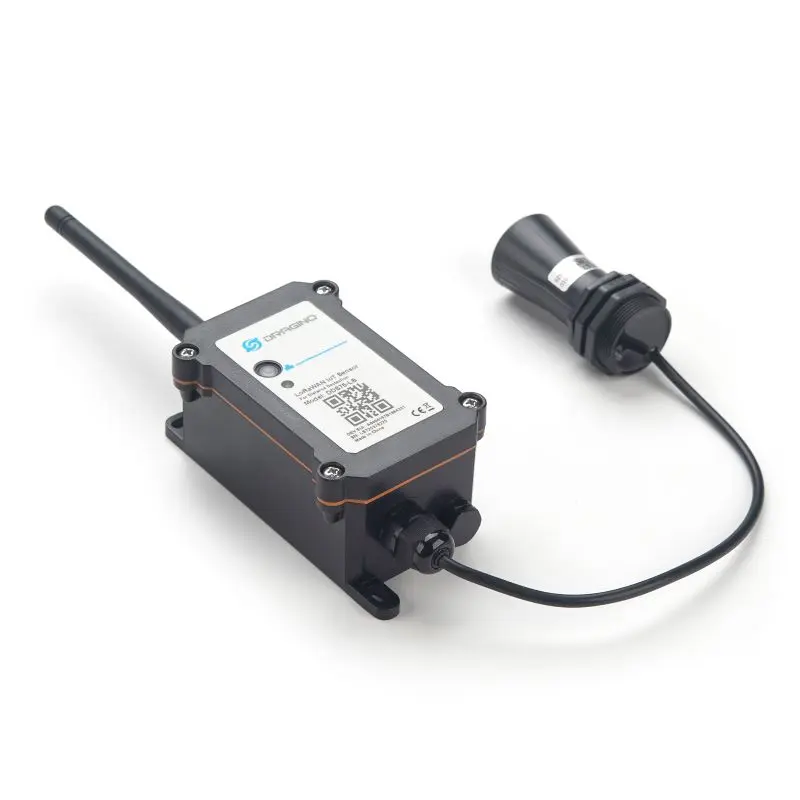

DDS75-LB LoRaWAN® Ultrasonic Distance Detection Sensor

https://www.aiotkart.com/web/image/product.template/17655/image_1920?unique=9944ae1

The Dragino DDS75-LB LoRaWAN® Ultrasonic Distance Detection Sensor is a long-range industrial IoT sensor designed for high-accuracy distance and level measurement applications. As an Authorized Dragino Distributor in India, AIoTkart® supplies the DDS75-LB for smart infrastructure, industrial automation, parking systems, sewer monitoring, and large tank level measurement projects.

The DDS75-LB uses advanced ultrasonic sensing technology with internal temperature compensation to ensure reliable and stable readings across harsh environmental conditions. It measures the distance between the sensor and a flat object and transmits the data wirelessly to a LoRaWAN® IoT server for remote monitoring. With its extended measurement range of up to 7.5 meters and ultra-low power consumption, the DDS75-LB is ideal for large tanks, wide-area monitoring, and outdoor deployments.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
4 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Ultrasonic distance detection technology
  • Extended flat object range: 280mm – 7500mm
  • Accuracy: ±(1cm + S × 0.3%)
  • 40° measurement angle
  • Internal temperature compensation
  • Ultra-low power consumption
  • IP66 waterproof enclosure
  • 8500mAh Li/SOCl₂ battery (DDS75-LB)
  • BLE v5.1 for local configuration
  • Remote configuration via LoRaWAN®
  • Wireless OTA firmware updates
  • AT command configuration support
  • Downlink configuration capability
  • Pre-loaded LoRaWAN® keys for auto network activation
  • Supports IN865 band

General Specifications

  • Supply Voltage: 2.5V ~ 3.6V (Built-in battery)
  • Operating Temperature: -40°C to +85°C
  • Enclosure Rating: IP66
  • Cable Length: 25cm
  • Package Dimension: 150 × 120 × 55 mm
  • Weight: 220 g

Measurement Specifications

  • Measurement Method: Ultrasonic
  • Distance Range (Flat Object): 280mm – 7500mm
  • Accuracy: ±(1cm + S × 0.3%)
  • Measuring Angle: 40°
  • Temperature Compensation: Internal

LoRaWAN® Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Range (HF): 862 ~ 1020 MHz
  • Supported Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Battery Specifications (DDS75-LB)

  • Battery Type: Li/SOCl₂ (Non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)
  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

The Dragino DDS75-LB is ideal for:

  • Long-range horizontal distance measurement
  • Large tank liquid level monitoring
  • Smart parking management systems
  • Object proximity and presence detection
  • Intelligent waste bin monitoring
  • Robot obstacle avoidance
  • Industrial automation and automatic control systems
  • Sewer and drainage monitoring
  • Bottom water level monitoring
  • Smart city infrastructure projects

It supports distance measurement from 280mm up to 7500mm (7.5 meters).

Yes. Its extended range makes it ideal for large tanks, reservoirs, and industrial storage applications.

Yes. With an IP66-rated enclosure and industrial-grade battery, it is suitable for outdoor installations.

Documents

DDS75-LB_User_Manual

Download

DDS75-LB_Datasheet

Download

DDS75-LB_Firmware

Download
