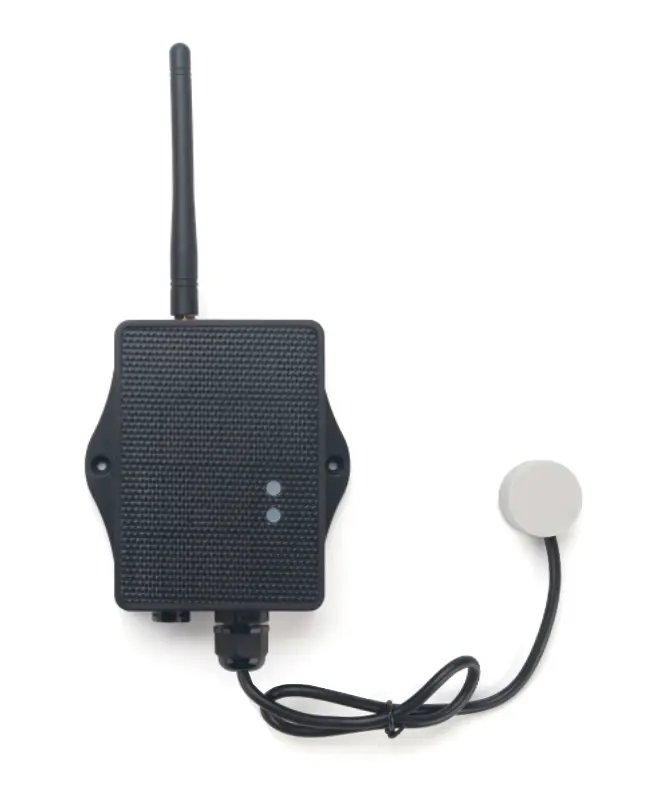

DDS20-LS LoRaWAN® Ultrasonic Distance Detection Sensor

https://www.aiotkart.com/web/image/product.template/17652/image_1920?unique=e0cbde3

The Dragino DDS20-LS LoRaWAN® Ultrasonic Distance Detection Sensor is a solar-powered, non-contact liquid level monitoring solution designed for industrial IoT deployments. As an Authorized Dragino Distributor in India, AIoTkart® supplies the DDS20-LS for smart tank monitoring, industrial liquid storage management, and hazardous chemical level measurement applications.

The DDS20-LS uses ultrasonic sensing technology to measure liquid height from outside the container. Installed directly below the tank, it detects the liquid level without requiring any hole or direct contact with the liquid. This non-invasive measurement method ensures maximum safety and makes it ideal for toxic substances, strong acids, strong alkalis, liquefied gases, and high-temperature or high-pressure sealed containers.

The integrated solar panel with 3000mAh rechargeable Li-ion battery enables long-term autonomous outdoor operation, making it suitable for remote tank installations and smart city infrastructure.

Login | Register to see price

Not Available For Sale

(₹ 0.00 / UNIT)
9 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Non-contact ultrasonic liquid level measurement
  • Measures through container bottom (no liquid contact required)
  • Valid level range: 20mm – 2000mm
  • Accuracy: ±(5mm + S × 0.5%)
  • Suitable for toxic, corrosive, and high-pressure liquids
  • Ultra-low power consumption
  • IP66 waterproof enclosure
  • Integrated solar panel + 3000mAh Li-ion battery (DDS20-LS)
  • BLE v5.1 for local configuration
  • Remote configuration via LoRaWAN®
  • Wireless OTA firmware update support
  • AT command configuration
  • Downlink support for parameter changes
  • Battery level monitoring
  • Pre-loaded LoRaWAN® keys for easy activation
  • Supports IN865 band

General Specifications

  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature: -40°C to +85°C
  • Enclosure Rating: IP66
  • Cable Length: 25cm
  • Device Size: 14.5 × 8 × 5 cm
  • Device Weight: 190 g

Measurement Specifications

  • Measurement Method: Ultrasonic (Non-contact)
  • Valid Level Range: 20mm – 2000mm
  • Accuracy: ±(5mm + S × 0.5%)
  • Installation: Bottom-mounted external sensor

LoRaWAN® Specifications

  • Protocol: LoRaWAN® 1.0.3 Class A
  • Frequency Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
  • Additional Band Support: 410 ~ 528 MHz (Band 2 LF)
  • Max RF Output: +22 dBm
  • RX Sensitivity: Down to -139 dBm
  • High interference immunity

Power Specifications (DDS20-LS)

  • Solar Panel: Integrated
  • Battery Type: 3000mAh Li-ion (Rechargeable)
  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit: 125mA @ 20dBm, 82mA @ 14dBm

The Dragino DDS20-LS LoRaWAN® Liquid Level Sensor is ideal for:

  • Smart liquid storage monitoring
  • Industrial tank level monitoring
  • Smart liquefied gas monitoring
  • Chemical storage tanks
  • Acid and alkali storage monitoring
  • Sealed container liquid measurement
  • Remote water tank monitoring
  • Smart city and utility infrastructure

No. The DDS20-LS is installed below the container and measures through the tank bottom without requiring any hole or direct contact with the liquid.

Yes. Since it is a non-contact ultrasonic sensor, it can safely measure toxic substances, strong acids, strong alkalis, and liquefied gases in sealed containers.

The DDS20-LB uses an 8500mAh Li-SOCl₂ battery, while the DDS20-LS includes a solar panel with a 3000mAh rechargeable Li-ion battery for long-term autonomous outdoor deployment.

Documents

DDS20-LS_User_Manual

Download

DDS20-LS_Datasheet

Download

DDS20-LS_Firmware

Download
