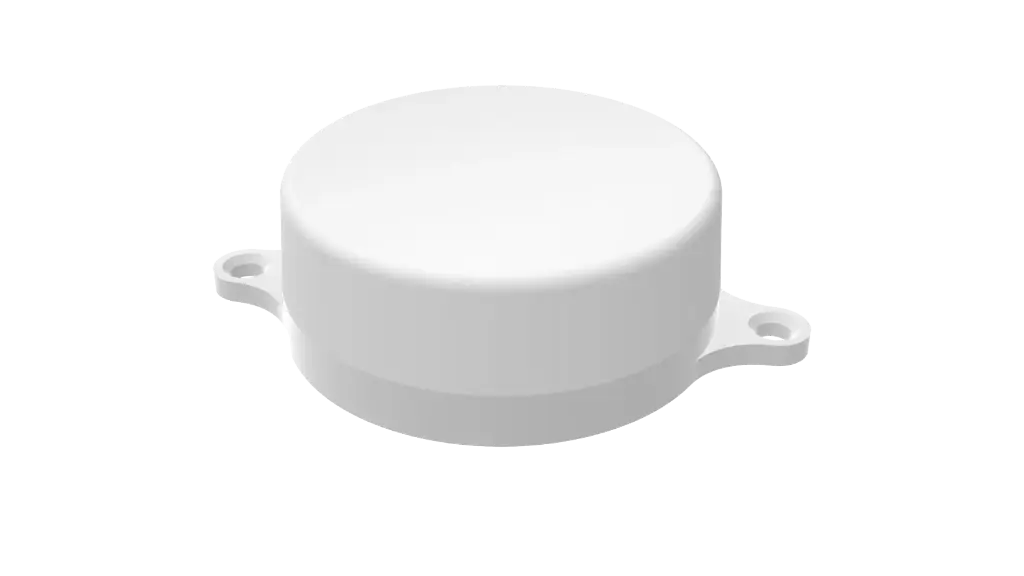

BCN02 Bluetooth BLE iBeacon

The BCN02 is a Bluetooth 5.1 iBeacon designed for indoor positioning and LoRaWAN location tracking solutions. It works seamlessly with Dragino TrackerD, broadcasting its UUID to help determine indoor location through signal strength detection.

Powered by a 1200 mAh battery, the BCN02 offers 4–5 years of operation (at a 500 ms broadcast interval) with ultra-low power consumption. It is weather-proof, suitable for both indoor and outdoor use, and configurable via a mobile app.

Key Specifications:

• Bluetooth Version: 5.1

• Battery: 1200 mAh (4–5 years life @ 500 ms interval)

• RF Power: –19.5 ~ 2.5 dBm (default 2.5 dBm)

• Range: up to 100 m (open area)

• Operating Temperature: –30 ~ 60 °C

• Current Consumption: Sleep 0.27 µA / Broadcast 16 µA

• Dimensions: 8 × 3 × 10 cm

• Weight: 70 g

• Weather-proof, configurable via smartphone

Applications: Indoor Positioning • LoRaWAN Location Tracking • Asset Monitoring.

USER MANUAL:

BCN02_User_Manual

DATA SHEET:

BCN02_Datasheet
