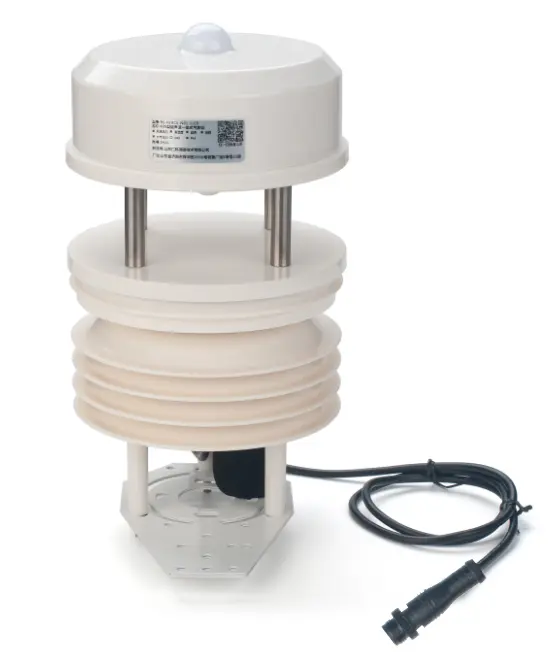

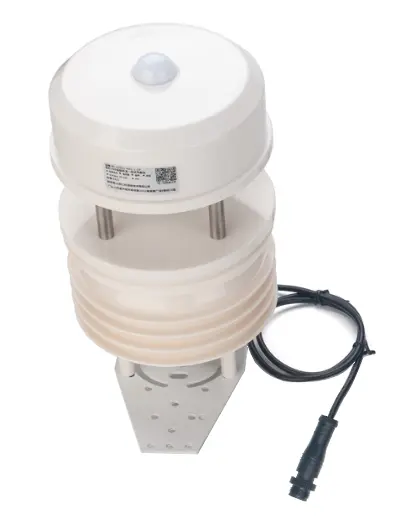

Dragino WSS-09 9-in-1 Weather Station Sensor for WSC2-L

https://www.aiotkart.com/web/image/product.template/17797/image_1920?unique=4733bc0

The Dragino WSS-09 is a 9-in-1 environmental weather station sensor designed for the Dragino weather-station ecosystem and specifically for use with the WSC2-L LoRaWAN Weather Station Controller. It measures nine environmental parameters in a single integrated sensor: wind speed, wind direction, temperature, humidity, air pressure, illumination, PM2.5, PM10 and noise.

The WSS-09 communicates with the WSC2-L controller through RS485, allowing the measured environmental data to be transmitted through a LoRaWAN weather-monitoring system. It uses ultrasonic wind measurement without a mechanical starting threshold and includes a built-in electronic compass for wind-direction measurement. The sensor operates from 10–30V DC with maximum power consumption of 1.2W.

₹ 70,900.00 70900.0 INR ₹ 70,900.00

₹ 70,900.00

Not Available For Sale

(₹ 0.00 / UNIT)
2 people are viewing this right now

This combination does not exist.

Contact Us

  • 9-in-1 integrated weather station sensor
  • Measures wind speed, wind direction, temperature, humidity, air pressure
  • Monitors PM2.5, PM10, illumination, and noise levels
  • Ultrasonic wind measurement (no mechanical wear)
  • Built-in electronic compass for flexible installation
  • RS485 interface for WSC2-L LoRaWAN® controller
  • Supports third-party RS485 environmental sensors
  • Pulse input for tipping bucket rain gauge
  • Wide 10–30V DC power input
  • Low power consumption (Max 1.2W)
  • Designed for industrial and outdoor deployments

Wind Speed

  • Range: 0 ~ 60 m/s
  • Accuracy: ±(0.2 m/s ± 0.02*v)
  • Ultrasonic measurement (no starting wind threshold)

Wind Direction

  • Range: 0 ~ 359°
  • Accuracy: ±3°
  • Ultrasonic measurement
  • Built-in electronic compass

Temperature

  • Range: -40°C to +80°C
  • Accuracy: ±0.5°C

Humidity

  • Range: 0 ~ 99% RH
  • Accuracy: Typical ±3% RH

Air Pressure

  • Range: 0 ~ 120 kPa
  • Accuracy: ±0.15 kPa @ 25°C, 101 kPa

Noise

  • Range: 30 dB ~ 120 dB
  • Accuracy: ±0.5 dB

PM2.5

  • Range: 0 ~ 1000 µg/m³
  • Accuracy: ±3% FS
  • Resolution: 1 µg/m³

PM10

  • Range: 0 ~ 1000 µg/m³
  • Accuracy: ±3% FS
  • Resolution: 1 µg/m³

Illumination

  • Range: 0 ~ 200,000 Lux
  • Accuracy: ±7% @ 25°C

Electrical

  • Power Input: 10 ~ 30V DC
  • Max Power Consumption: 1.2W
  • Interface: RS485

The Dragino WSS-09 9-in-1 Weather Station Sensor is ideal for:

  • Industrial automation and factory environmental monitoring
  • Commercial infrastructure and smart buildings
  • Smart city air quality and noise monitoring
  • Water systems and reservoir weather monitoring
  • Cold chain logistics environmental tracking
  • Manufacturing plant compliance monitoring
  • Utilities and power sector weather data collection
  • Infrastructure projects and highways
  • Campuses, institutions, and research centers

You can buy the genuine Dragino WSS-09 9-in-1 Weather Station Sensor from AIoTkart®, the Authorized Dragino Distributor in India. We provide PAN-India shipping and support for industrial, commercial, and institutional deployments.

Yes. The WSS-09 connects via RS485 to the Dragino WSC2-L LoRaWAN® controller, enabling long-range LoRaWAN®-based weather data transmission across factories, campuses, utilities, and smart infrastructure projects in India.

Yes. Apart from its built-in 9 parameters, the sensor supports third-party RS485 sensors and includes a pulse counting input for connecting a tipping bucket rain gauge.

Documents

WSS-09_User_Manual

Download

WSS-09_Datasheet

Download

WSS-09_Firmware

Download
