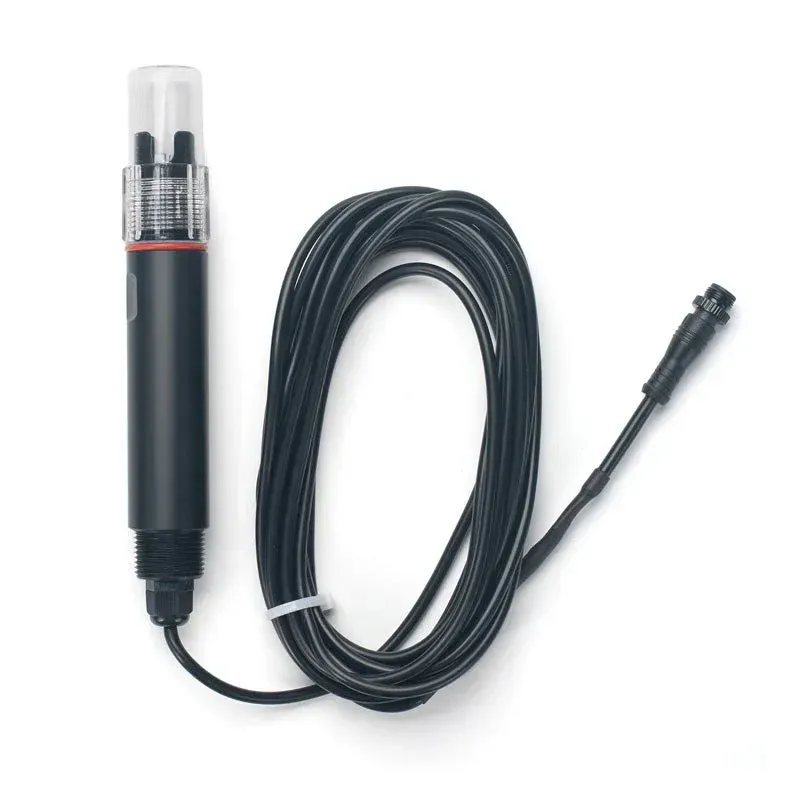

Dragino DR-ECK1.0 Water Electrical Conductivity Sensor

https://www.aiotkart.com/web/image/product.template/17660/image_1920?unique=cb5e58c

Dragino DR-ECK1.0 is an RS485 water electrical conductivity (EC) sensor designed for continuous water-quality monitoring in environmental, industrial and water-treatment applications. It uses a K1 electrode to measure electrical conductivity from 0 to 2000 µS/cm with 1 µS/cm resolution and ±1% FS accuracy, while also measuring temperature from -20°C to 60°C with 0.1°C resolution and ±0.5°C accuracy. The DR-ECK1.0 operates from 7–30V DC and communicates through RS485 at 9600 baud. It also supports temperature compensation, TDS and salinity conversion, and features an IP68-rated probe, 0.6 MPa pressure resistance and a 5-meter cable for field installation. It can be integrated with compatible Dragino water-quality converters for remote IoT monitoring in India.

₹ 18,400.00 18400.0 INR ₹ 18,400.00

₹ 18,400.00

Not Available For Sale

(₹ 0.00 / UNIT)
5 people are viewing this right now

This combination does not exist.

Contact Us

  • High-precision Electrical Conductivity (EC) measurement
  • RS485 (MODBUS-RTU) interface – 9600 baud rate
  • EC Range: 0 ~ 2000 μS/cm
  • Accuracy: ±1% FS
  • Integrated temperature measurement & compensation
  • Salinity and TDS conversion support
  • IP68 waterproof industrial probe
  • 5-meter industrial cable (standard)
  • Compatible with WQS-LB LoRaWAN® converter
  • Suitable for long-term outdoor and industrial deployments
  • Power Supply: DC 7 ~ 30V
  • Power Consumption: ≤0.5W
  • Interface: RS485 (9600 Baud Rate)
  • EC Range: 0 ~ 2000 μS/cm
  • EC Resolution: 1 μS/cm
  • EC Accuracy: ±1% FS
  • Temperature Measurement Range: -20 ~ 60°C
  • Temperature Resolution: 0.1°C
  • Temperature Accuracy: ±0.5°C
  • Working Temperature: 0 ~ 60°C
  • Salinity & TDS Conversion: Supported
  • Protection Rating: IP68
  • Pressure Resistance: 0.6MPa
  • Cable Length: 5 meters

The DR-ECK1.0 EC Sensor with WQS-LB is suitable for:

  • Wastewater monitoring
  • Environmental water monitoring
  • Tap water quality management
  • Industrial production processes
  • Chemical processing plants
  • Industrial water systems
  • Surface water monitoring
  • General water treatment plants
  • Institutional and infrastructure facilities

The DR-ECK1.0 measures electrical conductivity from 0 to 2000 μS/cm, making it ideal for freshwater, tap water, and low-conductivity industrial water applications.

Yes. The WQS-LB main unit supports up to 3 water quality probes simultaneously, including EC, pH, DO, ORP, Turbidity, and Chlorine sensors.

Yes. When connected to the WQS-LB, EC data is transmitted wirelessly to a LoRaWAN® server for remote monitoring and cloud integration.
