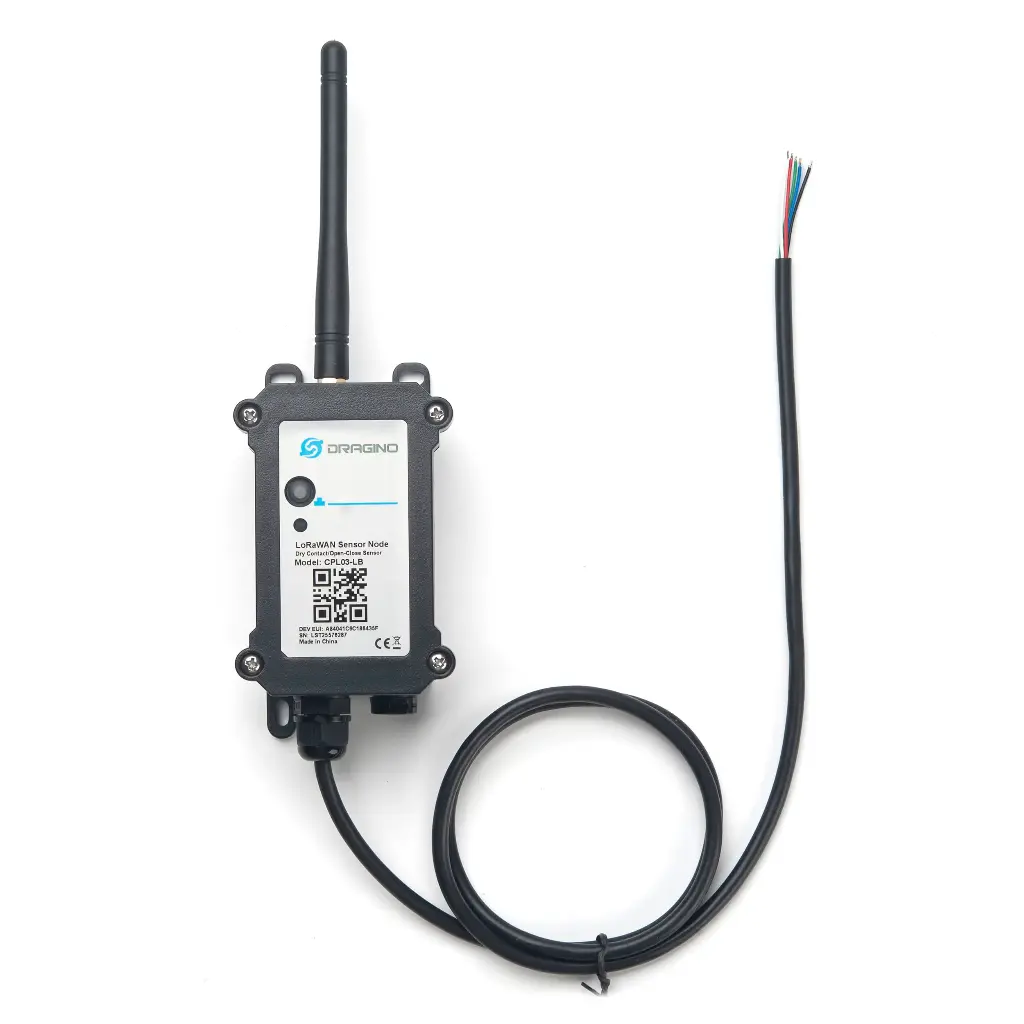

CPL03-LB Outdoor LoRaWAN Open/Close Dry Contact Sensor
7 Units sold in last 24 hours
The CPL03-LB is a LoRaWAN contact sensor for IoT applications, designed to detect dry contact status, open/close duration, and event counts. It supports LoRaWAN v1.0.3 Class A, offering ultra-long range, low power consumption, and IP67 weatherproof protection for reliable outdoor use.
The device features open alarms, datalogging, BLE v5.1 configuration, and wireless OTA updates. It can be powered by an 8500 mAh Li/SOCl₂ battery (CPL03-LB), ensuring up to 5 years of operation.
Key Specifications:
LoRaWAN v1.0.3 Class A | Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
Open/close detection & event counting
Open alarm & datalog features
BLE v5.1 configuration & OTA updates
Operating temp: –40 ~ 85 °C
Power: 8500 mAh Li/SOCl₂
IP67 rated enclosure
Size: 195 × 125 × 55 mm | Weight: 0.42 kg
Applications: Wireless Alarms • Smart Buildings • Industrial Monitoring
USER MANUAL:
DATA SHEET:
FIRMWARE:
