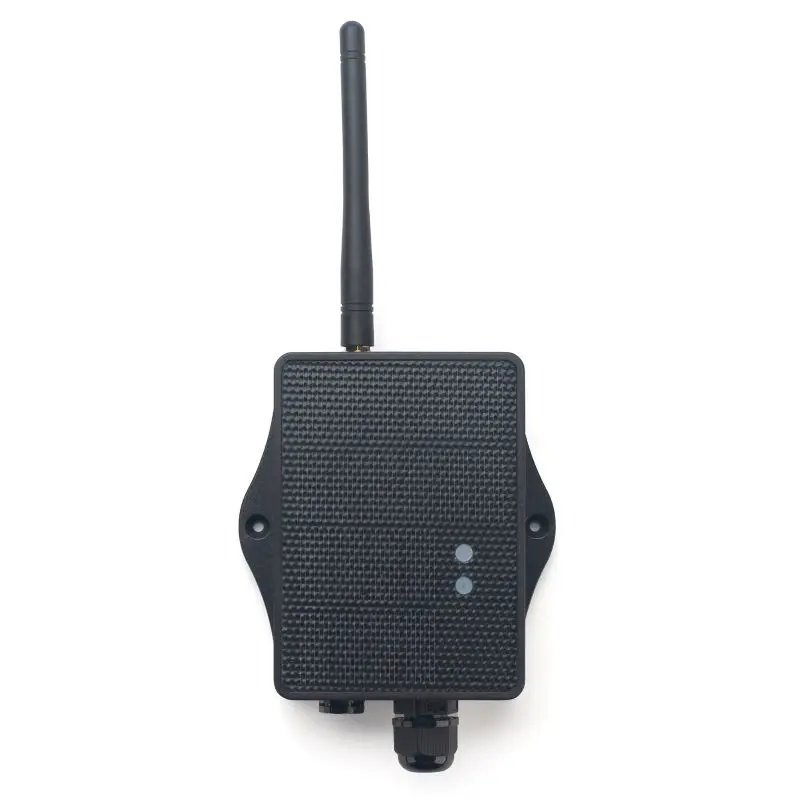

Dragino RS485-LS-M12 Waterproof RS485/UART to LoRaWAN Converter

https://www.aiotkart.com/web/image/product.template/17755/image_1920?unique=3fc5cc4

Dragino RS485-LS-M12 is a solar-powered waterproof RS485/UART to LoRaWAN® Converter designed to connect RS485, Modbus and UART sensors to long-range LoRaWAN networks for remote IoT monitoring. It supports multiple RS485 devices through configurable communication rules, Modbus protocol, 3.3V/5V UART sensors and controllable sensor-power outputs for flexible field integration. The RS485-LS supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. This variant uses an M12 waterproof cable entry, while the converter features an IP67 enclosure and is powered by a solar panel with a 3000mAh rechargeable Li-ion battery. With IN865 frequency support available, it is suitable for industrial automation, smart metering, agriculture and outdoor monitoring deployments in India.

₹ 7,000.00 7000.0 INR ₹ 7,000.00

₹ 7,000.00

Not Available For Sale

(₹ 0.00 / UNIT)
3 people are viewing this right now

This combination does not exist.

Contact Us

  • RS485 / UART to LoRaWAN® Converter
  • Solar-powered with 3000mAh Li-ion battery
  • Industrial M12 connector for secure field deployment
  • IP67 waterproof enclosure
  • LoRaWAN® 1.0.3 Class A compliant
  • Supports IN865 and global LoRaWAN® bands
  • Modbus protocol support
  • Multiple RS485 device polling via flexible rules
  • Interrupt-triggered uplink support
  • Controllable 3.3V and 5V sensor power output
  • Ultra-low power consumption (5uA sleep mode)
  • Bluetooth v5.1 configuration
  • Wireless OTA firmware updates
  • AT command configuration support
  • Periodic uplink & configurable downlink

General Characteristics

  • Supply Voltage: 2.5V ~ 3.6V (Built-in Battery System)
  • Operating Temperature: -40°C to +85°C

I/O Interfaces

  • 1 × RS485 Interface
  • 1 × UART Interface (3.3V / 5V)
  • 1 × Interrupt / Digital I/O
  • 1 × I2C Interface
  • 1 × One-Wire Interface
  • Controllable 2.6–3.6V battery output
  • +5V controllable output

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • Supported Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865 / RU864 / MA869
  • Maximum RF Output: +22 dBm
  • RX Sensitivity: -139 dBm
  • High interference immunity

Battery (RS485W-LS Version)

  • Solar Panel Integrated
  • 3000mAh Li-ion Rechargeable Battery
  • Designed for long-term outdoor deployment

Power Consumption

  • Sleep Mode: 5uA @ 3.3V
  • Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

Mechanical

  • Device Size: 9.7 × 6.5 × 4.7 cm
  • Device Weight: 150g
  • Package Size: 14.0 × 8 × 5 cm
  • Package Weight: 180g

The Dragino RS485W-LS-M12 is suitable for:

  • Smart Buildings & Industrial Automation
  • Smart Metering (Water, Gas, Energy)
  • Agriculture & Irrigation Automation
  • Logistics and Supply Chain Monitoring
  • Environmental Monitoring Stations
  • Smart City Infrastructure
  • Remote Modbus Sensor Integration
  • Factory Equipment Monitoring

You can purchase the genuine Dragino RS485W-LS-M12 RS485 to LoRaWAN® Converter from AIoTkart®, the Authorized Dragino Distributor in India.

Yes, the RS485W-LS-M12 includes a built-in solar panel with a 3000mAh Li-ion rechargeable battery for long-term outdoor use.

Yes, it supports Modbus protocol and allows flexible polling of multiple RS485 sensors with configurable data rules.

Documents

User Manual
Download

RS485-LS_Datasheet

Download

RS485-LS_Firmware

Download
