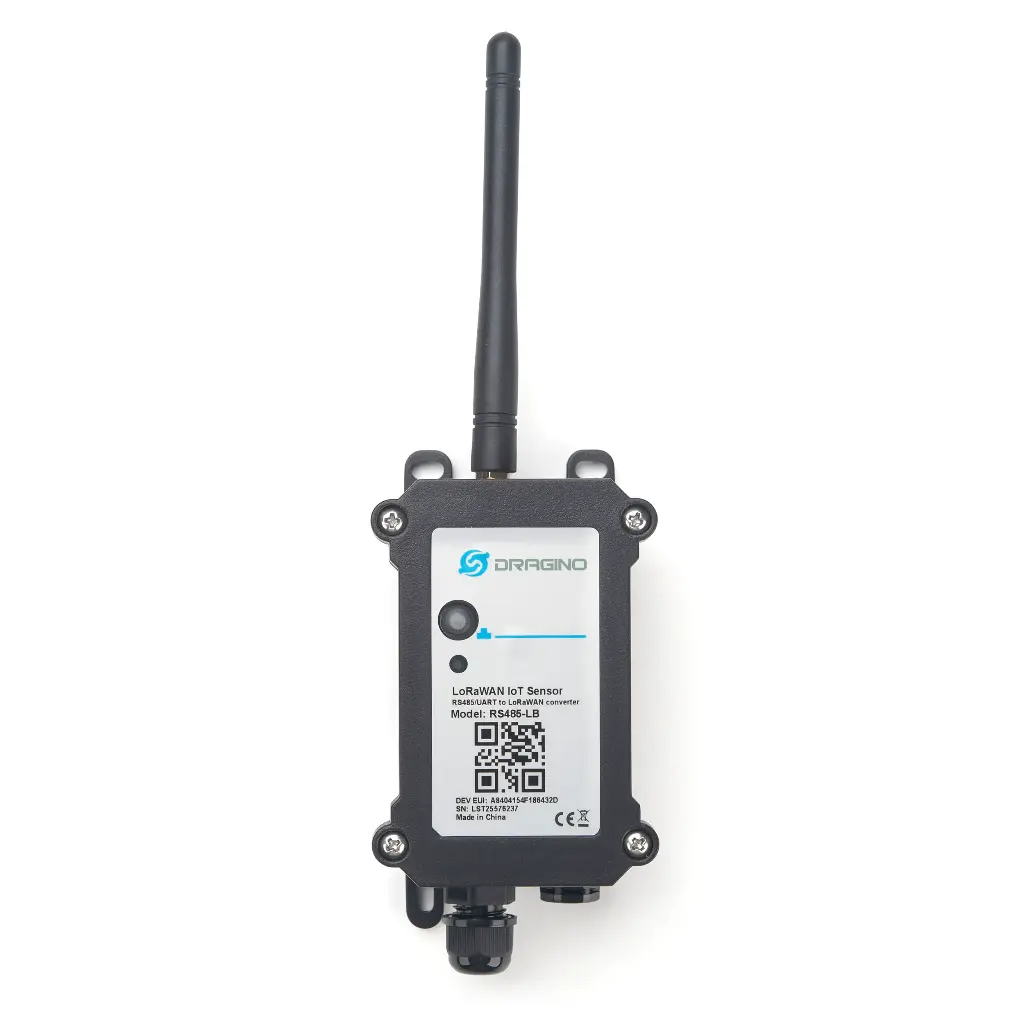

Dragino RS485W-LB-M12 RS485/UART to LoRaWAN Converter

Price:

₹ 6,940.00
Dragino RS485W-LB-M12 RS485/UART to LoRaWAN Converter
  2. Shop
  3. Dragino RS485W-LB-M12 RS485/UART to LoRaWAN Converter
Dragino TC11-LB LoRaWAN K-Type Thermocouple Converter (Exclude Thermocouple Sensor)
Dragino TC11-LB LoRaWAN K-Type Thermocouple Converter (Exclude Thermocouple Sensor)
₹ 7,700.00
₹ 7,700.00
Dragino RS485-LS-M12 Waterproof RS485/UART to LoRaWAN Converter
Dragino RS485-LS-M12 Waterproof RS485/UART to LoRaWAN Converter
₹ 7,000.00
₹ 7,000.00

Dragino RS485W-LB-M12 RS485/UART to LoRaWAN Converter

https://www.aiotkart.com/web/image/product.template/17757/image_1920?unique=921147a

Dragino RS485W-LB-M12 is a waterproof RS485/UART to LoRaWAN® Converter designed to connect RS485, Modbus and UART sensors to long-range LoRaWAN networks for remote IoT monitoring. The RS485W-LB derivative adds a controllable 12V sensor-power output while retaining the standard RS485-LB interfaces and functionality, making it suitable for external sensors that require 12V power, including compatible water-quality sensors. It supports LoRaWAN 1.0.3 Class A communication, multiple RS485 devices through configurable rules, Modbus protocol, 3.3V/5V UART sensors, Bluetooth configuration and wireless OTA firmware updates. This M12 version uses an M12 waterproof cable entry, while the device has an IP67 enclosure and an 8500mAh Li-SOCl2 battery. With IN865 frequency support available, it is suitable for industrial, environmental and field-monitoring deployments in India.

₹ 6,940.00 6940.0 INR ₹ 6,940.00

₹ 6,940.00

Not Available For Sale

(₹ 0.00 / UNIT)
3 people are viewing this right now

This combination does not exist.

Contact Us

  • RS485 / UART to LoRaWAN® Converter
  • Industrial M12 connector for secure deployment
  • LoRaWAN® 1.0.3 Class A compliant
  • Supports IN865 and global frequency bands
  • IP67 waterproof enclosure
  • Supports Modbus protocol
  • Multiple RS485 devices support via flexible rules
  • Interrupt-triggered uplink capability
  • Controllable 3.3V/5V sensor power output
  • Ultra-low power consumption (5uA sleep mode)
  • BLE v5.1 configuration support
  • Wireless OTA firmware updates
  • AT command configuration
  • Periodic uplink & configurable downlink

General Characteristics

  • Supply Voltage: 2.5V ~ 3.6V (Built-in Battery)
  • Operating Temperature: -40°C to +85°C

I/O Interfaces

  • 1 × RS485 Interface
  • 1 × UART Interface (3.3V / 5V)
  • 1 × Interrupt / Digital I/O
  • 1 × I2C Interface
  • 1 × One-Wire Interface
  • Controllable 2.6–3.6V Battery Output
  • +5V Controllable Output

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • Supported Bands:  IN865
  • Maximum RF Output: +22 dBm
  • RX Sensitivity: -139 dBm
  • High blocking immunity

Battery (RS485W-LB Version)

  • Type: Li/SOCl2 (Non-rechargeable)
  • Capacity: 8500mAh
  • Self-Discharge: <1% per year @ 25°C
  • Max Continuous Current: 130mA
  • Max Boost Current: 2A (1 second)

Power Consumption

  • Sleep Mode: 5uA @ 3.3V
  • Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

Mechanical

  • Device Size: 9.7 × 6.5 × 4.7 cm
  • Device Weight: 150g
  • Package Size: 14.0 × 8 × 5 cm
  • Package Weight: 180g

The Dragino RS485W-LB-M12 Converter is ideal for:

  • Smart Buildings & Home Automation
  • Industrial Automation & Smart Factory systems
  • Smart Metering (Energy, Water, Gas)
  • Agriculture automation & irrigation systems
  • Logistics & supply chain monitoring
  • Environmental monitoring stations
  • Smart City infrastructure
  • Remote Modbus sensor integration

You can purchase the genuine Dragino RS485W-LB-M12 RS485 to LoRaWAN® Converter from AIoTkart®, the Authorized Dragino Distributor in India.

Yes, the device supports Modbus protocol and can connect to multiple RS485 sensors using configurable data rules.

Yes, the RS485W-LB-M12 features an IP67 waterproof enclosure and M12 industrial connector, making it ideal for harsh outdoor and factory environments.

Documents

User Manual
Download

RS485W-LB_Datasheet

Download

RS485W-LB_Firmware

Download
