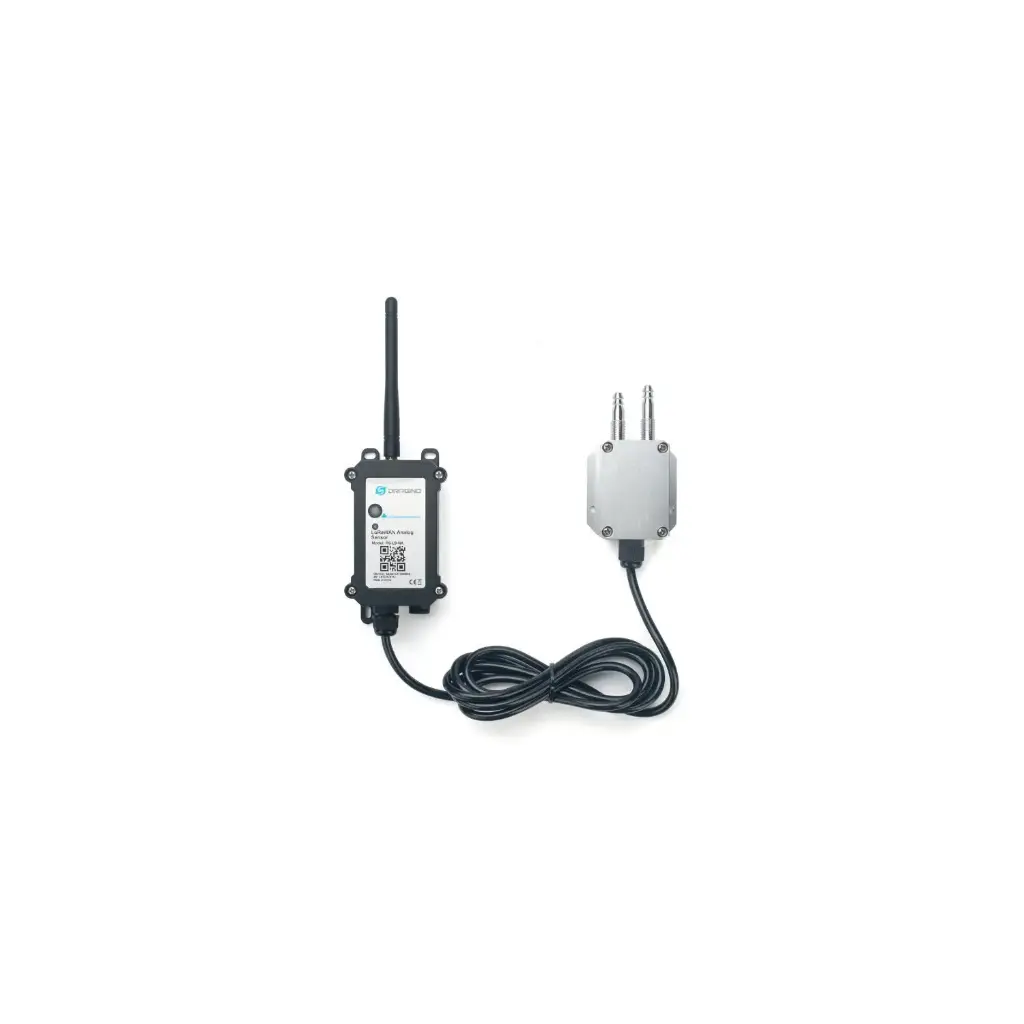

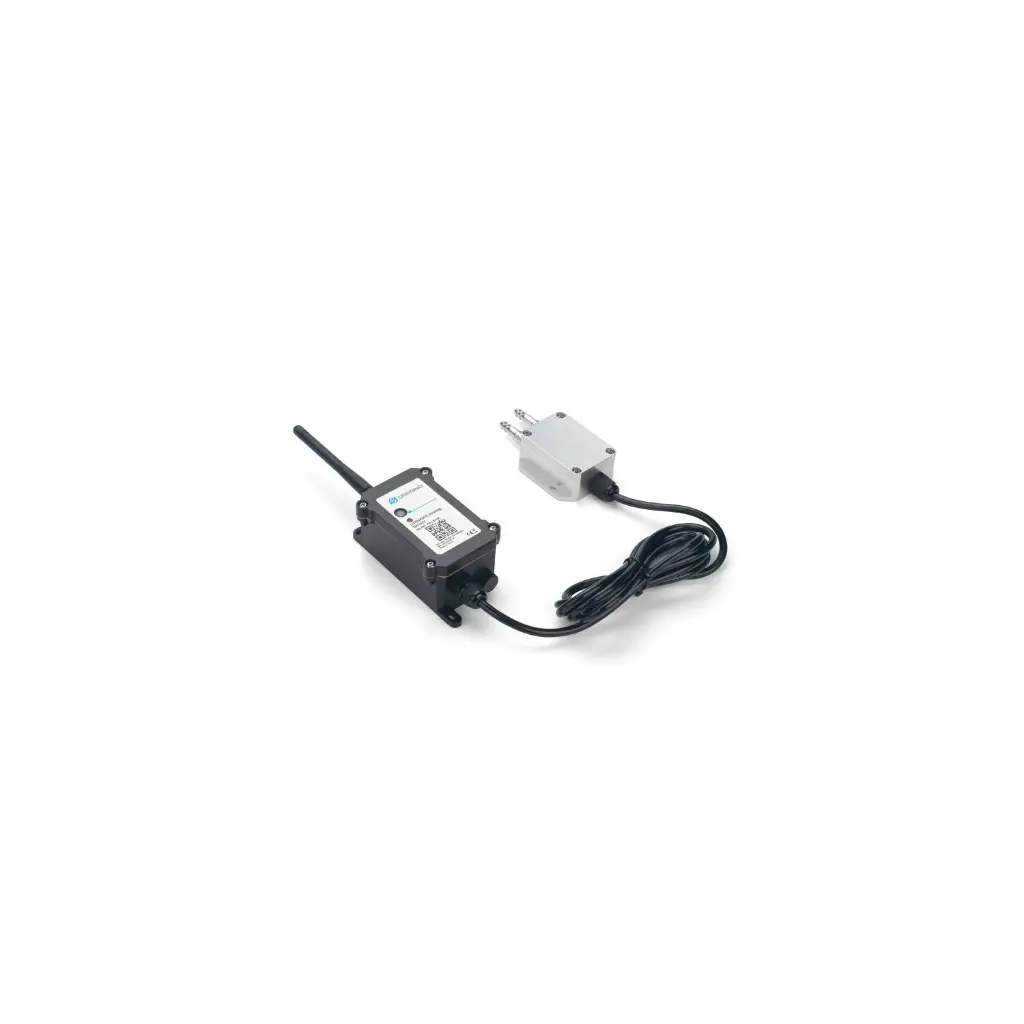

Dragino PS-LB-D01 LoRaWAN Differential Pressure Sensor

https://www.aiotkart.com/web/image/product.template/17728/image_1920?unique=700ec5c

Dragino PS-LB-D01 is a LoRaWAN® differential pressure sensor designed to measure the pressure difference between two air-pressure inputs for indoor monitoring applications. The D01 variant provides a 0–100 Pa measurement range, making it suitable for low differential-pressure applications such as indoor air control and filter-clogging detection. The PS-LB-D01 supports LoRaWAN 1.0.3 Class A communication, periodic or alarm-based uplinks, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by an 8500mAh Li-SOCl2 battery and available with IN865 frequency support, it is suitable for long-term wireless differential-pressure monitoring deployments in India.

₹ 14,695.00 14695.0 INR ₹ 14,695.00

₹ 14,695.00

Not Available For Sale

(₹ 0.00 / UNIT)
2 people are viewing this right now

This combination does not exist.

Contact Us

  • Dragino PS-LB-D01 LoRaWAN® Differential Pressure Sensor
  • Measures pressure difference between two air inputs
  • LoRaWAN® 1.0.3 Class A compliant
  • Wide differential pressure range (-100Pa to 100KPa)
  • Ultra-low power consumption design
  • 8500mAh Li/SOCl2 battery powered (PS-LB-D series)
  • Solar + Li-ion option available (PS-LS-D series)
  • Bluetooth v5.1 configuration support
  • Remote LoRaWAN® configuration & OTA firmware updates
  • Periodic uplink or alarm-triggered transmission
  • Battery level monitoring
  • Supports IN865 band for India
  • Model: Dragino PS-LB-D01
  • Product Type: LoRaWAN® Differential Pressure Sensor
  • LoRaWAN® Version: 1.0.3 Class A
  • Frequency Bands: IN865
  • Microcontroller:
    • 48MHz ARM MCU
    • 256KB Flash
    • 64KB RAM
  • Differential Pressure Range:
    • Configurable from -100Pa to 100KPa
  • Current Input Measuring:
    • Range: 0 ~ 20mA
    • Accuracy: 0.02mA
    • Resolution: 0.001mA
  • Voltage Input Measuring:
    • Range: 0 ~ 30V
    • Accuracy: 0.02V
    • Resolution: 0.001V
  • Battery:
    • 8500mAh Li/SOCl2 battery
    • Self-discharge: <1% per year @ 25°C
    • Max continuous current: 130mA
  • Operating Temperature: -40°C to 85°C
  • Sleep Mode Consumption: 5uA @ 3.3V
  • Transmit Consumption: 125mA @ 20dBm

The Dragino PS-LB-D01 Differential Pressure Sensor is widely used across India in:

  • Industrial automation systems for pressure monitoring
  • Commercial HVAC and air handling units
  • Indoor air control systems
  • Filter clogging detection in ventilation systems
  • Water systems and pump monitoring
  • Cold chain facilities and controlled environments
  • Manufacturing plants and process industries
  • Utilities and infrastructure monitoring projects
  • Campuses, hospitals, and institutional buildings

You can buy the genuine Dragino PS-LB-D01 LoRaWAN® Differential Pressure Sensor from AIoTkart®, the Authorized Dragino Distributor in India. We provide PAN-India shipping and bulk procurement support.

Yes, the PS-LB-D01 supports the IN865 frequency band used for LoRaWAN® deployments in India. It integrates with both public and private LoRaWAN® gateways for long-range industrial monitoring.

A differential pressure sensor measures the pressure difference between two points, commonly used for valve monitoring, airflow balance, filter clog detection, and pipeline performance monitoring in industrial and commercial systems.

Documents

User Manual
Download

PS-LB-D_Datasheet

Download

PS-LB-D_Firmware

Download
