Dragino PS-LB-I200 LoRaWAN Water & Liquid Pressure Sensor

https://www.aiotkart.com/web/image/product.template/17733/image_1920?unique=2c4977c

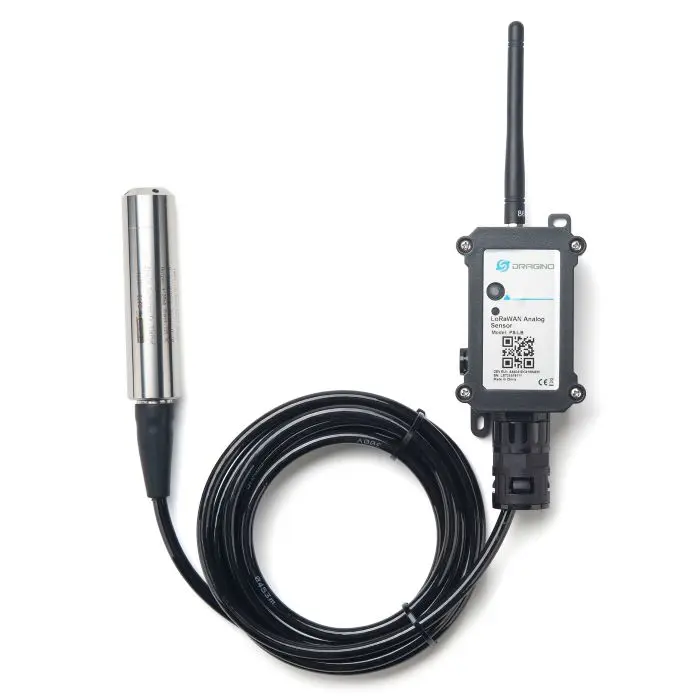

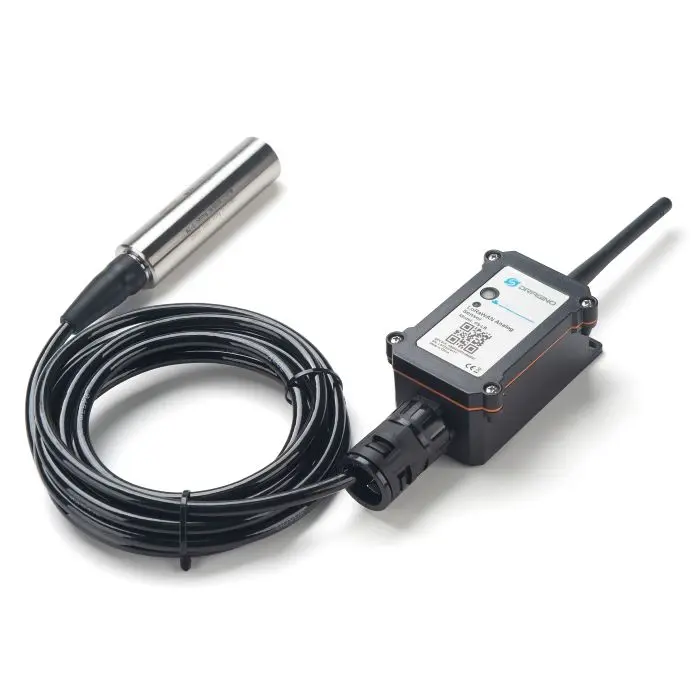

Dragino PS-LB-I200 is an immersion-type LoRaWAN® pressure sensor designed for remote water and liquid pressure and level monitoring in tanks, reservoirs, borewells and water-management applications. It belongs to Dragino’s PS-LB/LS pressure-sensor family, which supports immersion pressure probes for submerged water and liquid measurement and transmits the collected data to a LoRaWAN IoT server. The PS-LB-I200 supports LoRaWAN 1.0.3 Class A communication, Bluetooth configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by an 8500mAh Li-SOCl2 battery and available with IN865 frequency support, it is suitable for long-term wireless water-pressure and liquid-level monitoring deployments in India.

₹ 112,934.00 112934.0 INR ₹ 112,934.00

₹ 112,934.00

Not Available For Sale

(₹ 0.00 / UNIT)
5 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Designed for water, liquid, air & gas pressure monitoring
  • Thread installation type & immersion type variants
  • Multiple pressure ranges available
  • Ultra-long range LoRa communication
  • High interference immunity
  • Supports IN865  band
  • 8500mAh Li-SOCI2 battery (PS-LB)
  • Solar panel + 3000mAh Li-ion battery option (PS-LS)
  • Bluetooth v5.1 configuration
  • Wireless OTA firmware update
  • Periodic uplink with configurable downlink
  • Battery level monitoring

Microcontroller

  • 48MHz ARM MCU
  • 256KB Flash
  • 64KB RAM

Electrical Characteristics

  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature: -40°C to +85°C

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • IN865 supported for India
  • Max RF Output: +22 dBm
  • RX Sensitivity: up to -139 dBm
  • Excellent blocking immunity

Current Input Measuring

  • Range: 0 ~ 20mA
  • Accuracy: 0.02mA
  • Resolution: 0.001mA

Voltage Input Measuring

  • Range: 0 ~ 30V
  • Accuracy: 0.02V
  • Resolution: 0.001V

Battery & Power

  • 8500mAh Li/SOCI2 battery
  • Self-discharge: <1% per year @25°C
  • Max continuous current: 130mA
  • Sleep Mode: 5µA @ 3.3V
  • Transmit Mode: 125mA @ 20dBm
  • Designed for up to 5 years operation

The Dragino PS-LB-I200 LoRaWAN® Pressure Sensor is ideal for:

  • Industrial automation systems
  • Commercial infrastructure monitoring
  • Water tank and reservoir pressure monitoring
  • Borewell and groundwater systems
  • Cold chain liquid pressure control
  • Manufacturing process monitoring
  • Utilities and municipal water networks
  • Smart infrastructure and city projects
  • Campuses and institutional facilities

You can purchase the genuine Dragino PS-LB-I200 LoRaWAN® Water / Liquid Pressure Sensor from AIoTkart®, the authorized Dragino distributor in India offering PAN-India delivery and institutional support.

Yes, the PS-LB-I200 supports IN865 frequency band, making it fully compatible with LoRaWAN® networks deployed across India for industrial water and liquid pressure monitoring.

The PS-LB variant is powered by an 8500mAh Li-SOCI2 battery and is designed for long-term operation up to 5 years depending on data transmission intervals and configuration.

Documents

User Manual
Download

PS-LB_Datasheet

Download

PS-LB_Firmware

Download
