Dragino PS-LB-I250 LoRaWAN Water & Liquid Pressure Sensor

Price:

₹ 149,867.00
  2. Shop
  3. Dragino PS-LB-I250 LoRaWAN Water & Liquid Pressure Sensor
Dragino PS-LB-I200 LoRaWAN Water & Liquid Pressure Sensor
Dragino PS-LB-I200 LoRaWAN Water & Liquid Pressure Sensor
₹ 112,934.00
₹ 112,934.00
Dragino PS-LB-I300 LoRaWAN Water & Liquid Pressure Sensor
Dragino PS-LB-I300 LoRaWAN Water & Liquid Pressure Sensor
₹ 176,534.00
₹ 176,534.00

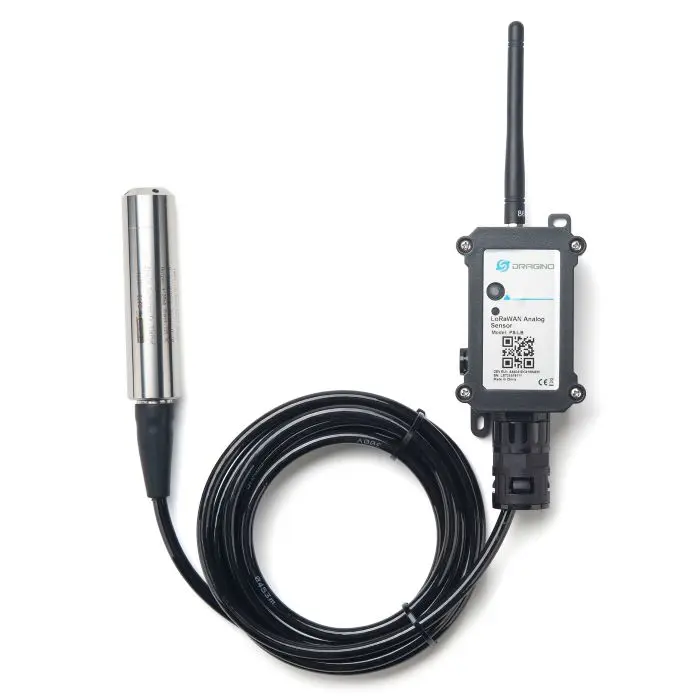

Dragino PS-LB-I250 LoRaWAN Water & Liquid Pressure Sensor

https://www.aiotkart.com/web/image/product.template/17734/image_1920?unique=0f7448e

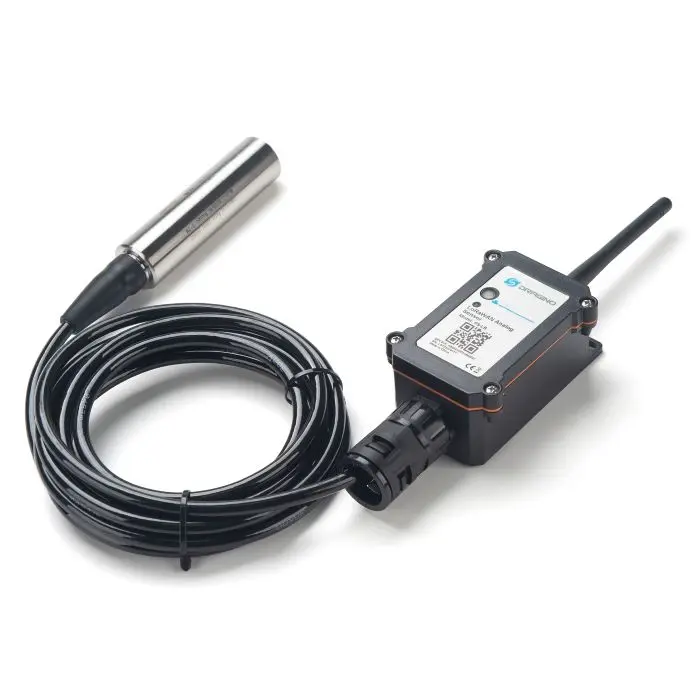

Dragino PS-LB-I250 is an immersion-type LoRaWAN® pressure sensor designed for remote water and liquid pressure and level monitoring in reservoirs, borewells, tanks and water-management systems. The I250 configuration uses a 250-meter immersion probe cable, allowing the transmitter to be installed a considerable distance from the submerged sensing point. The PS-LB series supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration, periodic uplinks and wireless OTA firmware updates. Powered by an 8500mAh Li-SOCl2 battery and available with IN865 frequency support, the PS-LB-I250 is suitable for long-distance immersion pressure-monitoring deployments in India.

₹ 149,867.00 149867.0 INR ₹ 149,867.00

₹ 149,867.00

Not Available For Sale

(₹ 0.00 / UNIT)
9 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Measures water, liquid, air & gas pressure
  • Thread installation type & immersion type options
  • Multiple pressure range variants available
  • Ultra-long range LoRa wireless communication
  • High interference immunity
  • Supports IN865  band
  • 8500mAh Li-SOCI2 battery (PS-LB)
  • Solar panel + 3000mAh Li-ion battery option (PS-LS)
  • Bluetooth v5.1 for configuration
  • Wireless OTA firmware updates
  • Periodic uplink with configurable downlink
  • Battery level monitoring

Microcontroller

  • 48MHz ARM MCU
  • 256KB Flash
  • 64KB RAM

Electrical Characteristics

  • Supply Voltage: 2.5V ~ 3.6V
  • Operating Temperature: -40°C to +85°C

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • IN865 supported for India
  • Max RF Output: +22 dBm
  • RX Sensitivity: down to -139 dBm
  • Excellent blocking immunity

Current Input Measuring

  • Range: 0 ~ 20mA
  • Accuracy: 0.02mA
  • Resolution: 0.001mA

Voltage Input Measuring

  • Range: 0 ~ 30V
  • Accuracy: 0.02V
  • Resolution: 0.001V

Battery & Power

  • 8500mAh Li/SOCI2 battery
  • Self-discharge: <1% per year @25°C
  • Max continuous current: 130mA
  • Sleep Mode: 5µA @ 3.3V
  • LoRa Transmit Mode: 125mA @ 20dBm
  • Designed for up to 5 years operation

The Dragino PS-LB-I250 LoRaWAN® Pressure Sensor is suitable for:

  • Industrial automation systems
  • Commercial infrastructure monitoring
  • Water tank and reservoir pressure monitoring
  • Borewell and groundwater systems
  • Cold chain liquid pressure control
  • Manufacturing process industries
  • Utilities and municipal water supply networks
  • Smart city infrastructure projects
  • Campuses and institutional facilities

You can purchase the genuine Dragino PS-LB-I250 LoRaWAN® Water / Liquid Pressure Sensor from AIoTkart®, the authorized Dragino distributor in India offering PAN-India delivery and project support.

Yes, the PS-LB-I250 supports the IN865 frequency band, making it suitable for LoRaWAN® deployments across India for industrial water and liquid pressure monitoring applications.

The PS-LB variant operates on an 8500mAh Li-SOCI2 battery for long-term deployment, while the PS-LS version includes a solar panel with a 3000mAh Li-ion battery for outdoor installations.

Documents

User Manual
Download

PS-LB_Datasheet

Download

PS-LB_Firmware

Download
