Dragino PS-LB-I150 LoRaWAN Water & Liquid Pressure Sensor

https://www.aiotkart.com/web/image/product.template/17732/image_1920?unique=970a4a4

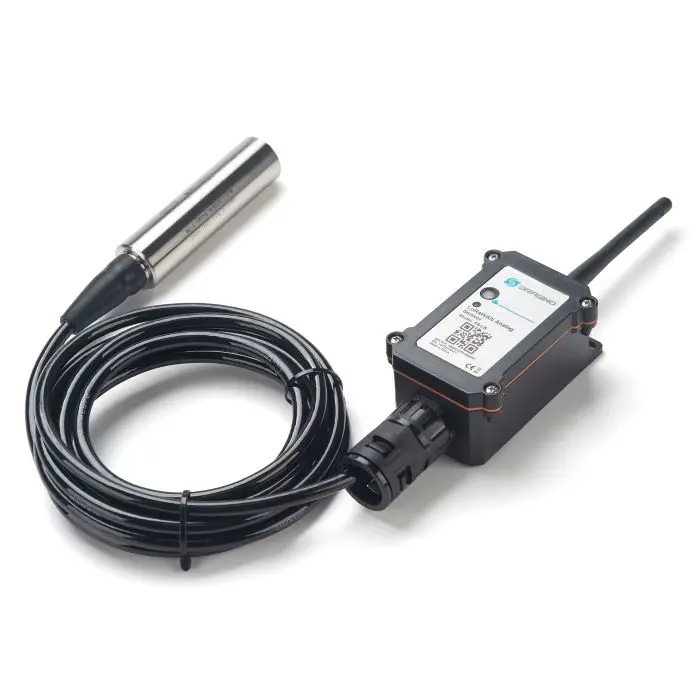

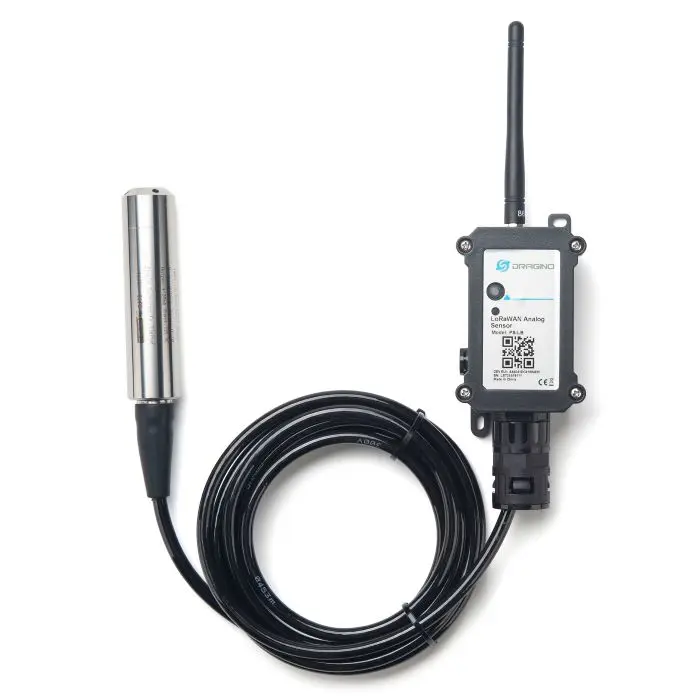

Dragino PS-LB-I150 is an immersion-type LoRaWAN® pressure sensor designed for remote water and liquid pressure monitoring and liquid-level measurement in tanks, reservoirs, borewells and water-management systems. It belongs to Dragino’s PS-LB/LS pressure sensor family and converts the connected immersion pressure probe measurement into data for transmission to a LoRaWAN IoT server. The PS-LB-I150 supports LoRaWAN 1.0.3 Class A communication, Bluetooth configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by an 8500mAh Li-SOCl2 battery and available with IN865 frequency support, it is suitable for long-term wireless water-pressure and liquid-level monitoring deployments in India.

₹ 88,490.00 88490.0 INR ₹ 88,490.00

₹ 88,490.00

Not Available For Sale

(₹ 0.00 / UNIT)
8 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Designed for water, liquid, air & gas pressure monitoring
  • Thread installation type & immersion type variants
  • Multiple pressure ranges available
  • Ultra-low power consumption for long-term field use
  • Supports IN865 band
  • 8500mAh Li-SOCI2 battery (PS-LB)
  • Solar + 3000mAh Li-ion battery option (PS-LS)
  • Bluetooth v5.1 configuration support
  • Wireless OTA firmware update
  • Periodic uplink with configurable downlink
  • High RF output up to +22 dBm
  • Battery level monitoring

Microcontroller

  • 48MHz ARM MCU
  • 256KB Flash
  • 64KB RAM

Electrical Characteristics

  • Supply Voltage: 2.5V ~ 3.6V (Built-in Battery)
  • Operating Temperature: -40°C to +85°C

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • IN865 supported for India
  • Max RF Output: +22 dBm
  • RX Sensitivity: up to -139 dBm
  • Excellent blocking immunity

Current Input Measuring

  • Range: 0 ~ 20mA
  • Accuracy: 0.02mA
  • Resolution: 0.001mA

Voltage Input Measuring

  • Range: 0 ~ 30V
  • Accuracy: 0.02V
  • Resolution: 0.001V

Battery & Power

  • 8500mAh Li/SOCI2 battery
  • Self-discharge: <1% per year @25°C
  • Max continuous current: 130mA
  • Sleep Mode: 5µA @ 3.3V
  • Transmit Mode: 125mA @ 20dBm
  • Designed for up to 5 years operation

The Dragino PS-LB-I150 LoRaWAN® Pressure Sensor is suitable for:

  • Industrial automation systems
  • Commercial infrastructure monitoring
  • Water tank and reservoir pressure monitoring
  • Borewell and groundwater systems
  • Cold chain liquid pressure control
  • Manufacturing process industries
  • Utilities and municipal water networks
  • Smart city infrastructure
  • Campuses and institutional facilities

You can buy the genuine Dragino PS-LB-I150 LoRaWAN® Water / Liquid Pressure Sensor from AIoTkart®, the authorized Dragino distributor in India offering PAN-India delivery and institutional support.

Yes, the PS-LB-I150 supports multiple frequency bands including IN865, making it fully compatible with LoRaWAN® deployments across India for industrial water and liquid pressure monitoring.

The PS-LB variant is powered by an 8500mAh Li-SOCI2 battery for long-term deployment, while the PS-LS variant includes a solar panel with a 3000mAh Li-ion battery for extended outdoor installations.

Documents

User Manual
Download

PS-LB_Datasheet

Download

PS-LB_Firmware

Download
