Dragino PS-LB-I100 LoRaWAN Water & Liquid Pressure Sensor

https://www.aiotkart.com/web/image/product.template/17731/image_1920?unique=d85f8d3

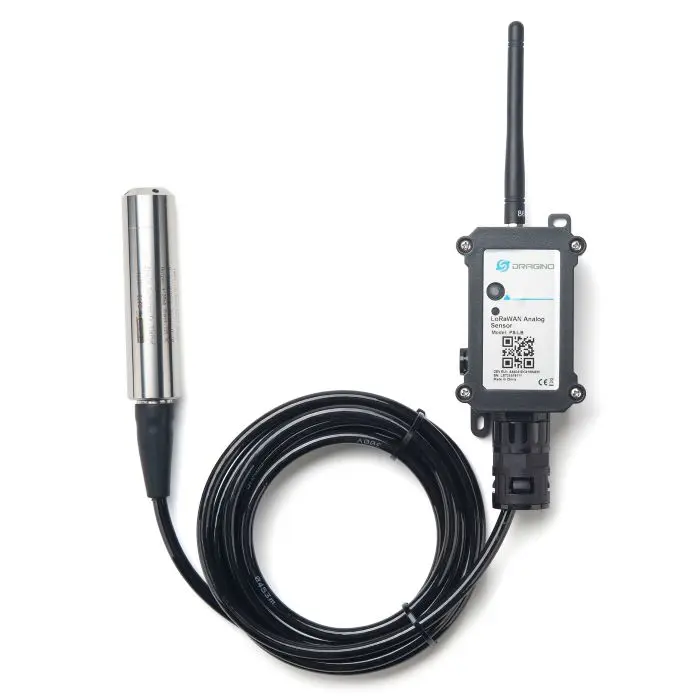

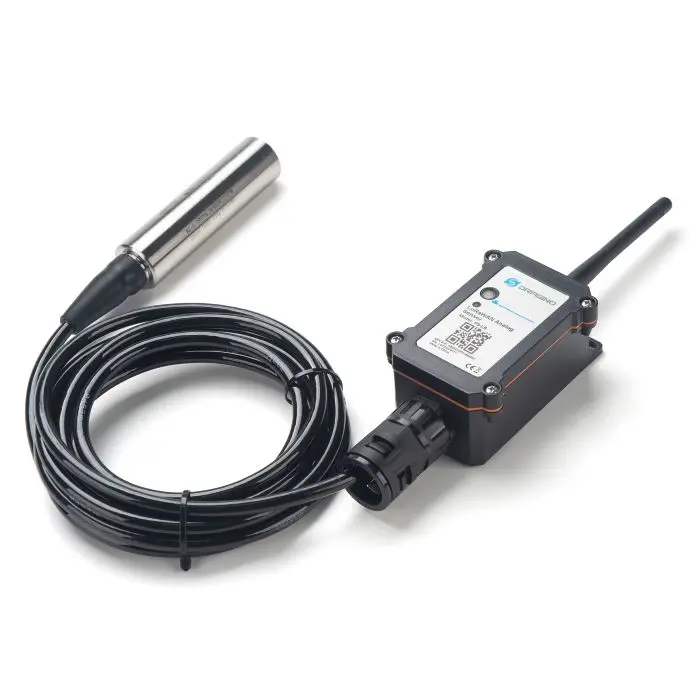

Dragino PS-LB-I100 is an immersion-type LoRaWAN® pressure sensor designed for remote water and liquid pressure and level monitoring in tanks, reservoirs, borewells and other water-management applications. The I100 variant uses a long-range immersion probe configuration supporting up to 100 meters of water-depth measurement, while the IP68 pressure probe is constructed from 316 stainless steel for submerged installation. The PS-LB-I100 supports LoRaWAN 1.0.3 Class A communication, Bluetooth 5.1 configuration, LoRaWAN remote configuration, periodic uplinks and wireless OTA firmware updates. Powered by an 8500mAh Li-SOCl2 battery and available with IN865 frequency support, it is suitable for long-term remote water-pressure and level-monitoring deployments in India.

₹ 58,222.00 58222.0 INR ₹ 58,222.00

₹ 58,222.00

Not Available For Sale

(₹ 0.00 / UNIT)
4 people are viewing this right now

This combination does not exist.

Contact Us

  • LoRaWAN® 1.0.3 Class A compliant
  • Designed for water, liquid, air & gas pressure monitoring
  • Thread installation & immersion type variants available
  • Ultra-low power consumption for long-term deployment
  • Supports IN865 band
  • 8500mAh Li-SOCI2 battery (PS-LB) up to 5 years operation
  • Solar + Li-ion battery option (PS-LS)
  • Bluetooth v5.1 configuration support
  • Wireless OTA firmware updates
  • Periodic uplink with configurable downlink
  • High interference immunity with long-range communication
  • Battery level monitoring

Microcontroller

  • 48MHz ARM MCU
  • 256KB Flash
  • 64KB RAM

Electrical Characteristics

  • Supply Voltage: 2.5V ~ 3.6V (Built-in Battery)
  • Operating Temperature: -40°C to +85°C

LoRa Specifications

  • Frequency Range: 862 ~ 1020 MHz
  • IN865 supported for India
  • Max RF Output: +22 dBm
  • RX Sensitivity: up to -139 dBm
  • Excellent blocking immunity

Current Input Measuring

  • Range: 0 ~ 20mA
  • Accuracy: 0.02mA
  • Resolution: 0.001mA

Voltage Input Measuring

  • Range: 0 ~ 30V
  • Accuracy: 0.02V
  • Resolution: 0.001V

Battery & Power

  • 8500mAh Li/SOCI2 battery
  • Self-discharge: <1% per year @25°C
  • Sleep Mode: 5µA @ 3.3V
  • Transmit Mode: 125mA @ 20dBm
  • Designed for up to 5 years field use

The Dragino PS-LB-I100 LoRaWAN® Pressure Sensor is suitable for:

  • Industrial automation systems
  • Commercial infrastructure monitoring
  • Water tank and reservoir monitoring
  • Borewell and groundwater pressure systems
  • Cold chain liquid pressure control
  • Manufacturing process monitoring
  • Utilities and municipal water systems
  • Smart infrastructure projects
  • Campuses and institutional facilities

You can purchase the genuine Dragino PS-LB-I100 LoRaWAN® Water / Liquid Pressure Sensor directly from AIoTkart®, the authorized Dragino distributor in India with PAN-India shipping and institutional supply support.

Yes. The PS-LB-I100 supports multiple global frequency bands including IN865, making it suitable for LoRaWAN® deployments across India for industrial water pressure and liquid monitoring applications.

The PS-LB variant uses an 8500mAh Li-SOCI2 battery and is designed for long-term field deployment with up to 5 years of operation depending on transmission configuration.

Documents

User Manual
Download

PS-LB_Datasheet

Download

PS-LB_Firmware

Download
