Dragino PS-LB-D04 LoRaWAN Differential Pressure Sensor

Price:

₹ 14,695.00
  2. Shop
  3. Dragino PS-LB-D04 LoRaWAN Differential Pressure Sensor
Dragino PS-LB-D01 LoRaWAN Differential Pressure Sensor
Dragino PS-LB-D01 LoRaWAN Differential Pressure Sensor
₹ 14,695.00
₹ 14,695.00
Dragino PS-LB-D09 LoRaWAN Differential Pressure Sensor
Dragino PS-LB-D09 LoRaWAN Differential Pressure Sensor
₹ 14,695.00
₹ 14,695.00

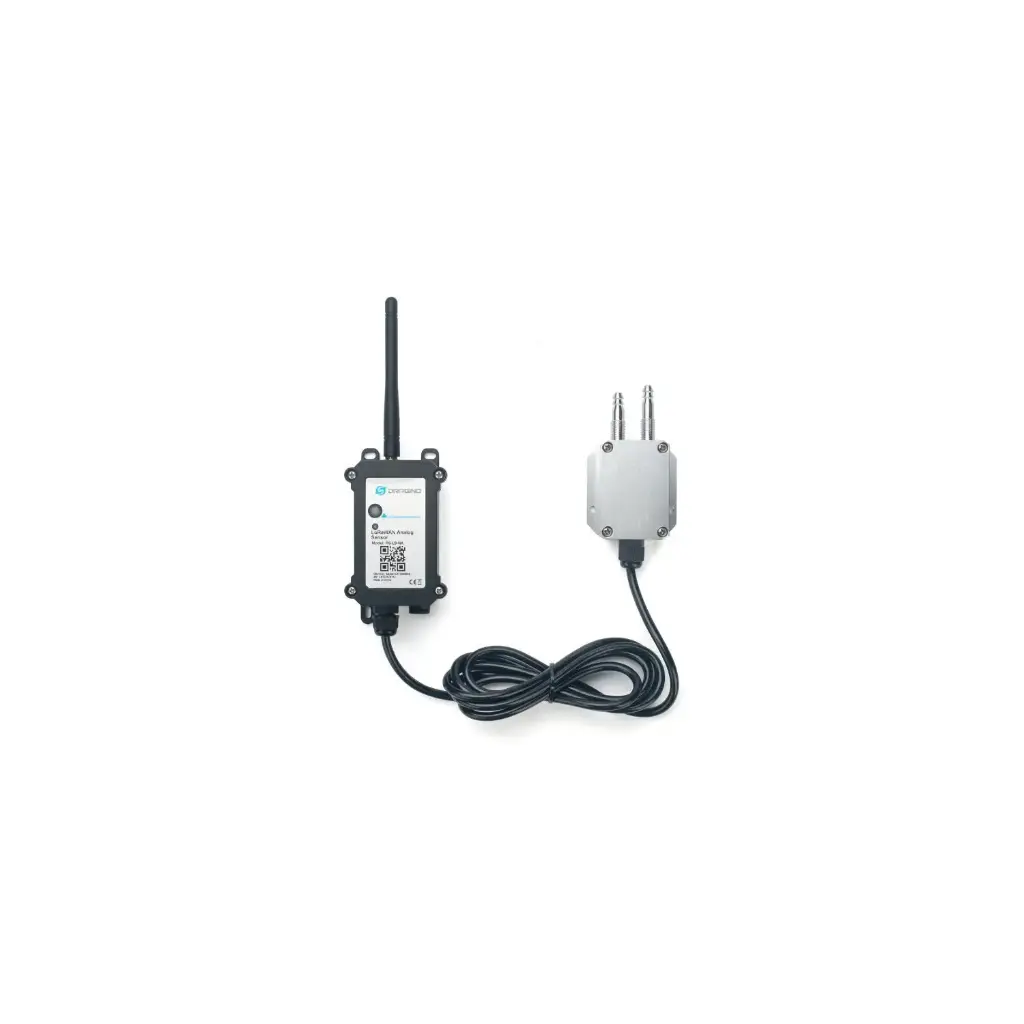

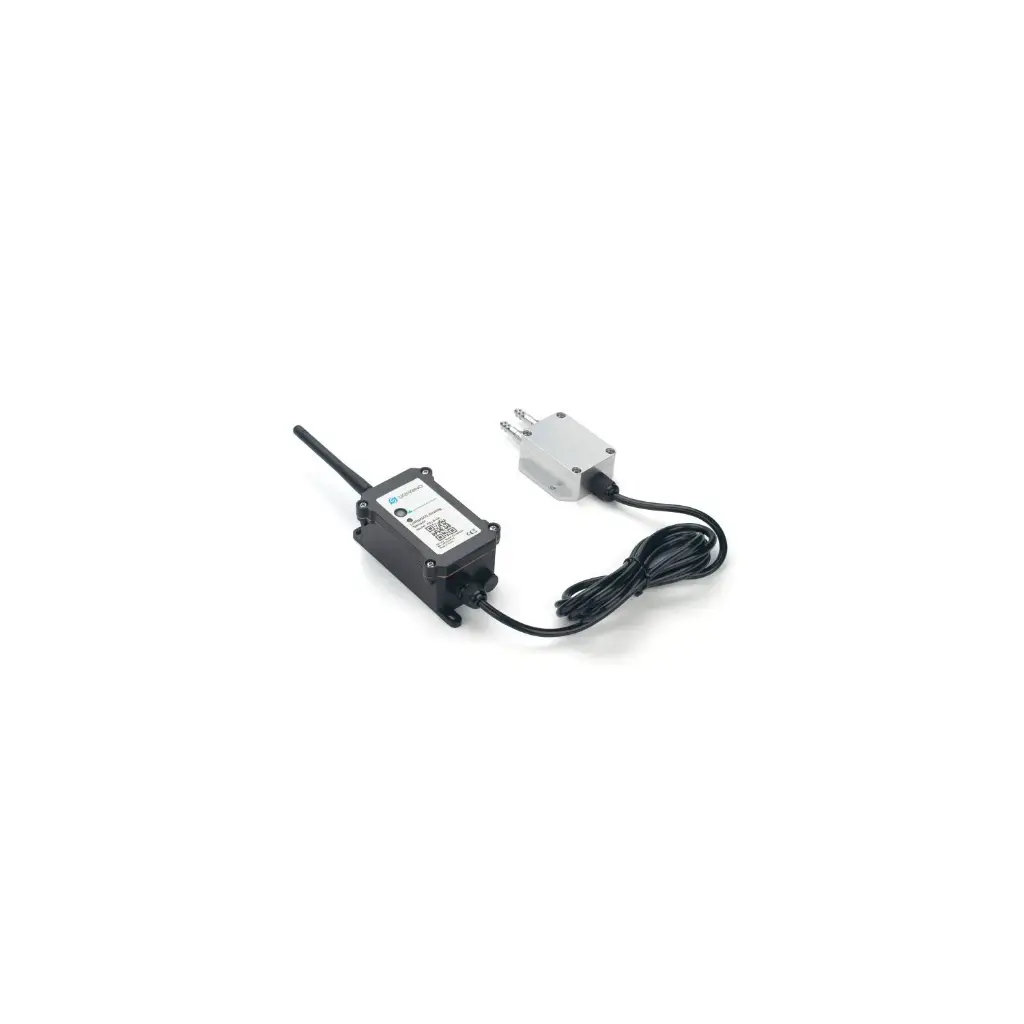

Dragino PS-LB-D04 LoRaWAN Differential Pressure Sensor

https://www.aiotkart.com/web/image/product.template/17729/image_1920?unique=041a385

Dragino PS-LB-D04 is a LoRaWAN® differential pressure sensor designed to measure the pressure difference between two air-pressure inputs for HVAC, indoor air and industrial monitoring applications. The D04 variant provides a 0–1 kPa differential pressure measurement range and is suitable for applications such as filter-clogging detection and indoor air-pressure monitoring. The PS-LB-D04 supports LoRaWAN 1.0.3 Class A communication, periodic or alarm-based uplinks, Bluetooth 5.1 configuration, LoRaWAN remote configuration and wireless OTA firmware updates. Powered by an 8500mAh Li-SOCl2 battery and available with IN865 frequency support, it is suitable for long-term wireless differential-pressure monitoring deployments in India.

₹ 14,695.00 14695.0 INR ₹ 14,695.00

₹ 14,695.00

Not Available For Sale

(₹ 0.00 / UNIT)
3 people are viewing this right now

This combination does not exist.

Contact Us

  • Dragino PS-LB-D04 LoRaWAN® Differential Pressure Sensor
  • Measures pressure difference between two air inputs
  • LoRaWAN 1.0.3 Class A compliant
  • Differential pressure range from -100Pa to 100KPa
  • Ultra-low power consumption for long-term deployment
  • 8500mAh Li/SOCl2 battery powered (PS-LB-D series)
  • Solar + 3000mAh Li-ion option available (PS-LS-D series)
  • Bluetooth v5.1 configuration support
  • Remote configuration via LoRaWAN® downlink
  • Wireless OTA firmware updates
  • Periodic or alarm-based uplink transmission
  • Battery level monitoring
  • Supports IN865 band for India
  • Model: Dragino PS-LB-D04
  • Product Type: LoRaWAN® Differential Pressure Sensor
  • LoRaWAN® Version: 1.0.3 Class A
  • Frequency Bands: IN865
  • Microcontroller:
    • 48MHz ARM MCU
    • 256KB Flash
    • 64KB RAM
  • Differential Pressure Range:
    • -100Pa to 100KPa (model dependent)
  • Current Input Measuring:
    • Range: 0 ~ 20mA
    • Accuracy: 0.02mA
    • Resolution: 0.001mA
  • Voltage Input Measuring:
    • Range: 0 ~ 30V
    • Accuracy: 0.02V
    • Resolution: 0.001V
  • Battery:
    • 8500mAh Li/SOCl2 battery
    • Self-discharge <1% per year @ 25°C
    • Max continuous current: 130mA
  • Operating Temperature: -40°C to 85°C
  • Sleep Mode Consumption: 5uA @ 3.3V
  • Transmit Consumption: 125mA @ 20dBm

The Dragino PS-LB-D04 Differential Pressure Sensor is widely used in India for:

  • Industrial automation and process monitoring
  • Commercial HVAC and air handling systems
  • Indoor air control applications
  • Filter clogging detection in ventilation systems
  • Water systems and pump pressure monitoring
  • Cold chain storage and environmental control rooms
  • Manufacturing plants and process industries
  • Utilities and infrastructure monitoring
  • Campuses, hospitals, and institutional facilities

You can purchase the genuine Dragino PS-LB-D04 LoRaWAN® Differential Pressure Sensor from AIoTkart®, the Authorized Dragino Distributor in India, with PAN-India delivery and bulk order support.

Yes, the PS-LB-D04 supports the IN865 frequency band used for LoRaWAN® deployments in India. It integrates with both private and public LoRaWAN® gateways for long-range monitoring.

Differential pressure sensors are used in HVAC systems, industrial automation, water systems, utilities, manufacturing plants, and institutional buildings to detect blockages, airflow imbalance, and pressure variations.

Documents

User Manual
Download

PS-LB-D_Datasheet

Download

PS-LB-D_Firmware

Download
